Cooling System Pipes And Hoses (Engine Cooling System) (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Engine Cooling System) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR100794 HOSE - WATER Enquire To Order
LR125200 HOSE - WATER Enquire To Order
LR143443 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100817 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR100834 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR108588 HOSE - OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR106823 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR100081 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR108580 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100824 HOSE - WATER Enquire To Order
LR143442 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100826 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100553 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR110245 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100552 HOSE - COOLANT BLEED Enquire To Order
LR138370 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR100554 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR100829 HOSE - WATER Enquire To Order
View All

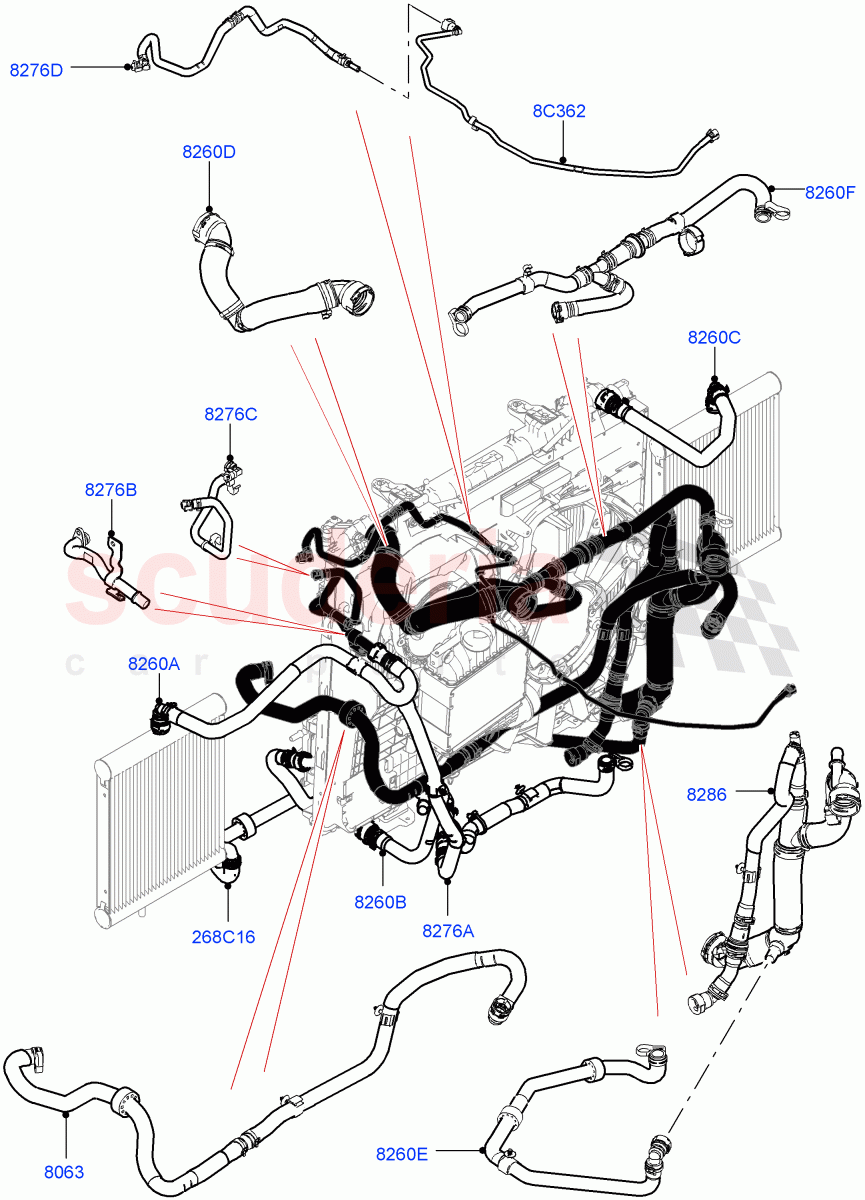

Cooling System Pipes And Hoses (Engine Cooling System) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
8C362 LR100554
HOSE - COOLANT BLEED
From Engine To Expansion Tank / From: JA000001 		- 1 Enquire
268C16 LR100829
HOSE - WATER
LH, Auxiliary Radiator / From: JA000001 		- 1 Enquire
8063 LR100794
HOSE - WATER
From Engine To Expansion Tank / From: JA000001 / To: KA540575 		- 1 Enquire
8063 LR125200
HOSE - WATER
From Engine To Expansion Tank / From: KA540576 / To: MA416603 		- 1 Enquire
8063 LR143443
HOSE - WATER
From Engine To Expansion Tank / From: MA416604 		- 1 Enquire
8260A LR100834
HOSE - WATER
LH, Auxiliary Radiator, Feed / From: JA000001 		- 1 Enquire
8260B LR108588
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: JA000001 		- 1 Enquire
8260C LR106823
HOSE - RADIATOR
RH, Auxiliary Radiator, Feed / From: JA000001 		- 1 Enquire
8260D LR100081
HOSE - RADIATOR
Radiator, Top / From: JA000001 		- 1 Enquire
8260E LR108580
HOSE - WATER
RH, Auxiliary Radiator, Outlet / From: JA000001 		- 1 Enquire
8260F LR100824
HOSE - WATER
Intercooler Outlet / From: JA000001 / To: MA416927 		- 1 Enquire
8260F LR143442
HOSE - WATER
Intercooler Outlet / From: MA416928 		- 1 Enquire
8276A LR100826
HOSE - WATER
Intercooler Inlet / From: JA000001 		- 1 Enquire
8276B LR100553
HOSE - WATER
Water Charge Air Cooler / From: JA000001 		- 1 Enquire
8276C LR110245
HOSE - WATER
Radiator Degas Line / From: JA000001 		- 1 Enquire
8276D LR100552
HOSE - COOLANT BLEED
To Expansion Tank / From: JA000001 / To: LA586392 		- 1 Enquire
8276D LR138370
HOSE - COOLANT BLEED
To Expansion Tank / From: LA586393 		- 1 Enquire
8286 LR100817
HOSE - RADIATOR
Lower / From: JA000001 		- 1 Enquire
