Fuel Pump And Sender Unit (5.0L P Aj133 Dohc Cda S/C Enhanced) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Pump And Sender Unit (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR066438 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR117476 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR082729 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR187425 CONTROL - FUEL PUMP DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR123395 SENDER AND PUMP Enquire To Order
LR117840 SENDER AND PUMP Enquire To Order
View All

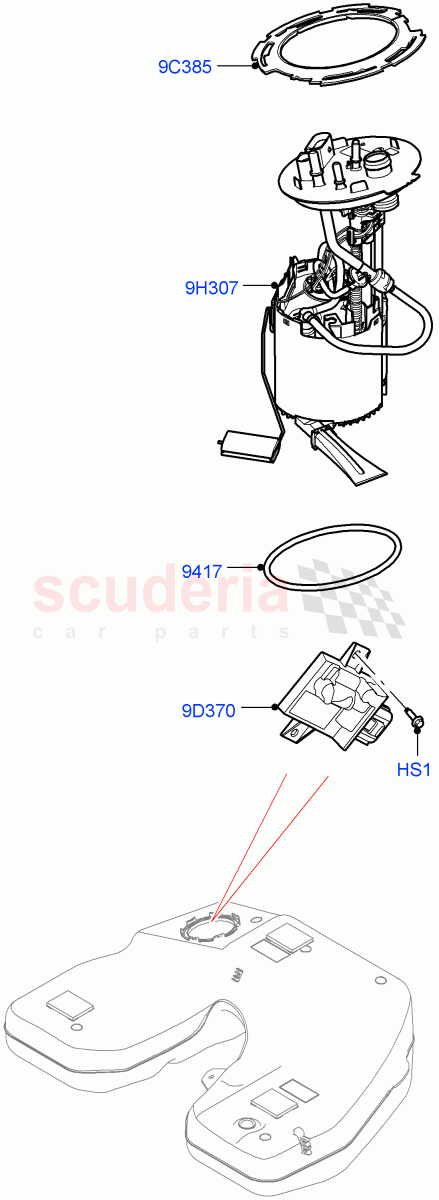

Fuel Pump And Sender Unit (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR066438
SCREW
Hexagonal Head, M6 X 20MM / From: KA000001 		- 2 Enquire
9C385 LR082729
RING - RETAINING
From: KA000001 		- 1 Enquire
9D370 LR187425
CONTROL - FUEL PUMP DRIVE
From: KA000001 		- 1 Enquire
9H307 LR123395
SENDER AND PUMP
Petrol Tank With Leak Detection / From: KA000001 		- 1 Enquire
9H307 LR117840
SENDER AND PUMP
Fuel Tank-Petrol W/O Leak Detection / From: KA000001 		- 1 Enquire
9417 LR117476
GASKET
O-Ring / From: KA000001 		- 1 Enquire
