Fuel Injectors And Pipes (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Injectors And Pipes (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)

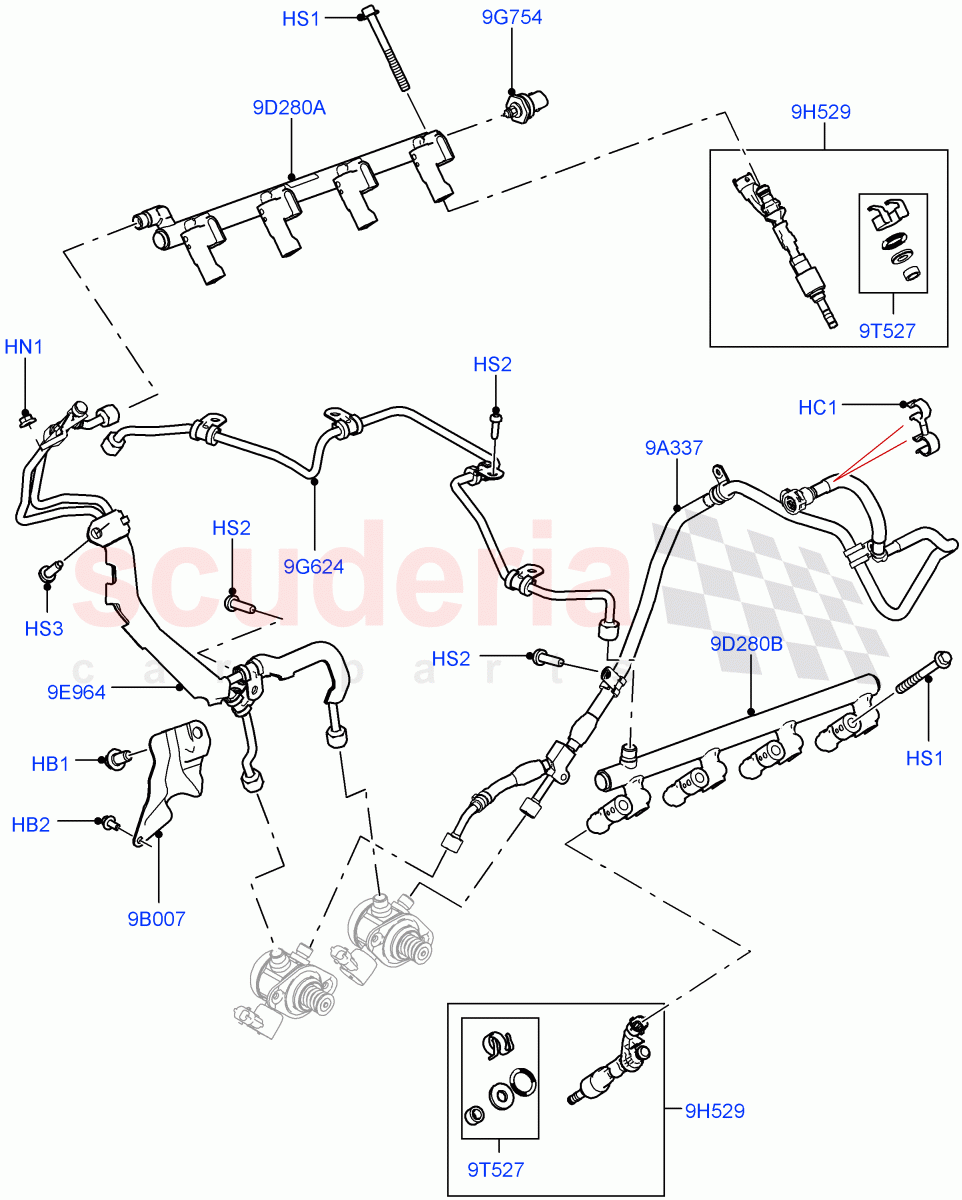

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012779	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106122	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054833	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN105042	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030807	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113343	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012782	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR065487	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088579	TUBE - FUEL CROSSOVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105590	KIT - FUEL INJECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037089	KIT - INJECTOR REFIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077733	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077734	MANIFOLD - FUEL SUPPLY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR012779	BOLT	LR012779 BOLT M10 X 20MM / From: KA000001	-	1	Enquire
HB2	FS106122	BOLT	FS106122 BOLT Cover, M6 x 12MM / From: KA000001	-	1	Enquire
HC1	LR054833	CLIP	LR054833 CLIP Breather Pipe, For Fuel Tube / From: KA000001	-	1	Enquire
HN1	FN105042	NUT - HEX. - FLANGED	FN105042 NUT - HEX. - FLANGED M5 / From: KA000001	-	1	Enquire
HS1	LR011274	SCREW	LR011274 SCREW Fuel Rail / From: KA000001	-	8	Enquire
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: KA000001	-	7	Enquire
HS3	LR030807	SCREW	LR030807 SCREW M8 X 25MM, Torx / From: KA000001	-	1	Enquire
9A337	LR113343	PIPE - FUEL	LR113343 PIPE - FUEL Pump Feed / From: KA000001	-	1	Enquire
9B007	LR012782	SHIELD - FUEL TUBES	LR012782 SHIELD - FUEL TUBES Fuel Lines To Fuel Rail / From: KA000001	-	1	Enquire
9D280A	LR077733	MANIFOLD - FUEL SUPPLY	LR077733 MANIFOLD - FUEL SUPPLY RH / From: KA000001	-	1	Enquire
9D280B	LR077734	MANIFOLD - FUEL SUPPLY	LR077734 MANIFOLD - FUEL SUPPLY LH / From: KA000001	-	1	Enquire
9E964	LR065487	PIPE - FUEL	LR065487 PIPE - FUEL Fuel Pump, High Pressure, To Fuel Rail / From: KA000001	-	1	Enquire
9G624	LR088579	TUBE - FUEL CROSSOVER	LR088579 TUBE - FUEL CROSSOVER High Pressure, To Fuel Rail / From: KA000001	-	1	Enquire
9G754	LR108241	SENSOR - FUEL PRESSURE/TEMPERATURE	LR108241 SENSOR - FUEL PRESSURE/TEMPERATURE From: KA000001	-	1	Enquire
9H529	LR105590	KIT - FUEL INJECTION	LR105590 KIT - FUEL INJECTION Injector Assembly, Kit For 1 Cylinder / From: KA000001	-	8	Enquire
9T527	LR037089	KIT - INJECTOR REFIT	LR037089 KIT - INJECTOR REFIT Includes Oring, Teflon Seal, Retainer / From: KA000001	-	8	Enquire
