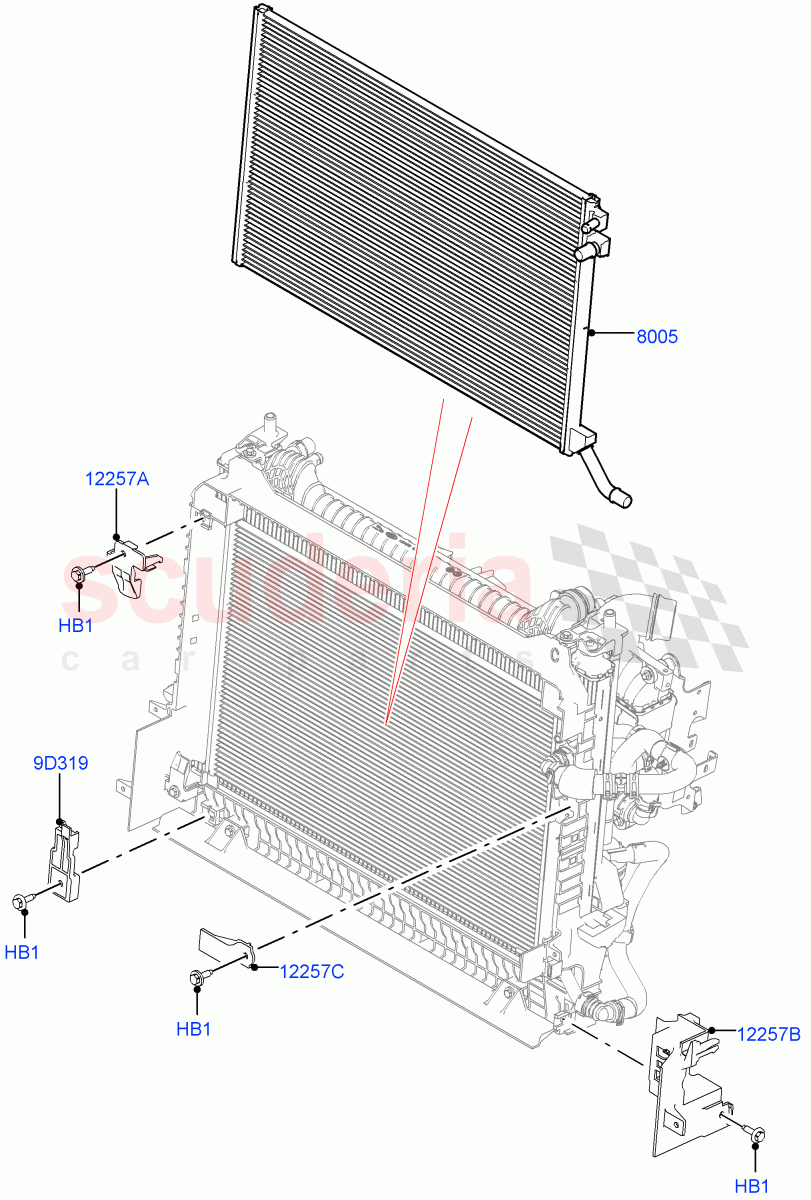

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105631	BOLT AND WASHER - HEX.HEAD	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092812	RADIATOR - WATER CHARGE AIR COOLER	$340.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092464	BRACKET - CONDENSER SUPPORT	$20.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092457	BRACKET - CONDENSER SUPPORT	$16.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092456	BRACKET - CONDENSER SUPPORT	$38.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092459	BRACKET - CONDENSER SUPPORT	$17.63	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR105631	BOLT AND WASHER - HEX.HEAD	LR105631 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 / From: KA000001	$2.07	4
9D319	LR092464	BRACKET - CONDENSER SUPPORT	LR092464 BRACKET - CONDENSER SUPPORT RH Lower / From: KA000001	$20.67	1
8005	LR092812	RADIATOR - WATER CHARGE AIR COOLER	LR092812 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler / From: KA000001	$340.99	1
12257A	LR092457	BRACKET - CONDENSER SUPPORT	LR092457 BRACKET - CONDENSER SUPPORT RH Upper / From: KA000001	$16.32	1
12257B	LR092456	BRACKET - CONDENSER SUPPORT	LR092456 BRACKET - CONDENSER SUPPORT LH Lower / From: KA000001	$38.08	1
12257C	LR092459	BRACKET - CONDENSER SUPPORT	LR092459 BRACKET - CONDENSER SUPPORT LH Upper / From: KA000001	$17.63	1
