Radiator/Coolant Overflow Container (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Velar (2017+) [5.0 OHC SGDI SC V8 Petrol] - Radiator/Coolant Overflow Container (5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMKA000001)

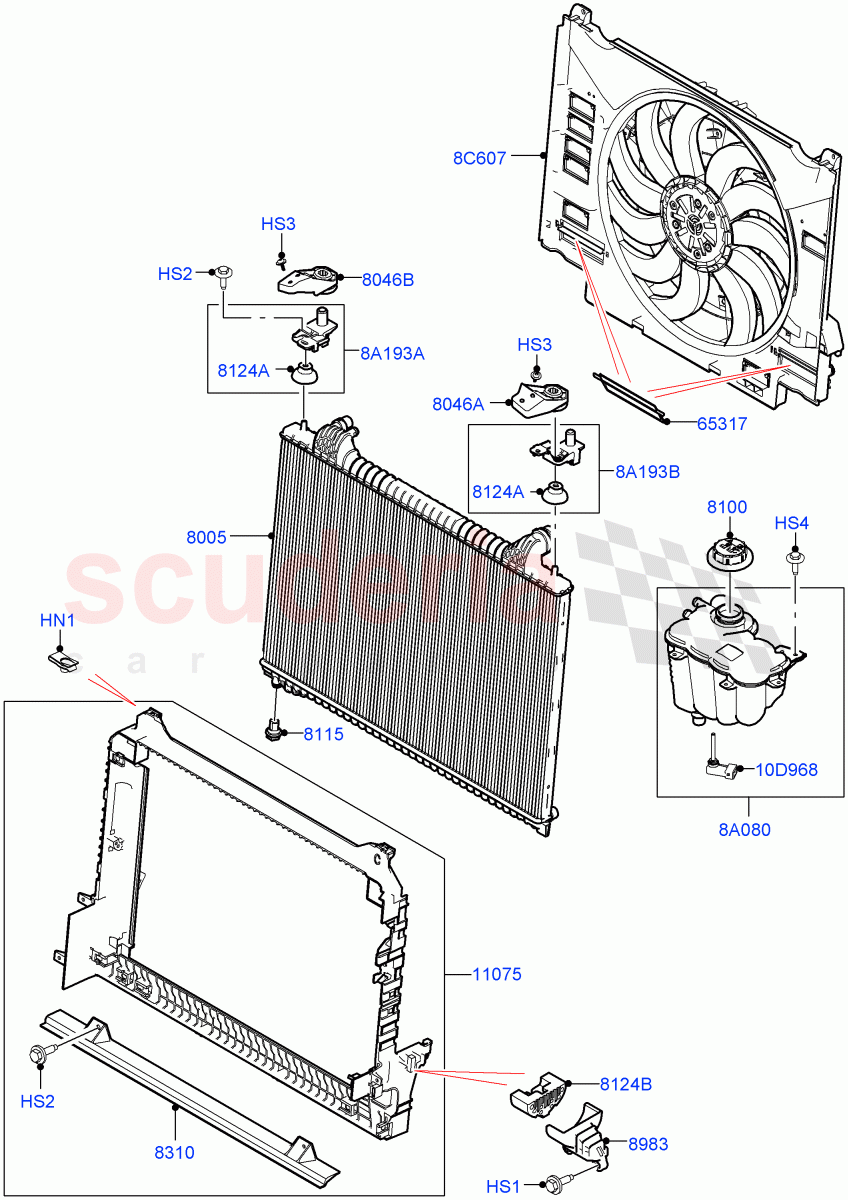

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090381	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033401	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092460	RADIATOR - MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176861	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166141	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092462	DEFLECTOR - AIR - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092118	BRACKET - HOUSING MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094854	FRAME - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116278	FLAP - RADIATOR SHROUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092122	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092123	BRACKET - RADIATOR UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092117	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092467	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091767	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116200	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR137842	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092465	BRACKET - CONDENSER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108949	BRACKET - RADIATOR UPPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: KA000001	-	9	Enquire
HS1	FS106206	SCREW	FS106206 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: KA000001	-	4	Enquire
HS2	LR090381	SCREW AND WASHER	LR090381 SCREW AND WASHER Hexagonal Head, M6 X 20MM / From: KA000001	-	4	Enquire
HS3	LR033401	SCREW AND WASHER	LR033401 SCREW AND WASHER M6 x 19MM / From: KA000001	-	4	Enquire
HS4	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Expansion Tank, Hexagonal Head, M6 X 20MM / From: KA000001	-	1	Enquire
8A080	LR091767	TANK - RADIATOR OVERFLOW	LR091767 TANK - RADIATOR OVERFLOW From: KA000001	-	1	Enquire
8A193A	LR092465	BRACKET - CONDENSER SUPPORT	LR092465 BRACKET - CONDENSER SUPPORT RH / From: KA000001	-	1	Enquire
8A193B	LR108949	BRACKET - RADIATOR UPPER	LR108949 BRACKET - RADIATOR UPPER LH / From: KA000001	-	1	Enquire
8C607	LR116200	MOTOR AND FAN - ENGINE COOLING	LR116200 MOTOR AND FAN - ENGINE COOLING From: KA000001 / To: LA255575	-	1	Enquire
8C607	LR137842	MOTOR AND FAN - ENGINE COOLING	LR137842 MOTOR AND FAN - ENGINE COOLING From: LA255576	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: KA000001	-	1	Enquire
8005	LR092460	RADIATOR - MAIN	LR092460 RADIATOR - MAIN From: KA000001	-	1	Enquire
8046A	LR092122	BRACKET - RADIATOR UPPER	LR092122 BRACKET - RADIATOR UPPER LH Upper / From: KA000001	-	1	Enquire
8046B	LR092123	BRACKET - RADIATOR UPPER	LR092123 BRACKET - RADIATOR UPPER RH Upper / From: KA000001	-	1	Enquire
8100	LR176861	CAP - OVERFLOW CONTAINER	LR176861 CAP - OVERFLOW CONTAINER From: KA000001	-	1	Enquire
8115	LR166141	PLUG - RADIATOR DRAIN	LR166141 PLUG - RADIATOR DRAIN From: KA000001	-	1	Enquire
8124A	LR092117	INSULATOR - RADIATOR MOUNTING	LR092117 INSULATOR - RADIATOR MOUNTING RH And LH, Upper	-	2	Enquire
8124B	LR092467	INSULATOR - RADIATOR SUPPORT	LR092467 INSULATOR - RADIATOR SUPPORT RH And LH / From: KA000001	-	2	Enquire
8310	LR092462	DEFLECTOR - AIR - RADIATOR	LR092462 DEFLECTOR - AIR - RADIATOR From: KA000001	-	1	Enquire
8983	LR092118	BRACKET - HOUSING MOUNTING	LR092118 BRACKET - HOUSING MOUNTING RH And LH / From: KA000001	-	2	Enquire
11075	LR094854	FRAME - RADIATOR SUPPORT	LR094854 FRAME - RADIATOR SUPPORT From: KA000001	-	1	Enquire
65317	LR116278	FLAP - RADIATOR SHROUD	LR116278 FLAP - RADIATOR SHROUD From: KA000001	-	2	Enquire
