View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073720	SCREW	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130401	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137659	INSULATOR - RADIATOR SUPPORT	$4.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121739	STUD - BALL	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124956	HOSE - AIR	$113.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093490	ACTUATOR - SUPERCHARGER BYPASS	$269.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR150067	INTERCOOLER	$590.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	$48.11	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR073720	SCREW	LR073720 SCREW Actuator, M6 X 20MM / From: MA000001	$1.53	3
HS2	LR130401	SCREW	LR130401 SCREW For Sensor, Hexagonal Head, M5 x 20MM / From: MA000001	$0.76	1
6A957	LR121739	STUD - BALL	LR121739 STUD - BALL Intercooler, M6 / From: MA000001	$3.20	4
6K770	LR124956	HOSE - AIR	LR124956 HOSE - AIR Outlet / From: MA000001	$113.74	1
9C854	LR093490	ACTUATOR - SUPERCHARGER BYPASS	LR093490 ACTUATOR - SUPERCHARGER BYPASS From: MA000001	$269.70	1
9L440	LR150067	INTERCOOLER	LR150067 INTERCOOLER From: MA000001	$590.20	1
12A697	LR122989	SENSOR - AIR TEMPERATURE & PRESSURE	LR122989 SENSOR - AIR TEMPERATURE & PRESSURE Pressure / From: MA000001	$48.11	1
8124	LR137659	INSULATOR - RADIATOR SUPPORT	LR137659 INSULATOR - RADIATOR SUPPORT Intercooler / From: MA000001	$4.85	4

Haven't found what you're looking for?

View Cart / Checkout

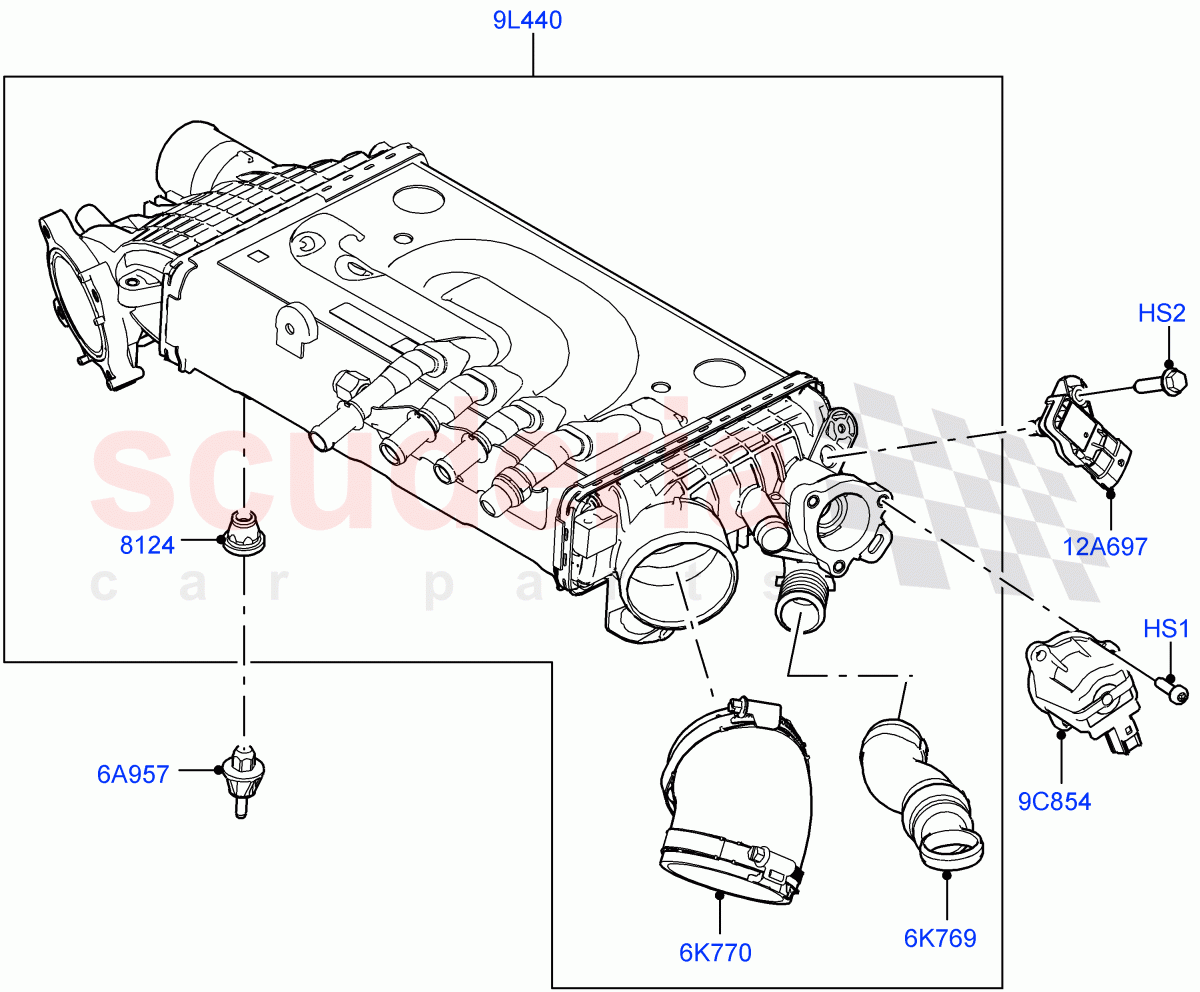

Intercooler/Air Ducts And Hoses (3.0L Aj20P6 Petrol High) ((V) Fromka000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]
