Air Cleaner (3.0L Aj20P6 Petrol High) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Air Cleaner (3.0L AJ20P6 Petrol High) ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR114603 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR141707 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR141743 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR141738 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
113123479 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR092258 ELEMENT - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR093998 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR025918 STUD - ENGINE COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR082539 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR094007 DUCT - DIRTY AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR141757 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR141750 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR141759 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR141752 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR141702 DUCT - AIR INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR141695 TUBE - OUTLET Enquire To Order
View All

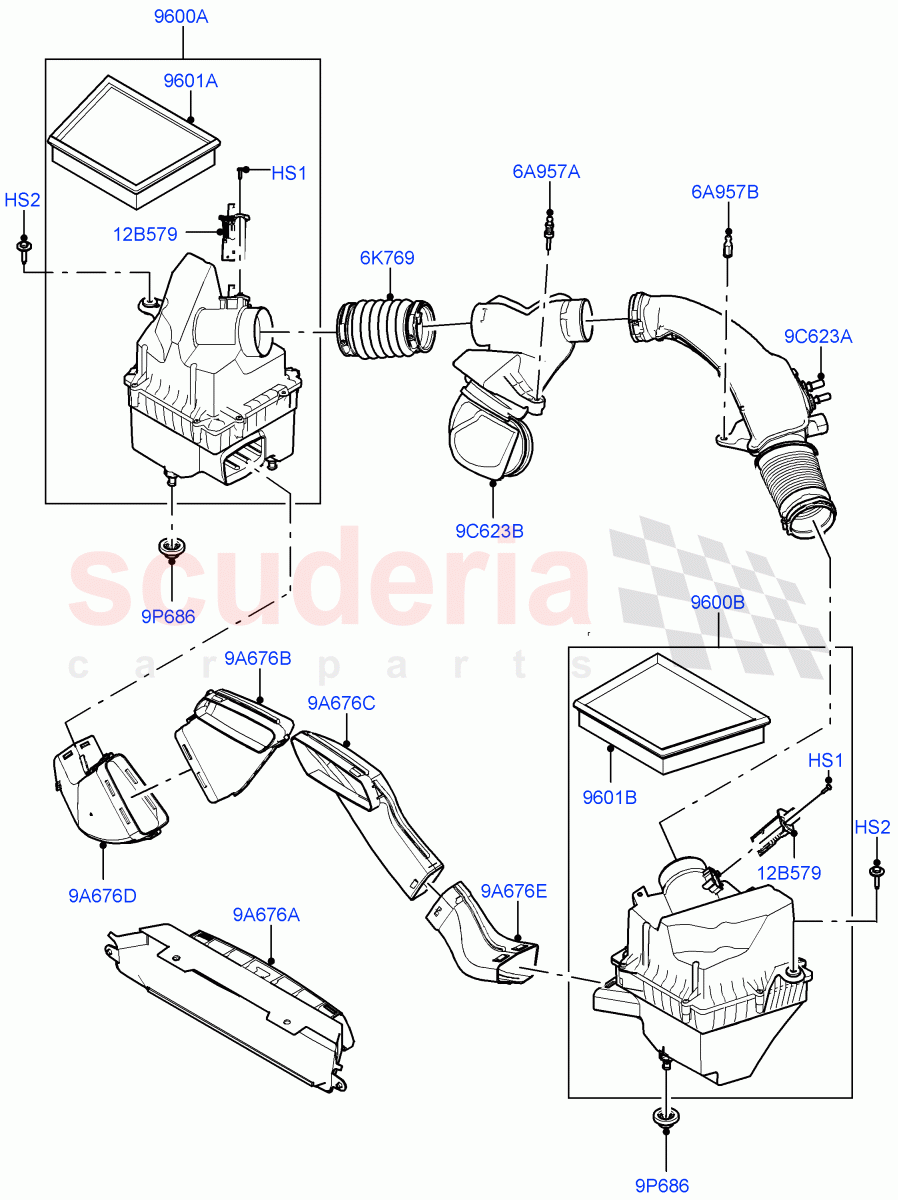

Air Cleaner (3.0L AJ20P6 Petrol High) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR114603
SCREW
Mass Air Flow Sensor, Screw 4 X 14 / From: MA000001 		- 2 Enquire
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30, To Air Cleaner Box / From: MA000001 		- 2 Enquire
6A957A LR025918
STUD - ENGINE COVER
Cover / From: MA000001 		- 1 Enquire
6A957B LR082539
PIN
From: MA000001 		- 1 Enquire
6K769 LR141707
DUCT - AIR
RH / From: MA000001 		- 1 Enquire
9A676A LR094007
DUCT - DIRTY AIR
Air Duct Support / From: MA000001 		- 1 Enquire
9A676B LR141757
TUBE - AIR CLEANER INTAKE
RH Upper / From: MA000001 		- 1 Enquire
9A676C LR141750
TUBE - AIR CLEANER INTAKE
LH Upper / From: MA000001 		- 1 Enquire
9A676D LR141759
TUBE - AIR CLEANER INTAKE
RH Lower / From: MA000001 		- 1 Enquire
9A676E LR141752
TUBE - AIR CLEANER INTAKE
LH Lower / From: MA000001 		- 1 Enquire
9C623A LR141702
DUCT - AIR INTAKE
LH / From: MA000001 		- 1 Enquire
9C623B LR141695
TUBE - OUTLET
TEE-PIECE / From: MA000001 		- 1 Enquire
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: MA000001 		- 4 Enquire
12B579 LR093998
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: MA000001 		- 1 Enquire
9600A LR141743
CLEANER - AIR
RH / From: MA000001 		- 1 Enquire
9600B LR141738
CLEANER - AIR
LH / From: MA000001 		- 1 Enquire
9601A 113123479
CLEANER - AIR
RH / From: MA000001 		- 1 Enquire
9601B LR092258
ELEMENT - AIR CLEANER
LH / From: MA000001 		- 1 Enquire
