Rear Door Glass And Window Controls of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Rear Door Glass And Window Controls

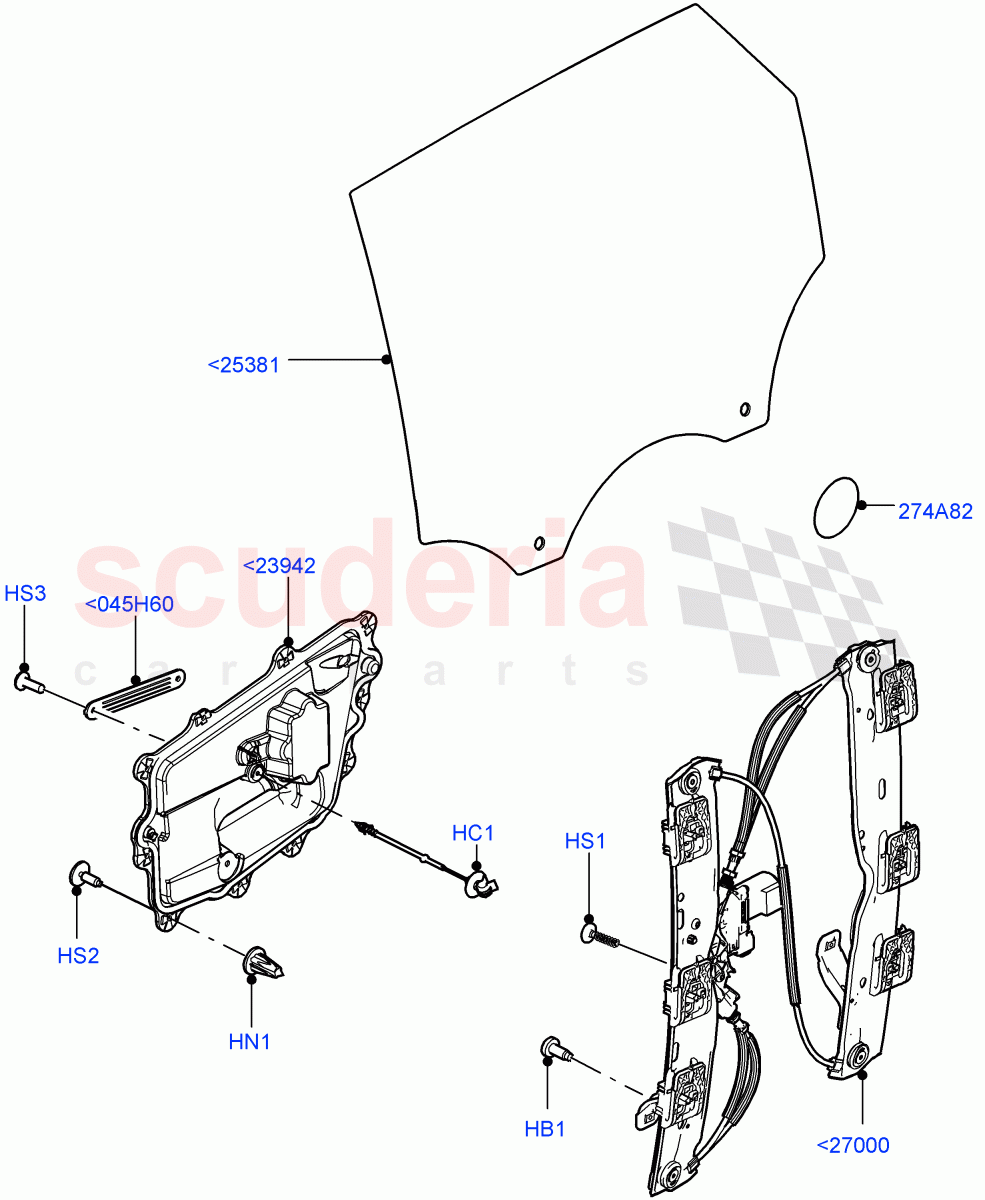

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093205	CLIP - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114151	NUT	Enquire	To Order
	LR114151	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049323	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010155	SCREW	Enquire	To Order
	LR139963	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093207	PANEL - DOOR TRIM	Enquire	To Order
	LR093206	PANEL - DOOR TRIM	Enquire	To Order
	LR111546	PANEL - DOOR TRIM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR093210	GLASS - REAR DOOR	Enquire	To Order
	LR093211	GLASS - REAR DOOR	Enquire	To Order
	LR093212	GLASS - REAR DOOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR093204	REGULATOR - WINDOW	Enquire	To Order
	LR093203	REGULATOR - WINDOW	Enquire	To Order
	LR124299	REGULATOR - WINDOW	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR088967	SEAL - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093202	STRAP - RETENSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<045H60	LR093202	STRAP - RETENSION	LR093202 STRAP - RETENSION To: LA999999	-	2	Enquire
<23942	LR093207	PANEL - DOOR TRIM	LR093207 PANEL - DOOR TRIM LH / To: JA756836	-	1	Enquire
<23942	LR093206	PANEL - DOOR TRIM	LR093206 PANEL - DOOR TRIM RH / To: JA756836	-	1	Enquire
<23942	LR111546	PANEL - DOOR TRIM	LR111546 PANEL - DOOR TRIM LH / From: JA756837 / To: LA999999	-	1	Enquire
<23942	LR111547	PANEL - DOOR TRIM	LR111547 PANEL - DOOR TRIM RH / From: JA756837 / To: LA999999	-	1	Enquire
<23942	LR142986	PANEL - DOOR TRIM	LR142986 PANEL - DOOR TRIM RH / From: MA000001	-	1	Enquire
<23942	LR142987	PANEL - DOOR TRIM	LR142987 PANEL - DOOR TRIM LH / From: MA000001	-	1	Enquire
<25381	LR093210	GLASS - REAR DOOR	LR093210 GLASS - REAR DOOR With Tinted Glass All Round / RH / To: LA999999	-	1	Enquire
<25381	LR093211	GLASS - REAR DOOR	LR093211 GLASS - REAR DOOR With Privacy Glass / RH / To: LA999999	-	1	Enquire
<25381	LR093212	GLASS - REAR DOOR	LR093212 GLASS - REAR DOOR With Tinted Glass All Round / LH / To: LA999999	-	1	Enquire
<25381	LR093213	GLASS - REAR DOOR	LR093213 GLASS - REAR DOOR With Privacy Glass / LH / To: LA999999	-	1	Enquire
<25381	LR093210	GLASS - REAR DOOR	LR093210 GLASS - REAR DOOR Less Privacy Glass / RH / From: MA000001	-	1	Enquire
<25381	LR093211	GLASS - REAR DOOR	LR093211 GLASS - REAR DOOR Privacy Glass / RH / From: MA000001	-	1	Enquire
<25381	LR093212	GLASS - REAR DOOR	LR093212 GLASS - REAR DOOR Less Privacy Glass / LH / From: MA000001	-	1	Enquire
<25381	LR093213	GLASS - REAR DOOR	LR093213 GLASS - REAR DOOR Privacy Glass / LH / From: MA000001	-	1	Enquire
<27000	LR093204	REGULATOR - WINDOW	LR093204 REGULATOR - WINDOW LH / To: KA210803	-	1	Enquire
<27000	LR093203	REGULATOR - WINDOW	LR093203 REGULATOR - WINDOW RH / To: KA210803	-	1	Enquire
<27000	LR124299	REGULATOR - WINDOW	LR124299 REGULATOR - WINDOW RH / From: KA210804 / To: NA332008	-	1	Enquire
<27000	LR124300	REGULATOR - WINDOW	LR124300 REGULATOR - WINDOW LH / From: KA210804 / To: NA332008	-	1	Enquire
<27000	LR172496	REGULATOR - WINDOW	LR172496 REGULATOR - WINDOW LH / From: NA332009	-	1	Enquire
<27000	LR172495	REGULATOR - WINDOW	LR172495 REGULATOR - WINDOW RH / From: NA332009	-	1	Enquire
HB1	XYG500160	BOLT	XYG500160 BOLT M6 x 12MM, Torx	-	4	Enquire
HC1	LR093205	CLIP - CABLE	LR093205 CLIP - CABLE 6 X 6.5 x 0.75	-	2	Enquire
HN1	LR114151	NUT	LR114151 NUT 5 X 8 X 8 X 0.8-1.2 / To: KA209027	-	20	Enquire
HN1	LR114151	NUT	LR114151 NUT 5X8X8X0.7-1.3, Expanding Rivet / From: KA209028	-	20	Enquire
HS1	LR049323	SCREW	LR049323 SCREW M5 x 22MM	-	2	Enquire
HS2	LR010155	SCREW	LR010155 SCREW M5 X 16MM, Torx, Woofer / To: LA238955	-	20	Enquire
HS2	LR139963	Screw	LR139963 Screw M5 X 16MM, Torx / From: LA238956	-	20	Enquire
HS3	LR081401	SCREW	LR081401 SCREW 4.8 X 19MM	-	4	Enquire
274A82	LR088967	SEAL - COVER	LR088967 SEAL - COVER	-	4	Enquire
