Find Your Part

Side Panels - Outer of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Side Panels - Outer

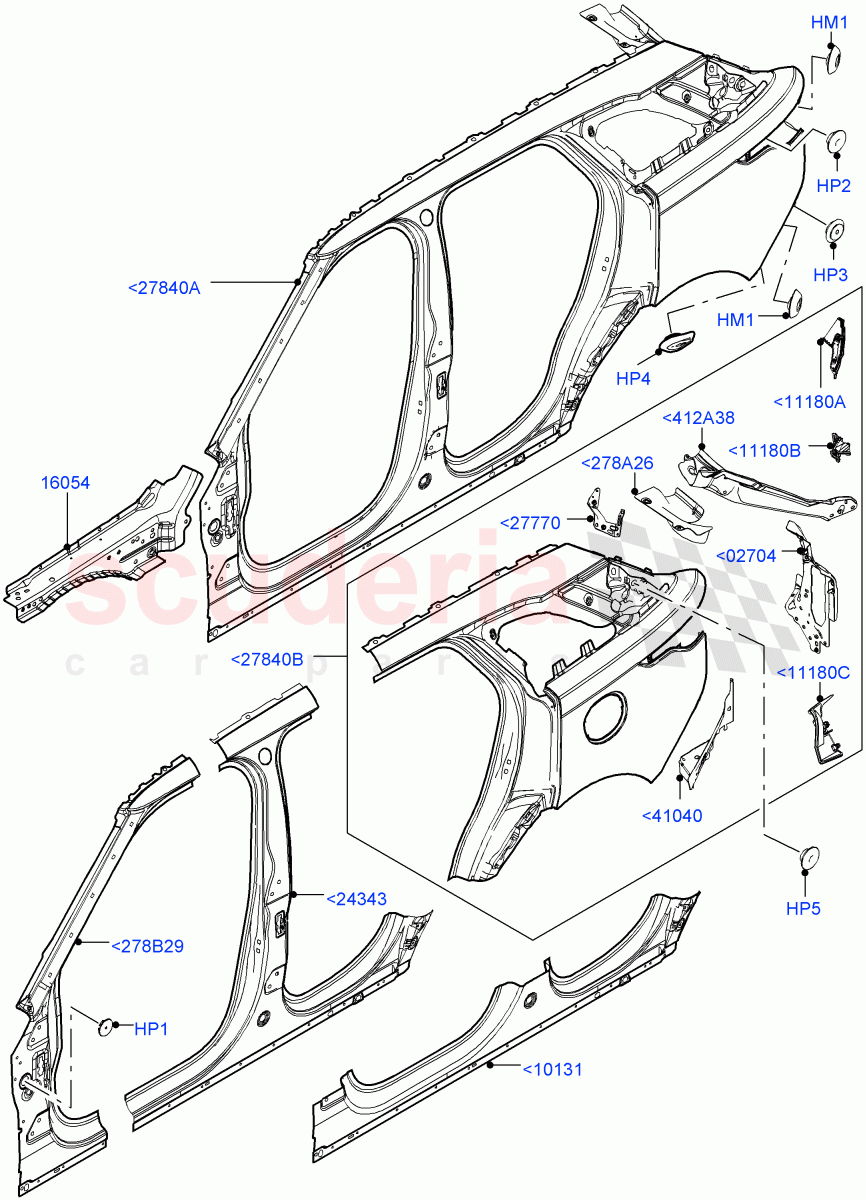

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000806	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043901	PLUG - "A" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002383	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000066	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB500080	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144681	GROMMET - "B" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091315	PANEL - FENDER - FRONT	Enquire	To Order
	LR091316	PANEL - FENDER - FRONT	Enquire	To Order
	LR141052	PANEL - FENDER - FRONT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091330	PANEL - REAR LAMP CLOSING	Enquire	To Order
	LR091332	PANEL - REAR LAMP CLOSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091299	PANEL - BODY SIDE - DOOR SILL	Enquire	To Order
	LR091300	PANEL - BODY SIDE - DOOR SILL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091297	PANEL - BODY SIDE - CENTRE	Enquire	To Order
	LR091298	PANEL - BODY SIDE - CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091324	REINFORCEMENT - "D" PILLAR	Enquire	To Order
	LR091328	REINFORCEMENT - "D" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091365	EXTENSION - REAR FLOOR SIDE MEMBER	Enquire	To Order
	LR091366	EXTENSION - REAR FLOOR SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091321	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR091322	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091335	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR091336	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091337	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR091338	INSULATOR - QUARTER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091287	PANEL - BODY SIDE	Enquire	To Order
	LR091290	PANEL - BODY SIDE	Enquire	To Order
	LR091290	PANEL - BODY SIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091293	PANEL - BODY SIDE - REAR	Enquire	To Order
	LR091294	PANEL - BODY SIDE - REAR	Enquire	To Order
	LR091294	PANEL - BODY SIDE - REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091949	REINFORCEMENT - "D" PILLAR	Enquire	To Order
	LR091950	REINFORCEMENT - "D" PILLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091295	PANEL - BODY SIDE - FRONT	Enquire	To Order
	LR091296	PANEL - BODY SIDE - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091311	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order
	LR091312	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order
	LR106413	PANEL - "D" PILLAR WATER DRAIN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<278A26	LR091949	REINFORCEMENT - "D" PILLAR	LR091949 REINFORCEMENT - "D" PILLAR RH, Category A	-	1	Enquire
<278A26	LR091950	REINFORCEMENT - "D" PILLAR	LR091950 REINFORCEMENT - "D" PILLAR LH, Category A	-	1	Enquire
<278B29	LR091295	PANEL - BODY SIDE - FRONT	LR091295 PANEL - BODY SIDE - FRONT RH, Category A	-	1	Enquire
<278B29	LR091296	PANEL - BODY SIDE - FRONT	LR091296 PANEL - BODY SIDE - FRONT LH, Category A	-	1	Enquire
<412A38	LR091311	PANEL - "D" PILLAR WATER DRAIN	LR091311 PANEL - "D" PILLAR WATER DRAIN RH, Category A / To: JA709143	-	1	Enquire
<412A38	LR091312	PANEL - "D" PILLAR WATER DRAIN	LR091312 PANEL - "D" PILLAR WATER DRAIN LH, Category A / To: JA709143	-	1	Enquire
<412A38	LR106413	PANEL - "D" PILLAR WATER DRAIN	LR106413 PANEL - "D" PILLAR WATER DRAIN RH, Category A / From: JA709144	-	1	Enquire
<412A38	LR106414	PANEL - "D" PILLAR WATER DRAIN	LR106414 PANEL - "D" PILLAR WATER DRAIN LH, Category A / From: JA709144	-	1	Enquire
<02704	LR091330	PANEL - REAR LAMP CLOSING	LR091330 PANEL - REAR LAMP CLOSING RH, Category A	-	1	Enquire
<02704	LR091332	PANEL - REAR LAMP CLOSING	LR091332 PANEL - REAR LAMP CLOSING LH, Category A	-	1	Enquire
<10131	LR091299	PANEL - BODY SIDE - DOOR SILL	LR091299 PANEL - BODY SIDE - DOOR SILL RH, Category A	-	1	Enquire
<10131	LR091300	PANEL - BODY SIDE - DOOR SILL	LR091300 PANEL - BODY SIDE - DOOR SILL LH, Category A	-	1	Enquire
<11180A	LR091321	INSULATOR - QUARTER PANEL	LR091321 INSULATOR - QUARTER PANEL RH, Category A	-	1	Enquire
<11180A	LR091322	INSULATOR - QUARTER PANEL	LR091322 INSULATOR - QUARTER PANEL LH, Category A	-	1	Enquire
<11180B	LR091335	INSULATOR - QUARTER PANEL	LR091335 INSULATOR - QUARTER PANEL RH	-	1	Enquire
<11180B	LR091336	INSULATOR - QUARTER PANEL	LR091336 INSULATOR - QUARTER PANEL LH	-	1	Enquire
<11180C	LR091337	INSULATOR - QUARTER PANEL	LR091337 INSULATOR - QUARTER PANEL RH	-	1	Enquire
<11180C	LR091338	INSULATOR - QUARTER PANEL	LR091338 INSULATOR - QUARTER PANEL LH	-	1	Enquire
<24343	LR091297	PANEL - BODY SIDE - CENTRE	LR091297 PANEL - BODY SIDE - CENTRE RH, Category A	-	1	Enquire
<24343	LR091298	PANEL - BODY SIDE - CENTRE	LR091298 PANEL - BODY SIDE - CENTRE LH, Category A	-	1	Enquire
<27770	LR091324	REINFORCEMENT - "D" PILLAR	LR091324 REINFORCEMENT - "D" PILLAR RH, Category A	-	1	Enquire
<27770	LR091328	REINFORCEMENT - "D" PILLAR	LR091328 REINFORCEMENT - "D" PILLAR LH, Category A	-	1	Enquire
<27840A	LR091287	PANEL - BODY SIDE	LR091287 PANEL - BODY SIDE RH, Category A	-	1	Enquire
<27840A	LR091290	PANEL - BODY SIDE	LR091290 PANEL - BODY SIDE LH, Category A / To: LA999999	-	1	Enquire
<27840A	LR091290	PANEL - BODY SIDE	LR091290 PANEL - BODY SIDE Less Electric Engine Battery / LH, Category A / From: MA000001	-	1	Enquire
<27840A	LR148882	PANEL - BODY SIDE	LR148882 PANEL - BODY SIDE Electric Engine Battery-PHEV / LH, Category A / From: MA000001	-	1	Enquire
<27840B	LR091293	PANEL - BODY SIDE - REAR	LR091293 PANEL - BODY SIDE - REAR RH, Category A	-	1	Enquire
<27840B	LR091294	PANEL - BODY SIDE - REAR	LR091294 PANEL - BODY SIDE - REAR LH, Category A / To: LA999999	-	1	Enquire
<27840B	LR091294	PANEL - BODY SIDE - REAR	LR091294 PANEL - BODY SIDE - REAR Electric Engine Battery-MHEV / LH, Category A / From: MA000001	-	1	Enquire
<27840B	LR148884	PANEL - BODY SIDE - REAR	LR148884 PANEL - BODY SIDE - REAR Electric Engine Battery-PHEV / LH, Category A / From: MA000001	-	1	Enquire
<41040	LR091365	EXTENSION - REAR FLOOR SIDE MEMBER	LR091365 EXTENSION - REAR FLOOR SIDE MEMBER RH, Category A	-	1	Enquire
<41040	LR091366	EXTENSION - REAR FLOOR SIDE MEMBER	LR091366 EXTENSION - REAR FLOOR SIDE MEMBER LH, Category A	-	1	Enquire
HM1	LR000806	PLUG - BODY SEALING	LR000806 PLUG - BODY SEALING 12 X 18MM	-	10	Enquire
HP1	LR043901	PLUG - "A" PILLAR	LR043901 PLUG - "A" PILLAR 40 X 1.1 - 4.48	-	2	Enquire
HP2	LR002383	PLUG	LR002383 PLUG 12 x 1.5 - 3, Rubber	-	4	Enquire
HP3	LR000066	PLUG - BLANKING	LR000066 PLUG - BLANKING 16 X 0.6MM	-	2	Enquire
HP4	AYB500080	PLUG - BLANKING	AYB500080 PLUG - BLANKING Approx. 30 x 36 x 9, Drain Plug	-	2	Enquire
HP5	LR144681	GROMMET - "B" PILLAR	LR144681 GROMMET - "B" PILLAR 30 X 36 X 0.7-1.1	-	1	Enquire
16054	LR091315	PANEL - FENDER - FRONT	LR091315 PANEL - FENDER - FRONT RH, Category A, VIN Stamped / To: LA999999	-	1	Enquire
16054	LR091316	PANEL - FENDER - FRONT	LR091316 PANEL - FENDER - FRONT LH, Category A / To: LA999999	-	1	Enquire
16054	LR141052	PANEL - FENDER - FRONT	LR141052 PANEL - FENDER - FRONT RH, Category A, VIN Stamped / From: MA000001	-	1	Enquire
16054	LR141053	PANEL - FENDER - FRONT	LR141053 PANEL - FENDER - FRONT LH, Category A / From: MA000001	-	1	Enquire
