Fuel Lines (Rear) (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Rear) (3.0 V6 D Gen2 Twin Turbo)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR093040 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR105364 RETAINER - TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR093102 COOLER - FUEL Enquire To Order
LR134446 COOLER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR093106 TUBE - FUEL SUPPLY Enquire To Order
View All

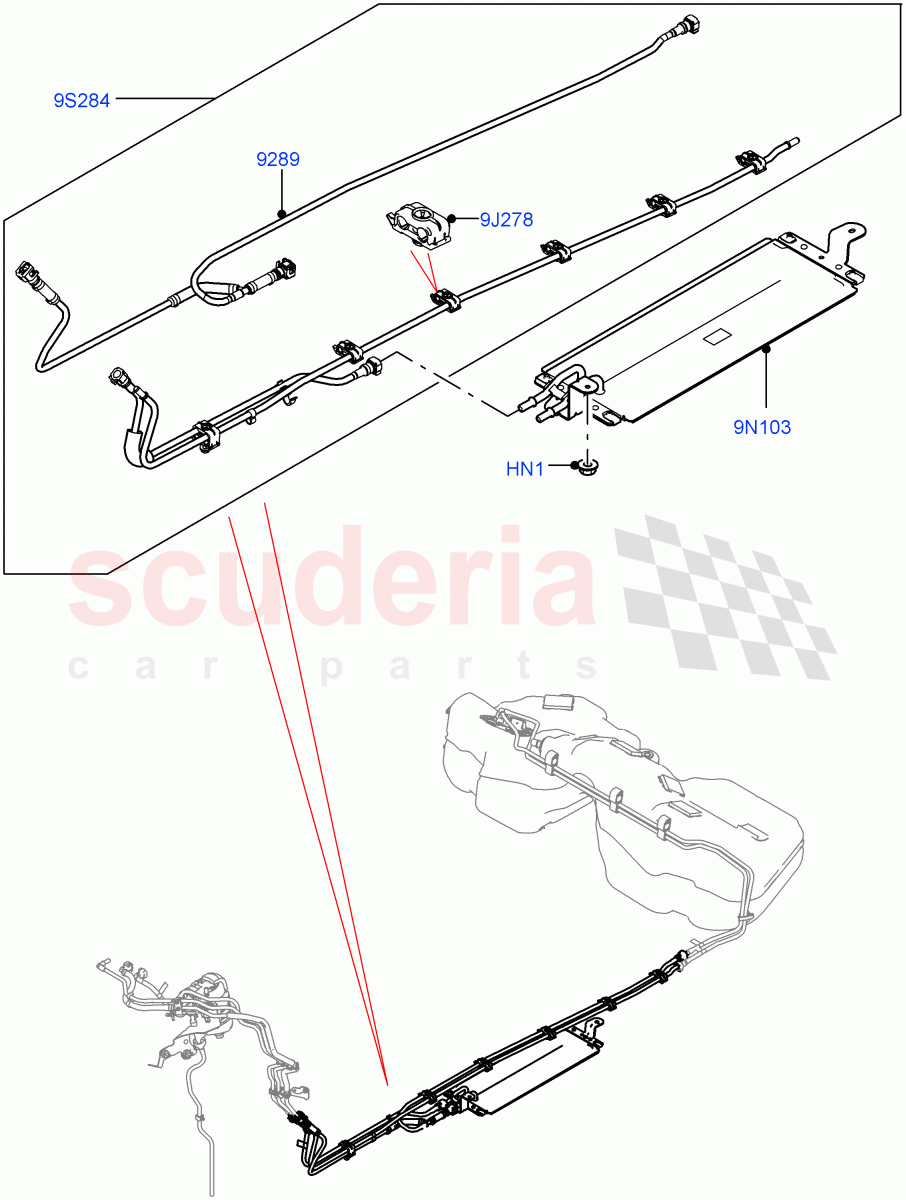

Fuel Lines (Rear) (3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
9J278 LR105364
RETAINER - TUBE 		- 5 Enquire
9N103 LR093102
COOLER - FUEL
To: LA274067 		- 1 Enquire
9N103 LR134446
COOLER - FUEL
From: LA274068 		- 1 Enquire
9S284 LR093106
TUBE - FUEL SUPPLY 		- 1 Enquire
9289 LR093040
TUBE - FUEL 		- 1 Enquire
