Fuel Lines (Front) (3.0 V6 D Gen2 Twin Turbo)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Front) (3.0 V6 D Gen2 Twin Turbo)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR051520 CLIP - SINGLE Enquire To Order
Photo Part No Description Price (each) Stock
LR161603 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR106429 FILTER - FUEL - PRIMARY Enquire To Order
LR116437 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR093058 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR144507 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR093108 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR093083 PIPE - FUEL PUMP FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR093107 TUBE - FUEL Enquire To Order
View All

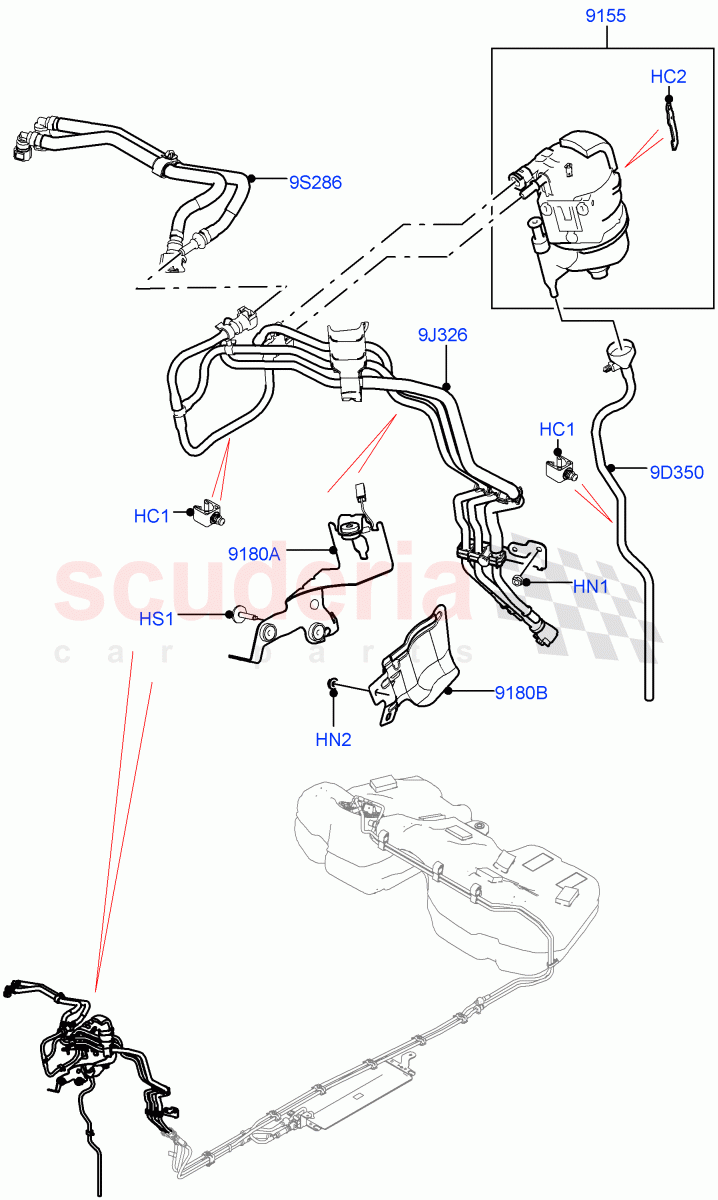

Fuel Lines (Front) (3.0 V6 D Gen2 Twin Turbo) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR051520
CLIP - SINGLE 		- 2 Enquire
HC2 LR161603
CLIP - SPECIAL
For Fuel Filter 		- 1 Enquire
HN1 FN106042
NUT
Hexagonal Head, M6 		- 1 Enquire
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		- 3 Enquire
9D350 LR093108
TUBE - FUEL
Drain 		- 1 Enquire
9J326 LR093083
PIPE - FUEL PUMP FEED 		- 1 Enquire
9S286 LR093107
TUBE - FUEL
Double, Front 		- 1 Enquire
9155 LR106429
FILTER - FUEL - PRIMARY
Less Bracket, Primary / To: KA786260 		- 1 Enquire
9155 LR116437
FILTER - FUEL - PRIMARY
Less Bracket, Primary / From: KA786261 		- 1 Enquire
9180A LR093058
BRACKET - FUEL FILTER 		- 1 Enquire
9180B LR144507
BRACKET - FUEL FILTER 		- 1 Enquire
