Turbocharger (LH Side - Primary) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0 V6 Diesel)

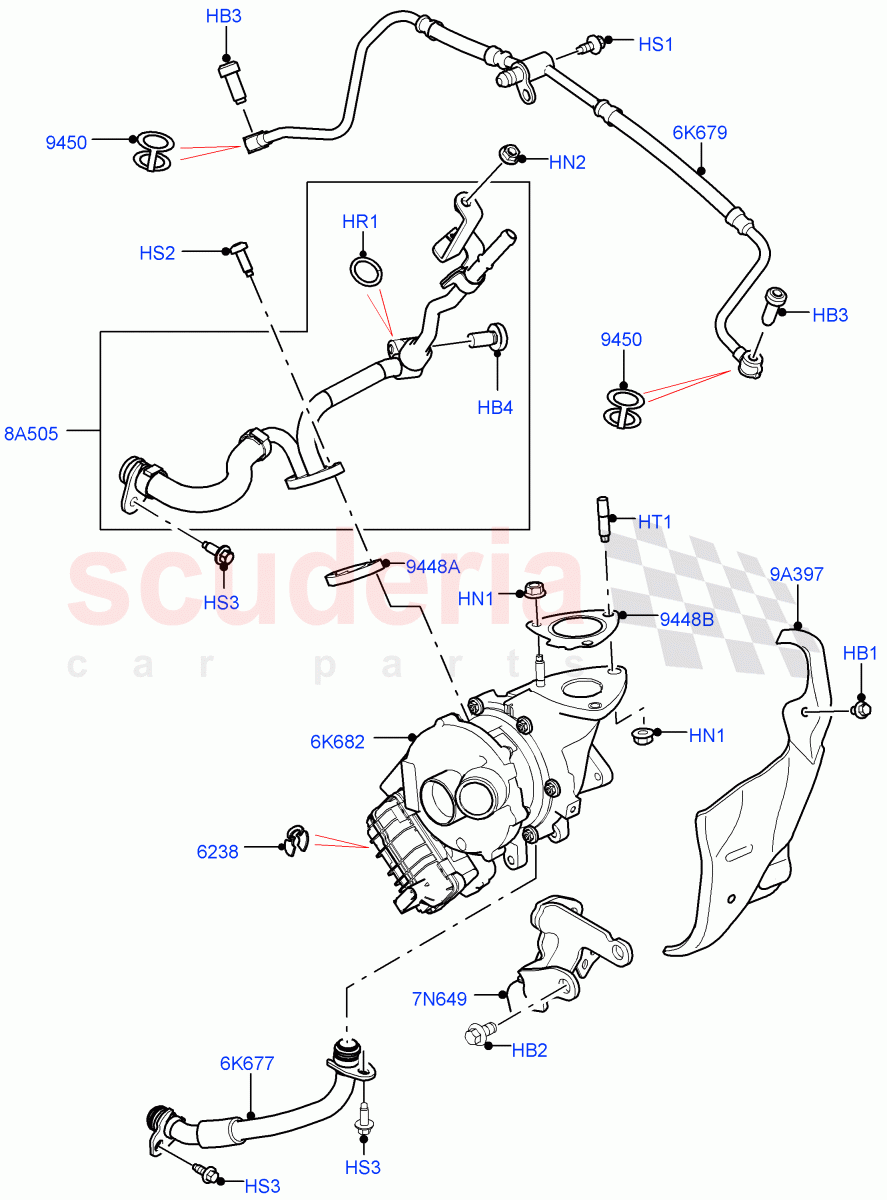

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR105437	BOLT - HEX.HEAD	Enquire	To Order
	LR113014	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023967	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123934	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129336	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4408651	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113358	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008722	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091571	PIPE - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091572	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091596	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091600	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101173	HOSE - WATER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062102	GASKET - TURBOCHARGER COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084664	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091594	HEAT SHIELD - TURBOCHARGER	Enquire	To Order
	LR112228	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / To: JA736257	-	2	Enquire
HB1	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA736258	-	2	Enquire
HB2	1419376	BOLT	1419376 BOLT Hexagonal Head, M8 X 16MM, Turbocharger Bracket	-	4	Enquire
HB3	LR023967	BOLT - BANJO	LR023967 BOLT - BANJO Banjo Bolt, Hexagonal Head, Service Part May Differ From Production	-	2	Enquire
HB4	LR123934	BOLT	LR123934 BOLT M6 x 12MM, Torx	-	1	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8, Manifold To Turbocharger / To: JA757695	-	3	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8, Manifold To Turbocharger / From: JA757696	-	3	Enquire
HN2	FN106042	NUT	FN106042 NUT Hexagonal Head, M6	-	1	Enquire
HR1	LR129336	RING - SEALING	LR129336 RING - SEALING 11.2 X 1.8	-	1	Enquire
HS1	LR000622	SCREW	LR000622 SCREW M6 x 12MM	-	1	Enquire
HS2	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx	-	2	Enquire
HS3	4408651	SCREW	4408651 SCREW M6 X 14MM	-	3	Enquire
HT1	LR113358	STUD	LR113358 STUD M8 X 16MM, M8 x 8MM	-	2	Enquire
6K677	LR091571	PIPE - OIL DRAIN	LR091571 PIPE - OIL DRAIN	-	1	Enquire
6K679	LR091572	PIPE - OIL FEED	LR091572 PIPE - OIL FEED	-	1	Enquire
6K682	LR091596	TURBOCHARGER	LR091596 TURBOCHARGER Primary	-	1	Enquire
7N649	LR091600	BRACKET - TURBOCHARGER	LR091600 BRACKET - TURBOCHARGER Turbocharger	-	1	Enquire
8A505	LR101173	HOSE - WATER INLET	LR101173 HOSE - WATER INLET Cooling For Turbocharger	-	1	Enquire
9A397	LR091594	HEAT SHIELD - TURBOCHARGER	LR091594 HEAT SHIELD - TURBOCHARGER Turbocharger / To: JA763629	-	1	Enquire
9A397	LR112228	HEAT SHIELD - TURBOCHARGER	LR112228 HEAT SHIELD - TURBOCHARGER Turbocharger / From: JA763630	-	1	Enquire
6238	LR008722	CLIP - SPECIAL	LR008722 CLIP - SPECIAL	-	2	Enquire
9448A	LR062102	GASKET - TURBOCHARGER COOLING	LR062102 GASKET - TURBOCHARGER COOLING Cooling For Turbocharger	-	1	Enquire
9448B	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger	-	1	Enquire
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer	-	2	Enquire
