Turbocharger (RH Side - Secondary) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary) (3.0 V6 Diesel)

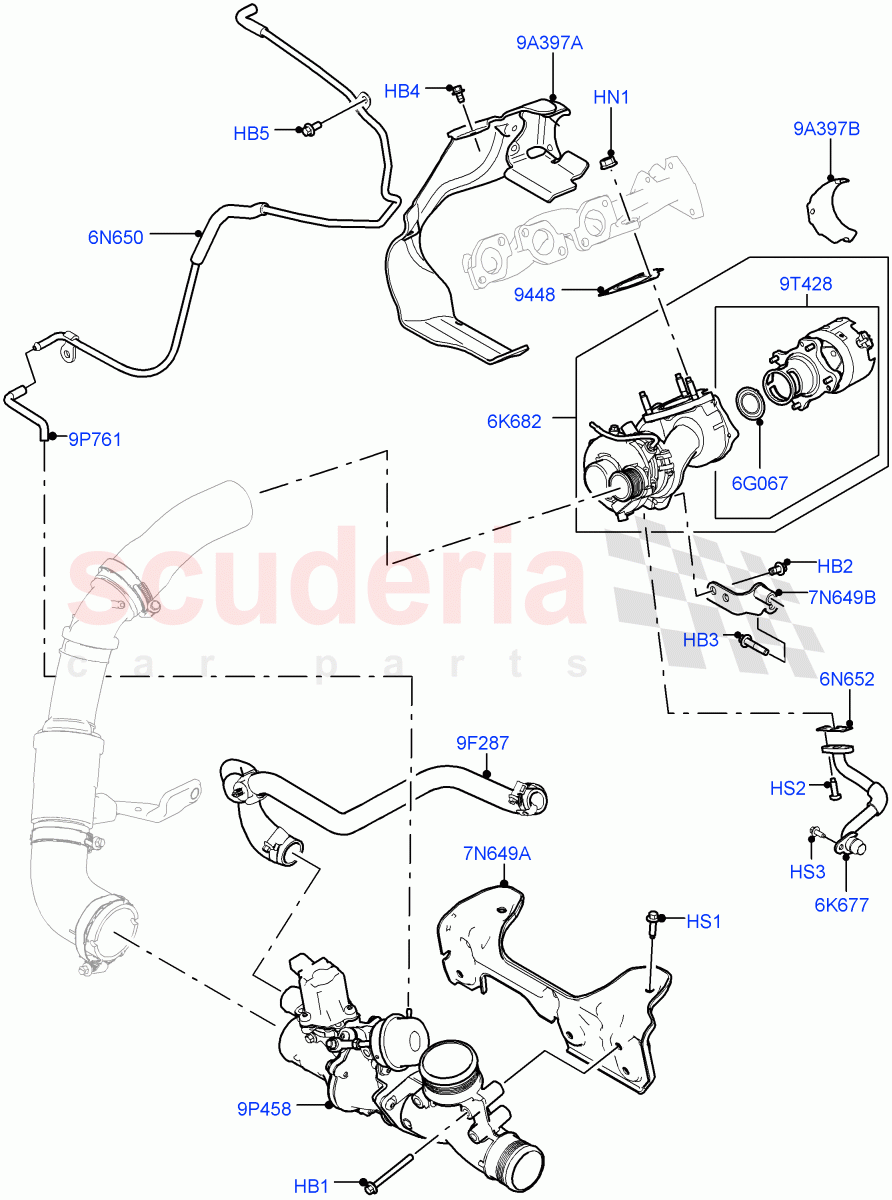

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000628	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105437	BOLT - HEX.HEAD	Enquire	To Order
	LR113014	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106170	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006028	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084664	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020589	SEAL - TURBINE SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087351	HOSE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092676	TURBOCHARGER	Enquire	To Order
	LR116635	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091685	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013235	GASKET - OIL RETURN HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092418	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093966	VALVE - SHUT-OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092952	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066430	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order
	LR116634	KIT - TURBINE SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093823	BRACKET - SUPPORT - SHUT OFF VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013485	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091592	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013602	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB106126	BOLT	FB106126 BOLT M6 x 60MM	-	4	Enquire
HB2	1419376	BOLT	1419376 BOLT Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly	-	3	Enquire
HB3	LR000628	BOLT	LR000628 BOLT Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly	-	1	Enquire
HB4	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / To: JA736257	-	3	Enquire
HB4	LR113014	BOLT - HEX.HEAD	LR113014 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 x 11.5MM / From: JA736258	-	3	Enquire
HB5	LR106170	BOLT	LR106170 BOLT Hexagonal Head, M6 X 22	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8, Turbocharger Inlet / To: JA757695	-	3	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8, Turbocharger Inlet / From: JA757696	-	3	Enquire
HS1	RYG500220	SCREW	RYG500220 SCREW Bracket, Hexagonal Head, M6 X 20MM	-	5	Enquire
HS2	LR006028	SCREW	LR006028 SCREW M6 X 16MM, Torx, Tube - Oil Return, Turbocharger	-	2	Enquire
HS3	RYG500160	SCREW	RYG500160 SCREW Cylinder Block, Hexagonal Head, M6 X 14MM, Tube - Oil Return	-	1	Enquire
6G067	LR020589	SEAL - TURBINE SHUT OFF VALVE	LR020589 SEAL - TURBINE SHUT OFF VALVE Repair Kit, Turbine Shut Off Valve	-	1	Enquire
6K677	LR087351	HOSE - OIL RETURN	LR087351 HOSE - OIL RETURN	-	1	Enquire
6K682	LR092676	TURBOCHARGER	LR092676 TURBOCHARGER 3.0 V6 D Gen2 Twin Turbo / RH, Secondary / To: JA757695	-	1	Enquire
6K682	LR116635	TURBOCHARGER	LR116635 TURBOCHARGER 3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: JA757696	-	1	Enquire
6N650	LR091685	HOSE - VACUUM	LR091685 HOSE - VACUUM Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control	-	1	Enquire
6N652	LR013235	GASKET - OIL RETURN HOSE	LR013235 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper	-	1	Enquire
7N649A	LR093823	BRACKET - SUPPORT - SHUT OFF VALVE	LR093823 BRACKET - SUPPORT - SHUT OFF VALVE Shut Off Valve	-	1	Enquire
7N649B	LR013485	BRACKET - TURBOCHARGER	LR013485 BRACKET - TURBOCHARGER Turbocharger	-	1	Enquire
9A397A	LR091592	HEAT SHIELD - TURBOCHARGER	LR091592 HEAT SHIELD - TURBOCHARGER RH, Manifold To Turbocharger	-	1	Enquire
9A397B	LR013602	HEAT SHIELD - TURBOCHARGER	LR013602 HEAT SHIELD - TURBOCHARGER RH, Turbocharger	-	1	Enquire
9F287	LR092418	HOSE - COMPRESSED AIR	LR092418 HOSE - COMPRESSED AIR Compressed Air Recirculation, From Valve To Air Inlet Hose	-	1	Enquire
9P458	LR093966	VALVE - SHUT-OFF	LR093966 VALVE - SHUT-OFF Compressed Air Recirculation, Shut Off Valve	-	1	Enquire
9P761	LR092952	HOSE - VACUUM	LR092952 HOSE - VACUUM Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control	-	1	Enquire
9T428	LR066430	KIT - TURBINE SHUT OFF VALVE	LR066430 KIT - TURBINE SHUT OFF VALVE 3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / To: JA764615	-	1	Enquire
9T428	LR116634	KIT - TURBINE SHUT OFF VALVE	LR116634 KIT - TURBINE SHUT OFF VALVE 3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: JA764616	-	1	Enquire
9448	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger	-	1	Enquire
