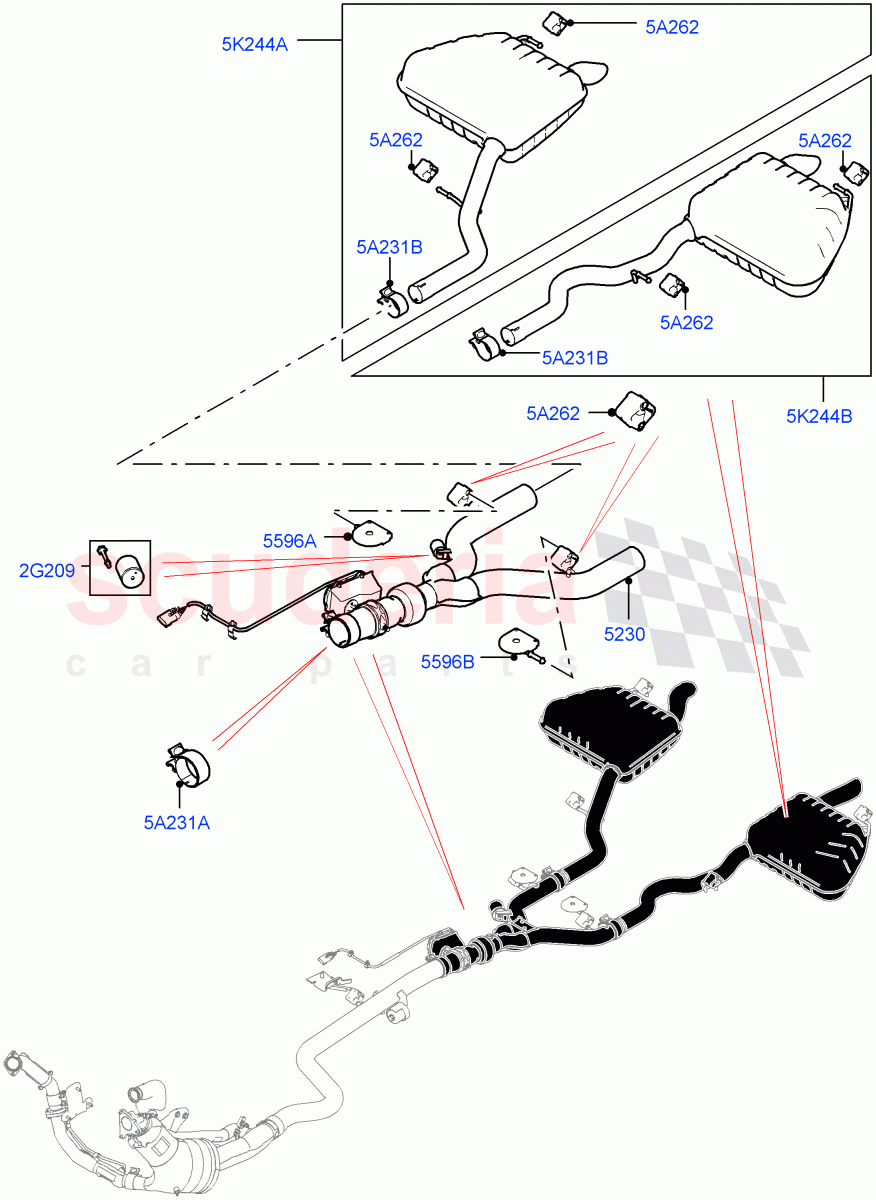

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092853	DAMPER - EXHAUST SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092843	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092844	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077700	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079315	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092864	MUFFLER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092859	MUFFLER - REAR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2G209	LR092853	DAMPER - EXHAUST SYSTEM	LR092853 DAMPER - EXHAUST SYSTEM	-	1	Enquire
5A231A	LR077700	CLAMP - EXHAUST	LR077700 CLAMP - EXHAUST 65MM, Front	-	1	Enquire
5A231B	LR079315	CLAMP	LR079315 CLAMP 60MM, Rear, RH/LH	-	2	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	-	6	Enquire
5K244A	LR092864	MUFFLER - REAR	LR092864 MUFFLER - REAR RH	-	1	Enquire
5K244B	LR092859	MUFFLER - REAR	LR092859 MUFFLER - REAR LH	-	1	Enquire
5230	LR095875	RESONATOR - EXHAUST SYSTEM	LR095875 RESONATOR - EXHAUST SYSTEM To: KA227497	-	1	Enquire
5230	LR116482	RESONATOR - EXHAUST SYSTEM	LR116482 RESONATOR - EXHAUST SYSTEM From: KA227498 / To: KA228438	-	1	Enquire
5230	LR126685	RESONATOR - EXHAUST SYSTEM	LR126685 RESONATOR - EXHAUST SYSTEM From: KA228439 / To: KA230276	-	1	Enquire
5230	LR135637	RESONATOR - EXHAUST SYSTEM	LR135637 RESONATOR - EXHAUST SYSTEM From: KA230277	-	1	Enquire
5596A	LR092843	BRACKET - EXHAUST PIPE MOUNTING	LR092843 BRACKET - EXHAUST PIPE MOUNTING RH	-	1	Enquire
5596B	LR092844	BRACKET - EXHAUST PIPE MOUNTING	LR092844 BRACKET - EXHAUST PIPE MOUNTING LH	-	1	Enquire
