Name: Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus DPF, DPF + DE-SOX, L6 Diesel Emissions)
Rating: 4.0 (1 reviews)

Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus DPF, DPF + DE-SOX, L6 Diesel Emissions) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus DPF, DPF + DE-SOX, L6 Diesel Emissions)

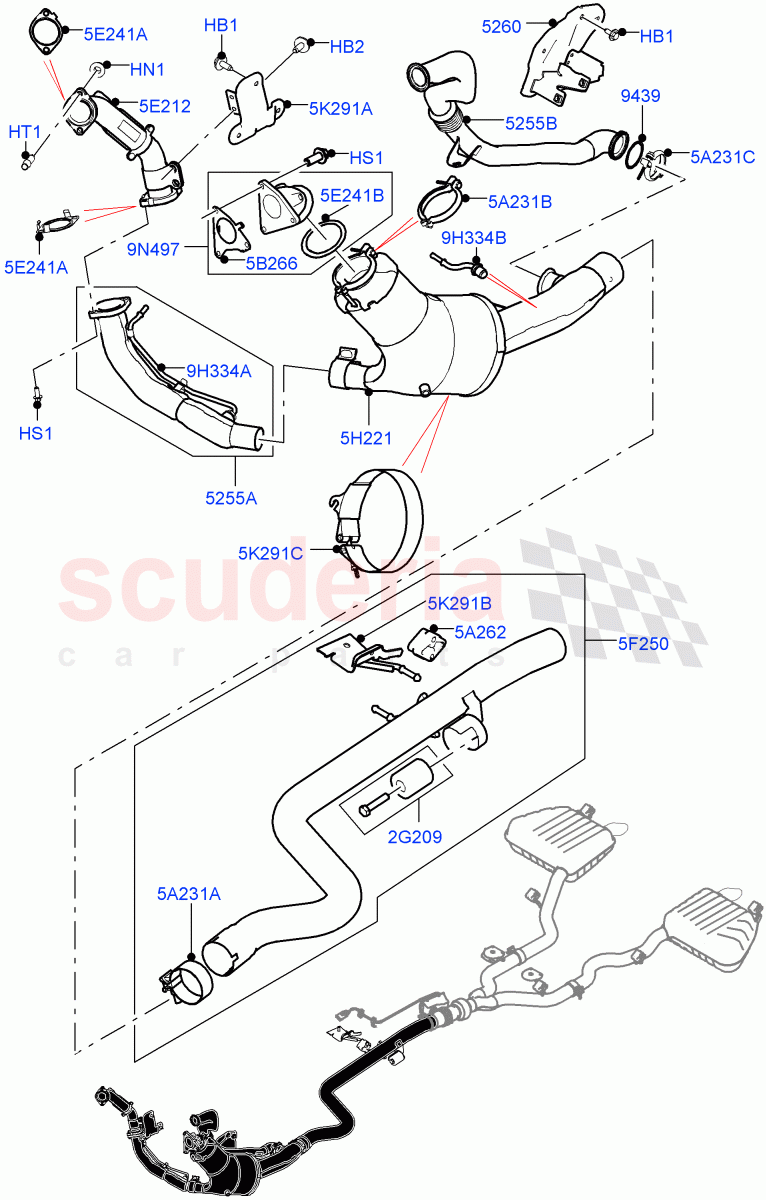

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037087	BOLT AND WASHER - HEX.HEAD	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500060	NUT	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092899	STUD	$3.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092878	BRACKET - EXHAUST BRAKE SUPPORT	$43.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	$17.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107773	DAMPER	$56.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092879	PIPE - EXHAUST	$291.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092890	PIPE - EXHAUST	$359.87	To Order
	LR105416	PIPE - EXHAUST	$369.11	To Order
	LR108579	PIPE - EXHAUST	$358.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092876	GASKET - EXHAUST PIPE	$16.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR092867	PIPE - EXHAUST	$206.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092895	CATALYST AND PARTICLE FILTER	$337.59	To Order
	LR107777	CATALYST AND PARTICLE FILTER	$257.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092885	CATALYTIC CONVERTER	$3,355.34	To Order
	LR106172	CATALYTIC CONVERTER	$2,975.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092898	FLANGE - EXHAUST PIPE	$117.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$29.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094552	CLAMP - EXHAUST	$39.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094554	CLAMP - EXHAUST	$18.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016621	GASKET - EXHAUST PIPE	$19.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094550	GASKET - EXHAUST PIPE	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092866	BRACKET - EXHAUST PIPE MOUNTING	$50.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094548	BRACKET - EXHAUST PIPE MOUNTING	$46.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107071	BELLY BAND BRACKET - EXHAUST	$70.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094549	TUBE - EXHAUST PRESSURE	$35.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094551	TUBE - EXHAUST PRESSURE	$35.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Bracket, Hexagonal Head, M8 X 21MM, To Transmission	$1.12	8
HB2	LR037087	BOLT AND WASHER - HEX.HEAD	LR037087 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 30MM	$1.92	2
HN1	WYH500060	NUT	WYH500060 NUT M8	$3.77	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	$2.85	5
HT1	LR092899	STUD	LR092899 STUD	$3.93	2
2G209	LR107773	DAMPER	LR107773 DAMPER	$56.34	1
5A231A	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM	$29.81	1
5A231B	LR094552	CLAMP - EXHAUST	LR094552 CLAMP - EXHAUST Upper	$39.95	1
5A231C	LR094554	CLAMP - EXHAUST	LR094554 CLAMP - EXHAUST EGR Inlet	$18.07	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	$23.23	1
5B266	LR092876	GASKET - EXHAUST PIPE IN STOCK	LR092876 GASKET - EXHAUST PIPE Turbocharger IN STOCK	$16.95	1
5E212	LR092867	PIPE - EXHAUST	LR092867 PIPE - EXHAUST RH	$206.86	1
5E241A	LR016621	GASKET - EXHAUST PIPE	LR016621 GASKET - EXHAUST PIPE RH	$19.69	2
5E241B	LR094550	GASKET - EXHAUST PIPE	LR094550 GASKET - EXHAUST PIPE LH	$6.35	1
5F250	LR092895	CATALYST AND PARTICLE FILTER	LR092895 CATALYST AND PARTICLE FILTER To: JA738802	$337.59	1
5F250	LR107777	CATALYST AND PARTICLE FILTER	LR107777 CATALYST AND PARTICLE FILTER From: JA738803	$257.05	1
5H221	LR092885	CATALYTIC CONVERTER	LR092885 CATALYTIC CONVERTER To: JA716936	$3,355.34	1
5H221	LR106172	CATALYTIC CONVERTER	LR106172 CATALYTIC CONVERTER From: JA716937	$2,975.76	1
5K291A	LR092866	BRACKET - EXHAUST PIPE MOUNTING	LR092866 BRACKET - EXHAUST PIPE MOUNTING RH, To Transmission	$50.03	1
5K291B	LR094548	BRACKET - EXHAUST PIPE MOUNTING	LR094548 BRACKET - EXHAUST PIPE MOUNTING	$46.40	1
5K291C	LR107071	BELLY BAND BRACKET - EXHAUST	LR107071 BELLY BAND BRACKET - EXHAUST	$70.45	1
9H334A	LR094549	TUBE - EXHAUST PRESSURE	LR094549 TUBE - EXHAUST PRESSURE Pre DPF	$35.91	1
9H334B	LR094551	TUBE - EXHAUST PRESSURE	LR094551 TUBE - EXHAUST PRESSURE Post DPF	$35.29	1
9N497	LR092898	FLANGE - EXHAUST PIPE	LR092898 FLANGE - EXHAUST PIPE LH	$117.47	1
5255A	LR092879	PIPE - EXHAUST	LR092879 PIPE - EXHAUST Crossover	$291.61	1
5255B	LR092890	PIPE - EXHAUST	LR092890 PIPE - EXHAUST EGR Inlet / To: JA710151	$359.87	1
5255B	LR105416	PIPE - EXHAUST	LR105416 PIPE - EXHAUST EGR Inlet / From: JA710152 / To: JA768745	$369.11	1
5255B	LR108579	PIPE - EXHAUST	LR108579 PIPE - EXHAUST EGR Inlet / From: JA768746	$358.40	1
5260	LR092878	BRACKET - EXHAUST BRAKE SUPPORT	LR092878 BRACKET - EXHAUST BRAKE SUPPORT LH, To Transmission	$43.01	1
9439	LR078958	GASKET	LR078958 GASKET LH, EGR Inlet	$17.79	1
