Name: Vacuum Control And Air Injection (3.0 V6 D Gen2 Twin Turbo, RHD)
Rating: 4.1 (1 reviews)

View All

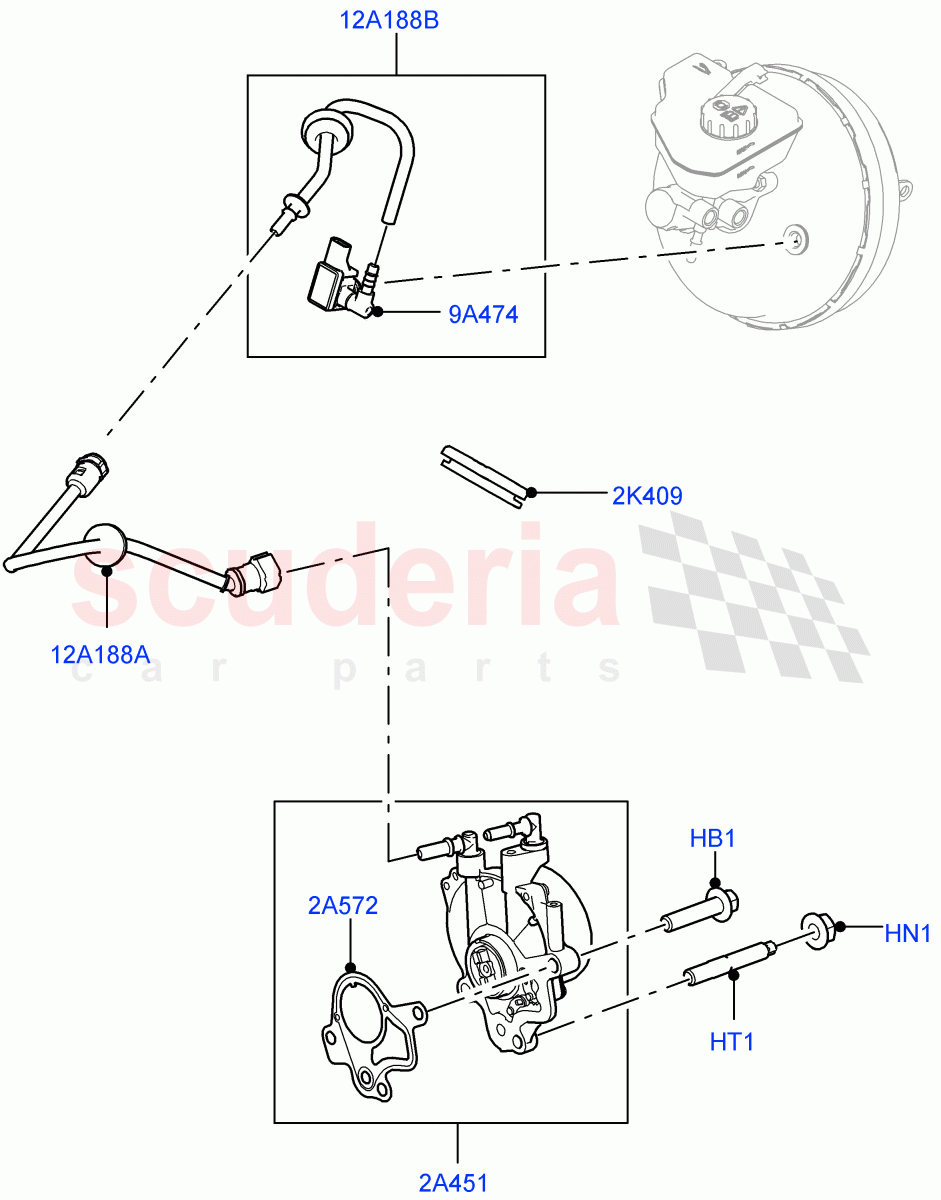

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092690	PUMP - VACUUM	$326.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096060	GASKET - VACUUM PUMP	$13.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR090847	GROMMET	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093608	SENSOR - VACUUM	$72.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090855	HOSE - VACUUM	$43.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR082782	BOLT - HEX.HEAD	LR082782 BOLT - HEX.HEAD M8 x 37MM / To: JA740110	$1.86	2
HB1	LR110748	BOLT - HEX.HEAD	LR110748 BOLT - HEX.HEAD M8 x 37MM / From: JA740111	$3.23	2
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8	$2.00	1
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35	$1.05	1
2A451	LR092690	PUMP - VACUUM	LR092690 PUMP - VACUUM	$326.92	1
2A572	LR096060	GASKET - VACUUM PUMP IN STOCK	LR096060 GASKET - VACUUM PUMP IN STOCK	$13.99	1
2K409	LR090847	GROMMET	LR090847 GROMMET	$4.63	1
9A474	LR093608	SENSOR - VACUUM	LR093608 SENSOR - VACUUM	$72.50	1
12A188A	LR090855	HOSE - VACUUM	LR090855 HOSE - VACUUM To Vacuum Pump	$43.11	1
12A188B	LR090849	HOSE - VACUUM	LR090849 HOSE - VACUUM To Brake Booster / To: JA742570	$109.19	1
12A188B	LR105216	HOSE - VACUUM	LR105216 HOSE - VACUUM To Brake Booster / From: JA742571	$81.57	1

Vacuum Control And Air Injection (3.0 V6 D Gen2 Twin Turbo, Rhd)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]
