Name: Exhaust Fluid Injection System (Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank)
Rating: 5.0 (1 reviews)

Exhaust Fluid Injection System (Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Fluid Injection System (Tank and Lines) (3.0 V6 Diesel, With Diesel Exh Fluid Emission Tank)

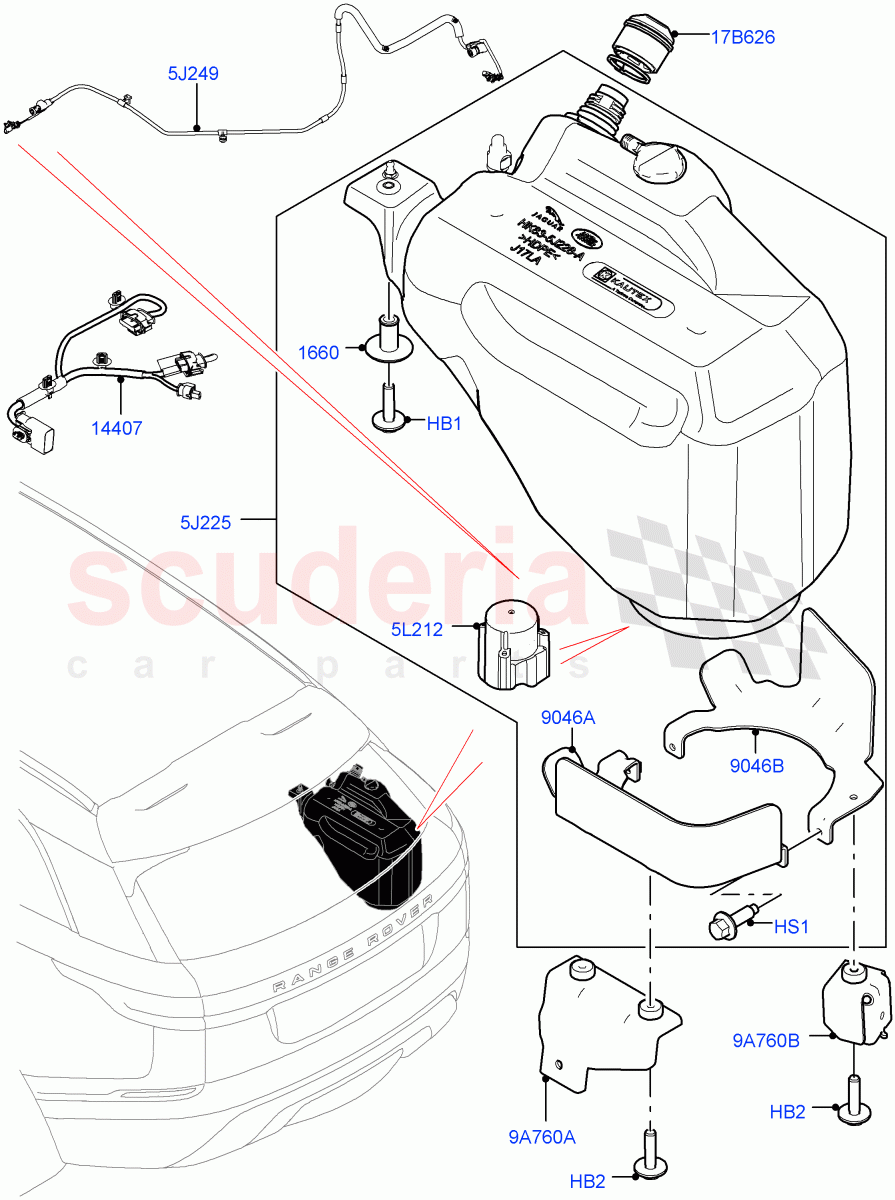

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR100643	BOLT	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	JYG500020	BOLT	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4364422	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091644	SPACER - TANK MOUNTING	$7.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094865	HARNESS - DIESEL EXHAUST FLUID SYS.	$36.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	$802.96	To Order
	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	$802.96	To Order
	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	$802.96	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091675	TUBE - DIESEL EXHAUST FLUID FEED	$199.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084743	PUMP - DIESEL EXHAUST FLUID	$533.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092939	BRACKET - TANK	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092941	BRACKET - TANK	$38.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091655	CAP - FILLER	$10.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091683	BRACKET - FUEL TANK	$12.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091682	BRACKET - FUEL TANK	$16.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR100643	BOLT	LR100643 BOLT M6 x 50MM	$2.27	1
HB2	JYG500020	BOLT	JYG500020 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM	$1.36	5
HS1	4364422	SCREW	4364422 SCREW M6 X 16MM	$1.30	1
5J225	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	LR091652 TANK&SENDER - DIESEL EXHAUST FLUID Complete Assembly / To: JA999999	$802.96	1
5J225	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	LR091652 TANK&SENDER - DIESEL EXHAUST FLUID Complete Assembly / From: KA700000 / To: KA799999	$802.96	1
5J225	LR091652	TANK&SENDER - DIESEL EXHAUST FLUID	LR091652 TANK&SENDER - DIESEL EXHAUST FLUID Complete Assembly / From: KA200000 / To: KA224645	$802.96	1
5J225	LR114289	TANK&SENDER - DIESEL EXHAUST FLUID	LR114289 TANK&SENDER - DIESEL EXHAUST FLUID Complete Assembly / From: KA224646 / To: KA300000	$952.37	1
5J225	LR114289	TANK&SENDER - DIESEL EXHAUST FLUID	LR114289 TANK&SENDER - DIESEL EXHAUST FLUID Complete Assembly / From: LA000001	$952.37	1
5J249	LR091675	TUBE - DIESEL EXHAUST FLUID FEED	LR091675 TUBE - DIESEL EXHAUST FLUID FEED To Tank	$199.31	1
5L212	LR084743	PUMP - DIESEL EXHAUST FLUID	LR084743 PUMP - DIESEL EXHAUST FLUID Service Kit	$533.72	1
9A760A	LR091683	BRACKET - FUEL TANK	LR091683 BRACKET - FUEL TANK	$12.18	1
9A760B	LR091682	BRACKET - FUEL TANK	LR091682 BRACKET - FUEL TANK	$16.05	1
17B626	LR091655	CAP - FILLER	LR091655 CAP - FILLER	$10.94	1
1660	LR091644	SPACER - TANK MOUNTING	LR091644 SPACER - TANK MOUNTING	$7.75	1
9046A	LR092939	BRACKET - TANK	LR092939 BRACKET - TANK LH	$29.20	1
9046B	LR092941	BRACKET - TANK	LR092941 BRACKET - TANK RH	$38.66	1
14407	LR094865	HARNESS - DIESEL EXHAUST FLUID SYS.	LR094865 HARNESS - DIESEL EXHAUST FLUID SYS.	$36.63	1
