Inlet Manifold (3.0 V6 Diesel)

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Inlet Manifold (3.0 V6 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
RYG500250 BOLT Enquire To Order
RYG500250 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR105434 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR166341 GASKET - CAMSHAFT COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR082511 OIL SPILL GAITER Enquire To Order
Photo Part No Description Price (each) Stock
LR091894 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR082528 STUD - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR053016 PIPE - OIL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR091795 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR091890 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR179200 MANIFOLD - INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR105957 INLET MANIFOLD WITH INTERCOOLER Enquire To Order
LR179201 MANIFOLD - INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR122398 BRACKET - ENGINE COVER Enquire To Order
LR114268 BRACKET - ENGINE COVER Enquire To Order
LR122398 BRACKET - ENGINE COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR092121 BRACKET - ENGINE COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR041092 STUD Enquire To Order
Photo Part No Description Price (each) Stock
4611570 STUD - ENGINE COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR016839 STUD - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LBG500030 STUD - ENGINE COVER Enquire To Order
View All

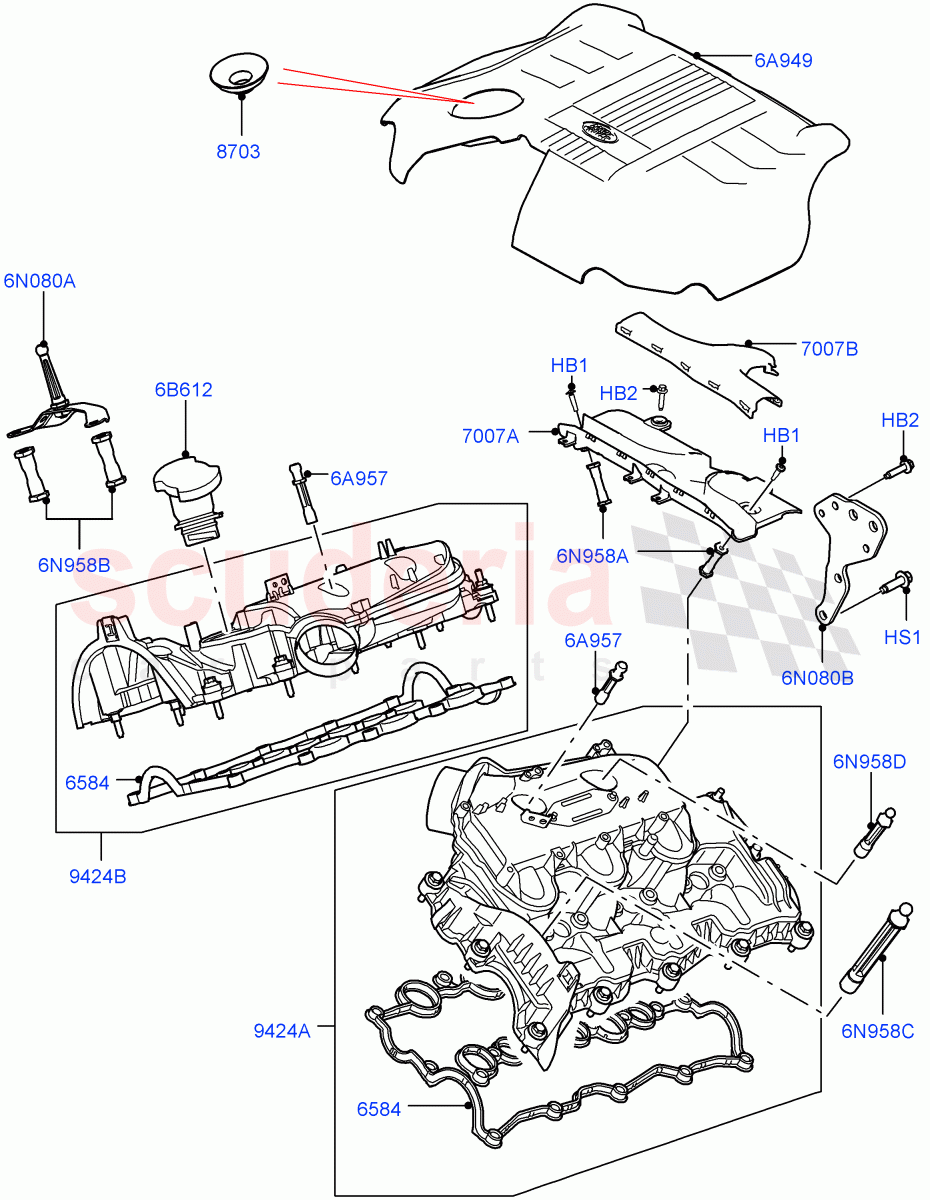

Inlet Manifold (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
Engine Cover, M6 x 19MM, Torx 		- 2 Enquire
HB2 RYG500250
BOLT
Engine Cover, M6 x 25MM 		- 2 Enquire
HB2 RYG500250
BOLT
Bracket, M6 x 25MM 		- 1 Enquire
HS1 LR105434
SCREW
M8 X 1.25 X 25 		- 2 Enquire
6A949 LR091894
COVER - ENGINE TOP
Engine 		- 1 Enquire
6A957 LR082528
STUD - BALL
Engine Cover 		- 2 Enquire
6B612 LR053016
PIPE - OIL FEED
Service Only 		- 1 Enquire
6N080A LR122398
BRACKET - ENGINE COVER
Engine Cover / To: JA746860 		- 1 Enquire
6N080A LR114268
BRACKET - ENGINE COVER
Engine Cover / From: JA746861 / To: KA787145 		- 1 Enquire
6N080A LR122398
BRACKET - ENGINE COVER
Engine Cover / From: KA787146 		- 1 Enquire
6N080B LR092121
BRACKET - ENGINE COVER 		- 1 Enquire
6N958A LR041092
STUD
Engine Cover, M6 X 11 + M6 X 11 		- 2 Enquire
6N958B 4611570
STUD - ENGINE COVER
Bracket, Engine Cover 		- 2 Enquire
6N958C LR016839
STUD - BALL
Long 		- 1 Enquire
6N958D LBG500030
STUD - ENGINE COVER
Short 		- 1 Enquire
6584 LR166341
GASKET - CAMSHAFT COVER
Camshaft Cover 		- 2 Enquire
7007A LR091795
COVER - ENGINE TOP
Engine 		- 1 Enquire
7007B LR091890
COVER - ENGINE TOP
Engine 		- 1 Enquire
8703 LR082511
OIL SPILL GAITER 		- 1 Enquire
9424A LR179200
MANIFOLD - INLET
LH 		- 1 Enquire
9424B LR105957
INLET MANIFOLD WITH INTERCOOLER
RH / To: JA759200 		- 1 Enquire
9424B LR179201
MANIFOLD - INLET
RH / From: JA759201 		- 1 Enquire
