Name: Cylinder Head (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Cylinder Head (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Low MT ROW) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Velar (2017+) [3.0 Diesel 24V DOHC TC] - Cylinder Head (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D...

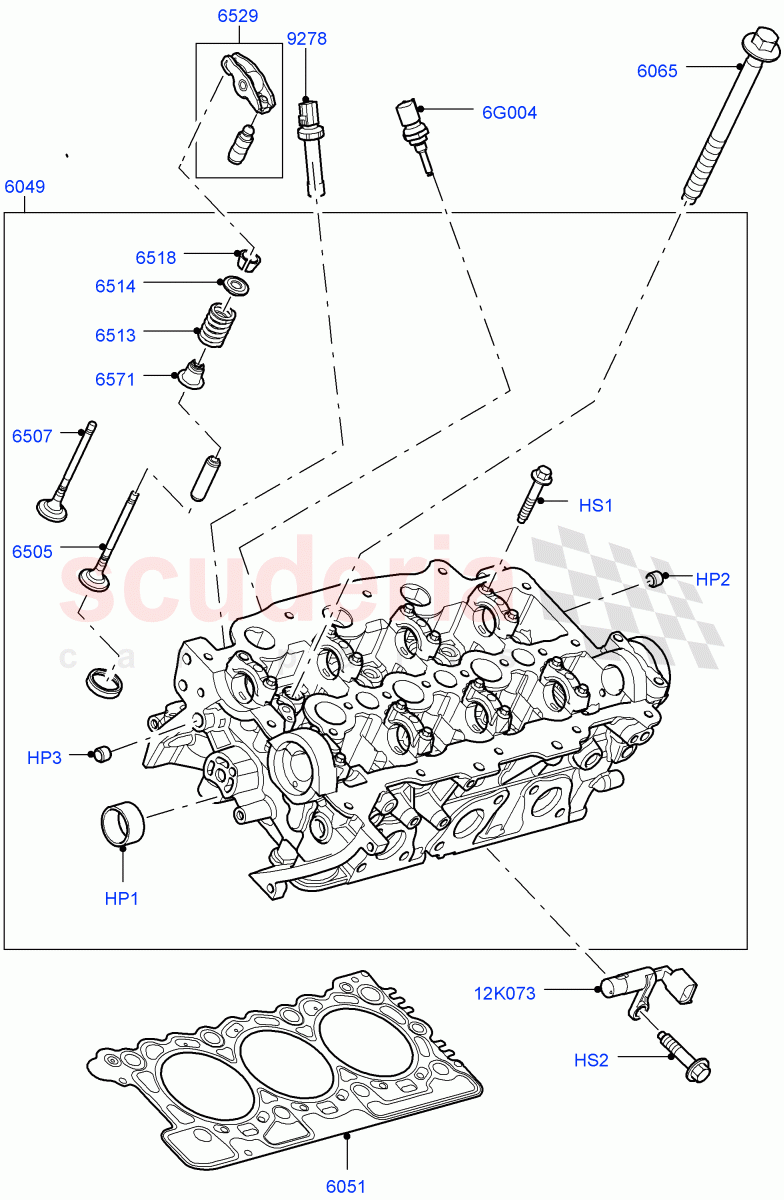

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000780	PLUG - ENGINE	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018831	SCREW	$3.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083672	CYLINDER HEAD	$2,418.97	To Order
	LR014249	CYLINDER HEAD	$2,479.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013063	GASKET-CYLINDER HEAD	$96.69	To Order
	LR013066	GASKET - CYLINDER HEAD	$96.69	To Order
	LR013070	GASKET - CYLINDER HEAD	$96.69	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	$30.97	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	$20.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071681	SPRING - VALVE	$11.97	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	1041831	COLLET - VALVE SPRING RETAINER	$6.96	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	$33.50	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	$13.28	To Order

Photo	Part No	Description	Price (each)	Stock
	1316119	SWITCH - OIL PRESSURE	$27.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063057	SENSOR - CYLINDER HEAD TEMPERATURE	$74.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013458	SENSOR - CAMSHAFT POSITION	$296.38	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HP1	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM	$6.28	4
HP2	LR000780	PLUG - ENGINE	LR000780 PLUG - ENGINE 10 MM	$1.08	2
HP3	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND Blanking,	$1.19	1
HS1	LR018831	SCREW IN STOCK	LR018831 SCREW M6 x 35MM IN STOCK	$3.12	36
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$3.31	2
6G004	LR063057	SENSOR - CYLINDER HEAD TEMPERATURE	LR063057 SENSOR - CYLINDER HEAD TEMPERATURE Sensor - Cylinder Head Temperature	$74.22	1
12K073	LR013458	SENSOR - CAMSHAFT POSITION	LR013458 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor	$296.38	1
6049	LR083672	CYLINDER HEAD	LR083672 CYLINDER HEAD LH	$2,418.97	1
6049	LR014249	CYLINDER HEAD	LR014249 CYLINDER HEAD RH	$2,479.82	1
6051	LR013063	GASKET-CYLINDER HEAD	LR013063 GASKET-CYLINDER HEAD Grade 2	$96.69	-
6051	LR013066	GASKET - CYLINDER HEAD	LR013066 GASKET - CYLINDER HEAD Grade 3	$96.69	-
6051	LR013070	GASKET - CYLINDER HEAD	LR013070 GASKET - CYLINDER HEAD Grade 4	$96.69	-
6051	LR013073	GASKET-CYLINDER HEAD	LR013073 GASKET-CYLINDER HEAD Grade 5	$96.69	-
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155	$4.30	16
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST	$30.97	12
6507	1311281	VALVE - INLET	1311281 VALVE - INLET	$20.62	12
6513	LR071681	SPRING - VALVE	LR071681 SPRING - VALVE	$11.97	24
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING	$3.69	24
6518	1041831	COLLET - VALVE SPRING RETAINER	1041831 COLLET - VALVE SPRING RETAINER	$6.96	48
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER	$33.50	24
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM	$13.28	24
9278	1316119	SWITCH - OIL PRESSURE	1316119 SWITCH - OIL PRESSURE	$27.59	1
