Rear Seat Back of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Rear Seat Back

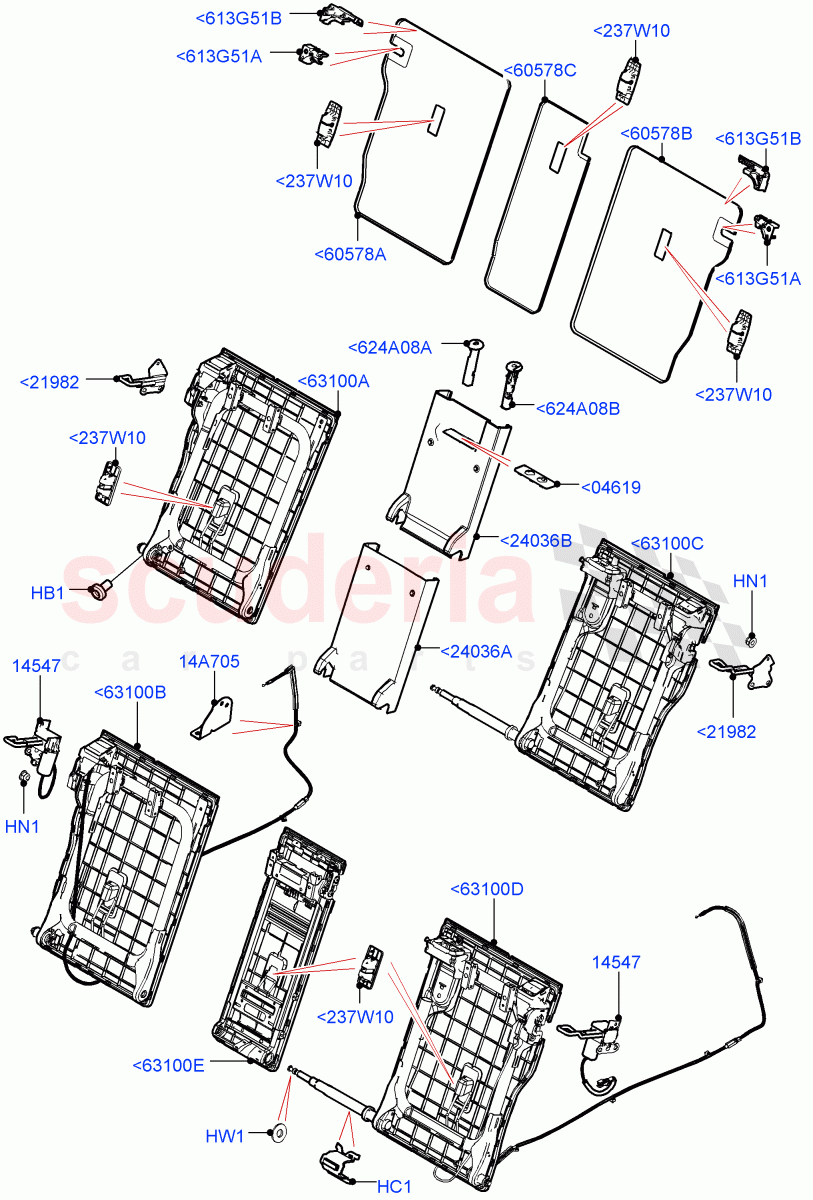

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EYG500230	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141849	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126313	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092440	MOTOR - SEAT BACK RECLINING	Enquire	To Order
	LR092441	MOTOR - SEAT BACK RECLINING	Enquire	To Order
	LR141409	MOTOR - SEAT BACK RECLINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR095212	BEZEL - USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092501	STRIKER - LATCH	Enquire	To Order
	LR092505	STRIKER - LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141809	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092455	COVER - TETHER SEAT BACK	Enquire	To Order
	LR131870	COVER - TETHER SEAT BACK	Enquire	To Order
	LR131872	COVER - TETHER SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092466	PANEL - ARMREST	Enquire	To Order
	LR141369	PANEL - ARMREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092468	PANEL - ARMREST	Enquire	To Order
	LR141613	PANEL - ARMREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141285	CARPET - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141312	CARPET - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141284	CARPET - REAR SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092493	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR114507	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR141388	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092492	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR114503	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR141389	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092495	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR092497	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR114493	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092494	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR092496	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR114491	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092503	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR092504	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order
	LR141385	FRAME - REAR SEAT BACK RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141786	COVER - CORNER PROTECTOR	Enquire	To Order
	LR141788	COVER - CORNER PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141790	COVER - CORNER PROTECTOR	Enquire	To Order
	LR141791	COVER - CORNER PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080990	BEZEL - HEADREST	Enquire	To Order
	LR080990	BEZEL - HEADREST	Enquire	To Order
	LR080991	BEZEL - HEADREST	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR080982	BEZEL - HEADREST	Enquire	To Order
	LR080982	BEZEL - HEADREST	Enquire	To Order
	LR059075	SLEEVE - HEADREST GUIDE	Enquire	To Order

...and 9 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<237W10	LR092455	COVER - TETHER SEAT BACK	LR092455 COVER - TETHER SEAT BACK Centre, RH/LH / To: LA999999	-	3	Enquire
<237W10	LR131870	COVER - TETHER SEAT BACK	LR131870 COVER - TETHER SEAT BACK RH/LH / From: MA000001	-	2	Enquire
<237W10	LR131872	COVER - TETHER SEAT BACK	LR131872 COVER - TETHER SEAT BACK Centre / From: MA000001	-	1	Enquire
<613G51A	LR141786	COVER - CORNER PROTECTOR	LR141786 COVER - CORNER PROTECTOR Front, Right Side Of Both Seats / From: MA000001	-	2	Enquire
<613G51A	LR141788	COVER - CORNER PROTECTOR	LR141788 COVER - CORNER PROTECTOR Front, Left Side Of Both Seats / From: MA000001	-	2	Enquire
<613G51B	LR141790	COVER - CORNER PROTECTOR	LR141790 COVER - CORNER PROTECTOR Rear, Right Side Of Both Seats / From: MA000001	-	2	Enquire
<613G51B	LR141791	COVER - CORNER PROTECTOR	LR141791 COVER - CORNER PROTECTOR Left Side Of Both Seats, Rear / From: MA000001	-	2	Enquire
<624A08A	LR080990	BEZEL - HEADREST	LR080990 BEZEL - HEADREST Nimbus / Non Locking / To: JA999999	-	3	Enquire
<624A08A	LR080990	BEZEL - HEADREST	LR080990 BEZEL - HEADREST Light Oyster/Ebony, Perforated Suede/Leather Trim / Non Locking / From: KA000001 / To: KA783627	-	3	Enquire
<624A08A	LR080991	BEZEL - HEADREST	LR080991 BEZEL - HEADREST Acorn / Non Locking / To: KA783627	-	3	Enquire
<624A08A	LR059080	BEZEL - HEADREST	LR059080 BEZEL - HEADREST Cirrus/Ebony / Non Locking / To: KA783627	-	3	Enquire
<624A08A	LR059080	BEZEL - HEADREST	LR059080 BEZEL - HEADREST Nimbus/Ebony, Windsor Leather Perforated / Non Locking / To: JA999999	-	3	Enquire
<624A08A	LR059080	BEZEL - HEADREST	LR059080 BEZEL - HEADREST Light Oyster/Ebony, Windsor Leather Perforated / Non Locking / From: KA000001 / To: KA783627	-	3	Enquire
<624A08A	LR123032	BEZEL - HEADREST	LR123032 BEZEL - HEADREST Oyster Beige / Non Locking / From: KA783628	-	3	Enquire
<624A08A	LR122993	SLEEVE - HEADREST GUIDE	LR122993 SLEEVE - HEADREST GUIDE Dapple Grey/Ebony / Non Locking / From: KA783628	-	3	Enquire
<624A08A	LR123033	BEZEL - HEADREST	LR123033 BEZEL - HEADREST Acorn / Non Locking / From: KA783628	-	3	Enquire
<624A08B	LR080982	BEZEL - HEADREST	LR080982 BEZEL - HEADREST Nimbus / Locking Type / To: JA999999	-	3	Enquire
<624A08B	LR080982	BEZEL - HEADREST	LR080982 BEZEL - HEADREST Light Oyster/Ebony, Perforated Suede/Leather Trim / Locking Type / From: KA000001 / To: KA783627	-	3	Enquire
<624A08B	LR059075	SLEEVE - HEADREST GUIDE	LR059075 SLEEVE - HEADREST GUIDE Ebony Interior / Locking Type / To: KA783627	-	3	Enquire
<624A08B	LR059075	SLEEVE - HEADREST GUIDE	LR059075 SLEEVE - HEADREST GUIDE Nimbus/Ebony, Windsor Leather Perforated / Locking Type / To: JA999999	-	3	Enquire
<624A08B	LR059075	SLEEVE - HEADREST GUIDE	LR059075 SLEEVE - HEADREST GUIDE Light Oyster/Ebony, Windsor Leather Perforated / Locking Type / From: KA000001 / To: KA783627	-	3	Enquire
<624A08B	LR080989	BEZEL - HEADREST	LR080989 BEZEL - HEADREST Acorn / Locking Type / To: KA783627	-	3	Enquire
<624A08B	LR123030	BEZEL - HEADREST	LR123030 BEZEL - HEADREST Oyster Beige / Locking Type / From: KA783628 / To: LA999999	-	3	Enquire
<624A08B	LR122992	SLEEVE - HEADREST GUIDE	LR122992 SLEEVE - HEADREST GUIDE Dapple Grey/Nimbus / Locking Type / From: KA783628 / To: LA999999	-	3	Enquire
<624A08B	LR123031	BEZEL - HEADREST	LR123031 BEZEL - HEADREST Acorn / Locking Type / From: KA783628 / To: LA999999	-	3	Enquire
<624A08B	LR154497	SLEEVE - HEADREST GUIDE	LR154497 SLEEVE - HEADREST GUIDE Oyster Beige / Locking Type / From: MA000001	-	3	Enquire
<624A08B	LR154499	SLEEVE - HEADREST GUIDE	LR154499 SLEEVE - HEADREST GUIDE Ebony/Eclipse / Locking Type / From: MA000001	-	3	Enquire
<624A08B	LR154500	SLEEVE - HEADREST GUIDE	LR154500 SLEEVE - HEADREST GUIDE Acorn / Locking Type / From: MA000001	-	3	Enquire
<04619	LR095212	BEZEL - USB PORT	LR095212 BEZEL - USB PORT Power Pro	-	1	Enquire
<21982	LR092501	STRIKER - LATCH	LR092501 STRIKER - LATCH Less Rear Seat Recliner / RH	-	1	Enquire
<21982	LR092505	STRIKER - LATCH	LR092505 STRIKER - LATCH Less Rear Seat Recliner / LH	-	1	Enquire
<24036A	LR092466	PANEL - ARMREST	LR092466 PANEL - ARMREST With Front Comfort Air Con (IHKA) / To: LA999999	-	1	Enquire
<24036A	LR141369	PANEL - ARMREST	LR141369 PANEL - ARMREST Power Pro, With Front Comfort Air Con (IHKA) / From: MA000001	-	1	Enquire
<24036B	LR092468	PANEL - ARMREST	LR092468 PANEL - ARMREST Premium Air Conditioning-Front/Rear, Rear Entertainment Screen / To: LA999999	-	1	Enquire
<24036B	LR141613	PANEL - ARMREST	LR141613 PANEL - ARMREST Power Plus, Premium Air Conditioning-Front/Rear / From: MA000001	-	1	Enquire
<60578A	LR141285	CARPET - REAR SEAT BACK	LR141285 CARPET - REAR SEAT BACK RH, 40% Seat / From: MA000001	-	1	Enquire
<60578B	LR141312	CARPET - REAR SEAT BACK	LR141312 CARPET - REAR SEAT BACK LH, 40% Seat / From: MA000001	-	1	Enquire
<60578C	LR141284	CARPET - REAR SEAT BACK	LR141284 CARPET - REAR SEAT BACK 20% Seat, Centre / From: MA000001	-	1	Enquire
<63100A	LR092493	FRAME - REAR SEAT BACK RETAINING	LR092493 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode / RH, 40% Seat / To: JA759572	-	1	Enquire
<63100A	LR114507	FRAME - REAR SEAT BACK RETAINING	LR114507 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode / RH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100A	LR141388	FRAME - REAR SEAT BACK RETAINING	LR141388 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode / RH, 40% Seat / From: MA000001	-	1	Enquire
<63100B	LR092492	FRAME - REAR SEAT BACK RETAINING	LR092492 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release / RH, 40% Seat / To: JA759572	-	1	Enquire
<63100B	LR114503	FRAME - REAR SEAT BACK RETAINING	LR114503 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release / RH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100B	LR141389	FRAME - REAR SEAT BACK RETAINING	LR141389 FRAME - REAR SEAT BACK RETAINING Less Electric Engine Battery, Rear Seat Remote Release / RH, 40% Seat / From: MA000001	-	1	Enquire
<63100B	LR141390	FRAME - REAR SEAT BACK RETAINING	LR141390 FRAME - REAR SEAT BACK RETAINING Electric Engine Battery-PHEV, Rear Seat Remote Release / RH, 40% Seat / From: MA000001	-	1	Enquire
<63100C	LR092495	FRAME - REAR SEAT BACK RETAINING	LR092495 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode, With Occupant Sensor / LH, 40% Seat / To: JA759572	-	1	Enquire
<63100C	LR092497	FRAME - REAR SEAT BACK RETAINING	LR092497 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode, Sensor - Occupant Classification / LH, 40% Seat / To: JA759572	-	1	Enquire
<63100C	LR114493	FRAME - REAR SEAT BACK RETAINING	LR114493 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode, Sensor-Occ W/out Pass Airbag Cutoff / LH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100C	LR114502	FRAME - REAR SEAT BACK RETAINING	LR114502 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode, Sensor - Occupant Classification / LH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100C	LR141400	FRAME - REAR SEAT BACK RETAINING	LR141400 FRAME - REAR SEAT BACK RETAINING Less Rear Seat Mode / LH, 40% Seat / From: MA000001	-	1	Enquire
<63100D	LR092494	FRAME - REAR SEAT BACK RETAINING	LR092494 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release, With Occupant Sensor / LH, 40% Seat / To: JA759572	-	1	Enquire
<63100D	LR092496	FRAME - REAR SEAT BACK RETAINING	LR092496 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release, Sensor - Occupant Classification / LH, 40% Seat / To: JA759572	-	1	Enquire
<63100D	LR114491	FRAME - REAR SEAT BACK RETAINING	LR114491 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release, With Occupant Sensor / LH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100D	LR114495	FRAME - REAR SEAT BACK RETAINING	LR114495 FRAME - REAR SEAT BACK RETAINING Rear Seat Remote Release, Sensor - Occupant Classification / LH, 40% Seat / From: JA759573 / To: LA999999	-	1	Enquire
<63100D	LR141401	FRAME - REAR SEAT BACK RETAINING	LR141401 FRAME - REAR SEAT BACK RETAINING Less Electric Engine Battery, Rear Seat Remote Release / LH, 40% Seat / From: MA000001	-	1	Enquire
<63100D	LR141402	FRAME - REAR SEAT BACK RETAINING	LR141402 FRAME - REAR SEAT BACK RETAINING Electric Engine Battery-PHEV, Rear Seat Remote Release / LH, 40% Seat / From: MA000001	-	1	Enquire
<63100E	LR092503	FRAME - REAR SEAT BACK RETAINING	LR092503 FRAME - REAR SEAT BACK RETAINING Less Rear Entertainment Screen, Power Base, Premium Air Conditioning-Front/Rear / 20% Seat, Centre / To: LA999999	-	1	Enquire
<63100E	LR092504	FRAME - REAR SEAT BACK RETAINING	LR092504 FRAME - REAR SEAT BACK RETAINING Less Rear Entertainment Screen, Power Pro, Premium Air Conditioning-Front/Rear / 20% Seat, Centre / To: LA999999	-	1	Enquire
<63100E	LR141385	FRAME - REAR SEAT BACK RETAINING	LR141385 FRAME - REAR SEAT BACK RETAINING 20% Seat, Centre / From: MA000001	-	1	Enquire
HB1	EYG500230	BOLT - HEX.HEAD	EYG500230 BOLT - HEX.HEAD For Seat Frame, M10 X 20MM	-	4	Enquire
HC1	LR141849	CLIP	LR141849 CLIP Power Plus, Premium Air Conditioning-Front/Rear / From: MA000001	-	1	Enquire
HN1	FY108046	NUT - HEX.	FY108046 NUT - HEX. M8	-	6	Enquire
HW1	LR126313	WASHER	LR126313 WASHER Seat Frame	-	1	Enquire
14A705	LR141809	BRACKET	LR141809 BRACKET Electric Engine Battery-PHEV / Cable Bracket / From: MA000001	-	1	Enquire
14547	LR092440	MOTOR - SEAT BACK RECLINING	LR092440 MOTOR - SEAT BACK RECLINING With Power Rear Seat Recliner / RH / To: LA999999	-	1	Enquire
14547	LR092441	MOTOR - SEAT BACK RECLINING	LR092441 MOTOR - SEAT BACK RECLINING With Power Rear Seat Recliner / LH / To: LA999999	-	1	Enquire
14547	LR141409	MOTOR - SEAT BACK RECLINING	LR141409 MOTOR - SEAT BACK RECLINING With Power Rear Seat Recliner / RH / From: MA000001	-	1	Enquire
14547	LR141410	MOTOR - SEAT BACK RECLINING	LR141410 MOTOR - SEAT BACK RECLINING With Power Rear Seat Recliner / LH / From: MA000001	-	1	Enquire
