Front Seat Back of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Front Seat Back

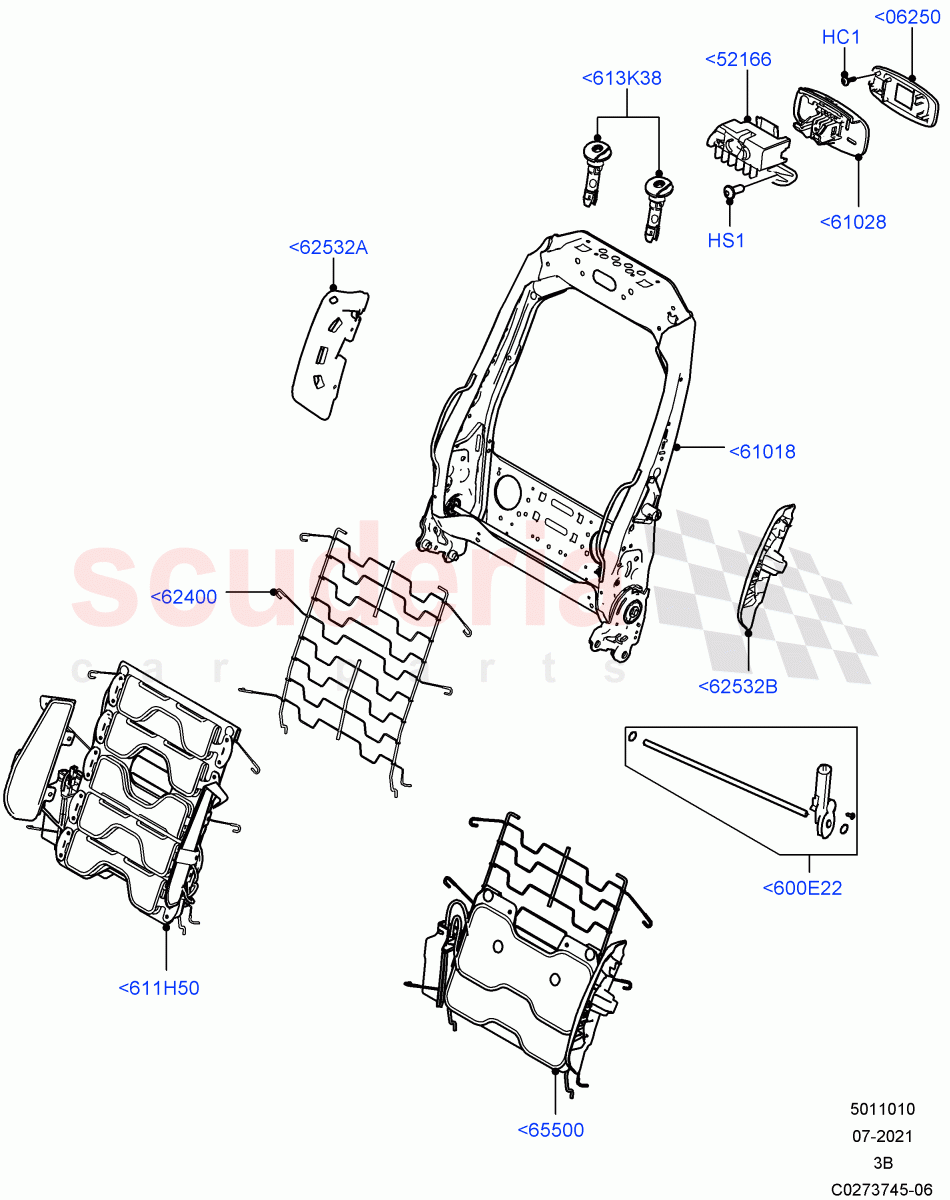

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR138647	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118864	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132920	BEZEL - SCREEN MOULDING	Enquire	To Order
	LR132917	BEZEL - SCREEN MOULDING	Enquire	To Order
	LR141214	BEZEL - SCREEN MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141415	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084017	FRAME - SEAT	Enquire	To Order
	LR084018	FRAME - SEAT	Enquire	To Order
	LR084019	FRAME - SEAT	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129748	HOLDER - IPAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080795	SUPPORT - FRONT SEAT SQUAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098715	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR154977	MOTOR - SEAT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080794	MASSAGER - SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074206	SLEEVE - HEADREST GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080809	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR128516	Support - Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080810	SUPPORT - SEAT BACK - LUMBAR	Enquire	To Order
	LR128517	Support - Seat	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<600E22	LR154977	MOTOR - SEAT ADJUSTER	LR154977 MOTOR - SEAT ADJUSTER RH/LH, Squab Recliner, Square Shaft / To: LA279254	-	2	Enquire
<611H50	LR080794	MASSAGER - SEAT	LR080794 MASSAGER - SEAT Seat Massage Front	-	2	Enquire
<613K38	LR074206	SLEEVE - HEADREST GUIDE	LR074206 SLEEVE - HEADREST GUIDE	-	4	Enquire
<06250	LR132920	BEZEL - SCREEN MOULDING	LR132920 BEZEL - SCREEN MOULDING Ebony Black/Ebony Black Interior, RSE System - Intergrated Tablet / RH/LH / From: MA000001	-	2	Enquire
<06250	LR132917	BEZEL - SCREEN MOULDING	LR132917 BEZEL - SCREEN MOULDING Light Oyster/Ebony, Perforated Suede/Leather Trim, RSE System - Intergrated Tablet / RH/LH / From: MA000001	-	2	Enquire
<06250	LR141214	BEZEL - SCREEN MOULDING	LR141214 BEZEL - SCREEN MOULDING Acorn, RSE System - Intergrated Tablet / RH/LH / From: MA000001	-	2	Enquire
<52166	LR141415	BRACKET - SUPPORT	LR141415 BRACKET - SUPPORT RSE System - Intergrated Tablet / RH/LH / From: MA000001	-	2	Enquire
<61018	LR084017	FRAME - SEAT	LR084017 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH, Please Consider Repair Using Repair Component LR154977 / To: JA706203	-	1	Enquire
<61018	LR084018	FRAME - SEAT	LR084018 FRAME - SEAT Less Seat Adjuster, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / To: JA706203	-	2	Enquire
<61018	LR084019	FRAME - SEAT	LR084019 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / To: JA706203	-	2	Enquire
<61018	LR084020	FRAME - SEAT	LR084020 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH, Please Consider Repair Using Repair Component LR154977 / To: JA706203	-	1	Enquire
<61018	LR108503	FRAME - SEAT	LR108503 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH, Please Consider Repair Using Repair Component LR154977 / From: JA706204 / To: KA235635	-	1	Enquire
<61018	LR108502	FRAME - SEAT	LR108502 FRAME - SEAT Less Seat Adjuster, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: JA706204 / To: KA235635	-	2	Enquire
<61018	LR108501	FRAME - SEAT	LR108501 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Driver Seat, Includes Seat Motors, Please Consider Repair Using Repair Component LR154977 / From: JA706204 / To: KA235635	-	1	Enquire
<61018	LR108500	FRAME - SEAT	LR108500 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH, Please Consider Repair Using Repair Component LR154977 / From: JA706204 / To: KA235635	-	1	Enquire
<61018	LR133475	FRAME - SEAT	LR133475 FRAME - SEAT Electric Front Seat Adj Drv Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Passenger Seat, Please Consider Repair Using Repair Component LR154977 / From: KA235636 / To: LA279254	-	1	Enquire
<61018	LR133995	FRAME - SEAT	LR133995 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH, Please Consider Repair Using Repair Component LR154977 / From: KA235636 / To: LA279254	-	1	Enquire
<61018	LR133994	FRAME - SEAT	LR133994 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH, Please Consider Repair Using Repair Component LR154977 / From: KA235636 / To: LA279254	-	1	Enquire
<61018	LR133481	FRAME - SEAT	LR133481 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Driver Seat, Includes Seat Motors, Please Consider Repair Using Repair Component LR154977 / From: KA235636 / To: LA279254	-	1	Enquire
<61018	LR140456	FRAME - SEAT	LR140456 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / LH / From: LA279255	-	1	Enquire
<61018	LR140455	FRAME - SEAT	LR140455 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Driver Seat, Includes Seat Motors, Please Consider Repair Using Repair Component LR154977 / From: LA279255	-	1	Enquire
<61018	LR140454	FRAME - SEAT	LR140454 FRAME - SEAT Less Seat Adjuster, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: LA279255	-	2	Enquire
<61018	LR140454	FRAME - SEAT	LR140454 FRAME - SEAT Electric Front Seat Adj Drv Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Passenger Seat, Please Consider Repair Using Repair Component LR154977 / From: LA279255	-	1	Enquire
<61018	LR140453	FRAME - SEAT	LR140453 FRAME - SEAT Seat Cushion Manual Fore/Aft, Seat Cushion Manual Height / RH / From: LA279255	-	1	Enquire
<61018	LR133475	FRAME - SEAT	LR133475 FRAME - SEAT Less Seat Adjuster, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Please Consider Repair Using Repair Component LR154977, RH/LH / From: KA235636 / To: LA279254	-	2	Enquire
<61018	LR108502	FRAME - SEAT	LR108502 FRAME - SEAT Electric Front Seat Adj Drv Memory, Seat Cushion Power Fore/Aft, Seat Cushion Power Height / Includes Seat Motors, Passenger Seat, Please Consider Repair Using Repair Component LR154977 / From: JA706204 / To: KA235635	-	1	Enquire
<61028	LR129748	HOLDER - IPAD	LR129748 HOLDER - IPAD RSE System - Intergrated Tablet / RH/LH / From: MA000001	-	2	Enquire
<62400	LR080795	SUPPORT - FRONT SEAT SQUAB	LR080795 SUPPORT - FRONT SEAT SQUAB Less Seat Lumbar	-	2	Enquire
<62532A	LR080809	SUPPORT - SEAT BACK - LUMBAR	LR080809 SUPPORT - SEAT BACK - LUMBAR RH / To: KA227790	-	2	Enquire
<62532A	LR128516	Support - Seat	LR128516 Support - Seat RH / From: KA227791	-	2	Enquire
<62532B	LR080810	SUPPORT - SEAT BACK - LUMBAR	LR080810 SUPPORT - SEAT BACK - LUMBAR LH / To: KA227790	-	2	Enquire
<62532B	LR128517	Support - Seat	LR128517 Support - Seat LH / From: KA227791	-	2	Enquire
<65500	LR098715	SUPPORT - SEAT BACK - LUMBAR	LR098715 SUPPORT - SEAT BACK - LUMBAR Seat Lumbar - 4 Way / RH/LH / From: LA000001	-	2	Enquire
HC1	LR138647	CLIP	LR138647 CLIP RSE System - Intergrated Tablet / From: MA000001	-	2	Enquire
HS1	LR118864	SCREW	LR118864 SCREW RSE System - Intergrated Tablet / M6 X 16 / From: MA000001	-	2	Enquire
