Name: Rear Springs And Shock Absorbers (With Four Corner Air Suspension) ((V) FROMMA000001)
Rating: 4.5 (1 reviews)

View All

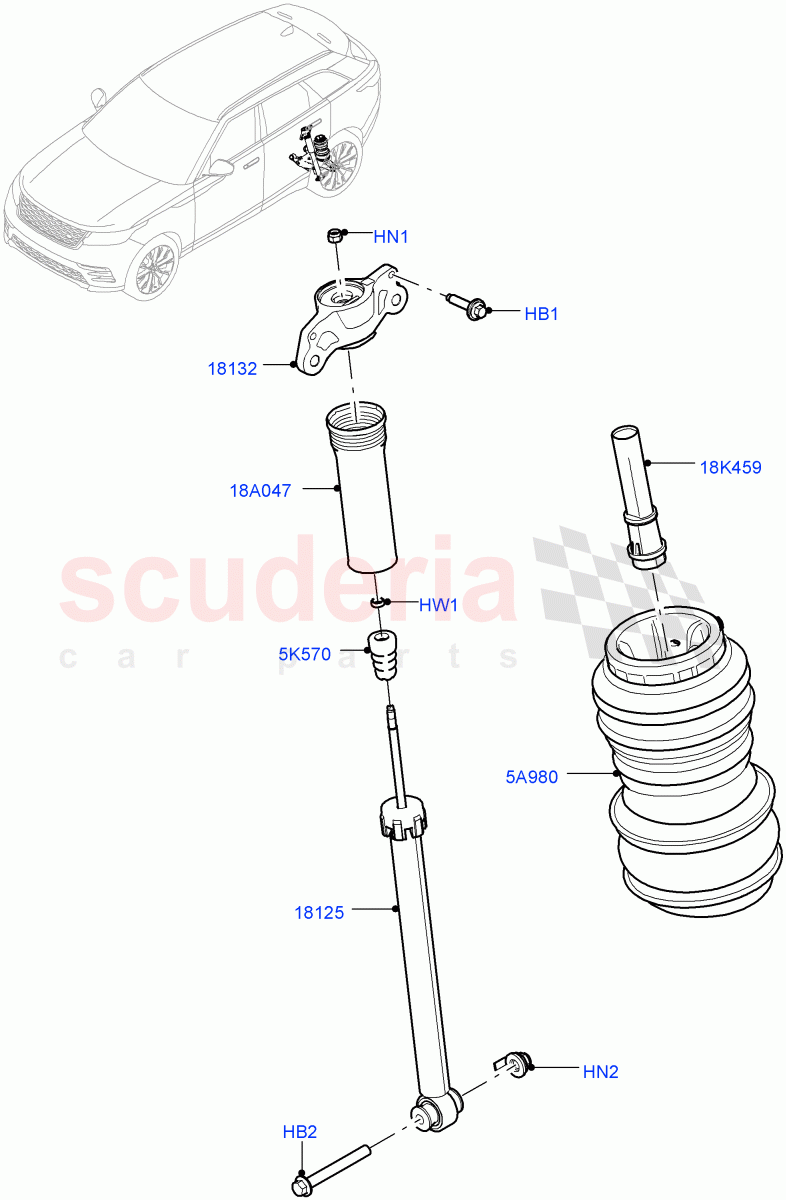

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114980	BOLT	$2.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034230	BOLT	$9.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034278	NUT	$4.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090669	NUT - FLAG TYPE	$4.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090608	WASHER	$2.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR147263	SHOCK ABSORBER	$841.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141897	BUMPER - SHOCK ABSORBER	$13.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090657	BOOT - SHOCK ABSORBER	$22.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093603	SLEEVE - PROTECTIVE	$24.54	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR114980	BOLT	LR114980 BOLT Bolt And Washer, Hexagonal Head, M12 x 55MM / From: MA000001	$2.88	4
HB2	LR034230	BOLT	LR034230 BOLT Hexagonal Head, M14 x 120 / From: MA000001	$9.50	2
HN1	LR034278	NUT	LR034278 NUT M12 x 1 / From: MA000001	$4.78	2
HN2	LR090669	NUT - FLAG TYPE	LR090669 NUT - FLAG TYPE M14 / From: MA000001	$4.09	2
HW1	LR090608	WASHER	LR090608 WASHER RH/LH / From: MA000001	$2.17	2
5A980	LR090653	SPRING - AIR SUSPENSION	LR090653 SPRING - AIR SUSPENSION RH / From: MA000001	$514.90	1
5A980	LR090654	SPRING - AIR SUSPENSION	LR090654 SPRING - AIR SUSPENSION LH / From: MA000001	$514.90	1
5K570	LR141897	BUMPER - SHOCK ABSORBER	LR141897 BUMPER - SHOCK ABSORBER RH/LH / From: MA000001	$13.22	2
18A047	LR090657	BOOT - SHOCK ABSORBER	LR090657 BOOT - SHOCK ABSORBER RH/LH / From: MA000001	$22.49	2
18K459	LR093603	SLEEVE - PROTECTIVE	LR093603 SLEEVE - PROTECTIVE RH/LH / From: MA000001	$24.54	2
18125	LR147263	SHOCK ABSORBER	LR147263 SHOCK ABSORBER RH/LH / From: MA000001	$841.21	2
18132	LR141904	BRACKET - SHOCK ABSORBER	LR141904 BRACKET - SHOCK ABSORBER LH / From: MA000001	$95.40	1
18132	LR141895	BRACKET - SHOCK ABSORBER	LR141895 BRACKET - SHOCK ABSORBER RH / From: MA000001	$95.40	1

Rear Springs And Shock Absorbers (With Four Corner Air Suspension) ((V) Fromma000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]
