Front Suspension Struts And Springs (With Standard Duty Coil Spring Susp) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Front Suspension Struts And Springs (With Standard Duty Coil Spring Susp) ((V) FROMMA000001)

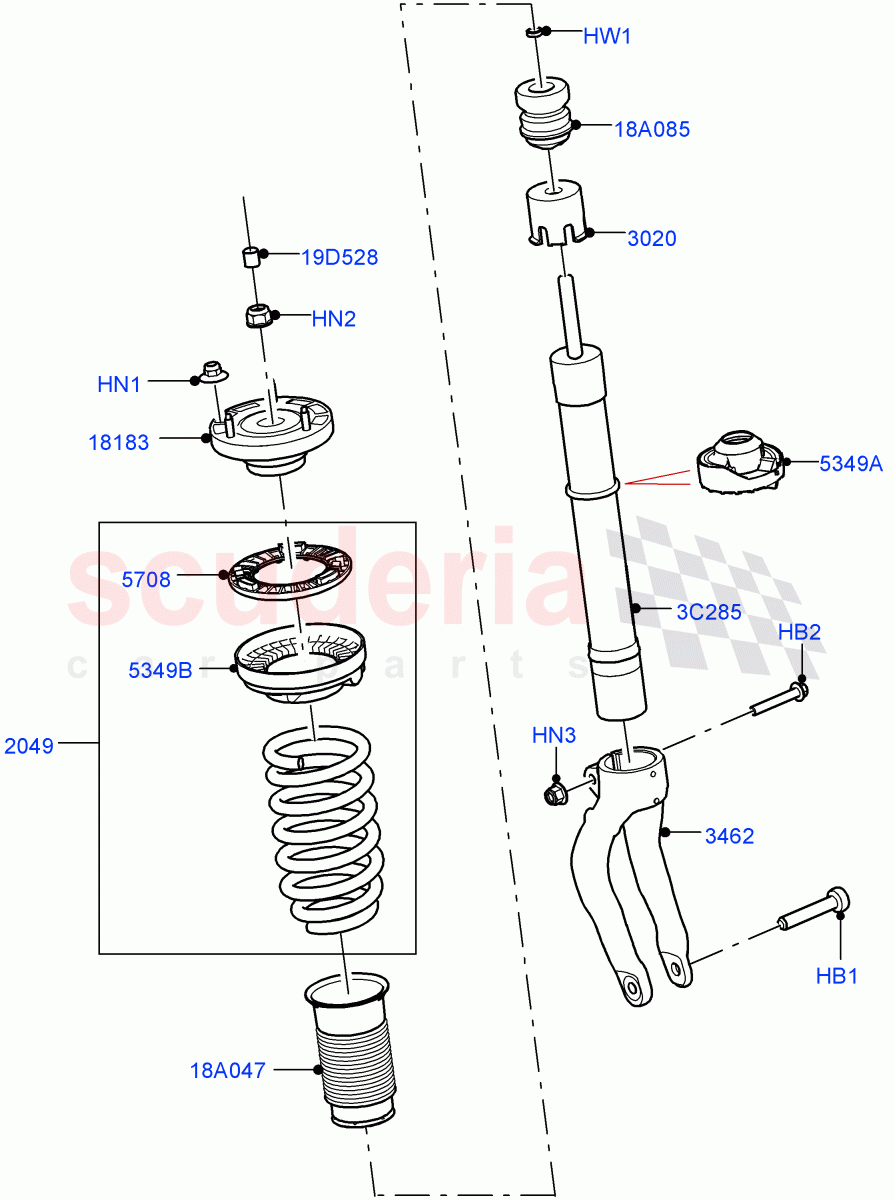

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR090641	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FC110136	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033202	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034278	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090608	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156307	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order
	LR156308	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order
	LR156301	KIT - SUSPENSION SPRING AND PAD	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR156321	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146325	YOKE - SUSPENSION	Enquire	To Order
	LR146326	YOKE - SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090639	SPACER - FRONT SPRING	Enquire	To Order
	LR090640	SPACER - FRONT SPRING	Enquire	To Order
	LR090638	SPACER - FRONT SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090635	MOUNTING - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141933	SHOCK ABSORBER	Enquire	To Order
	LR141932	SHOCK ABSORBER	Enquire	To Order
	LR141931	SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR156349	PAD - SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141936	PAD - ANTI-SQUEAK	Enquire	To Order
	LR141935	PAD - ANTI-SQUEAK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141926	BOOT - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090637	BUMPER - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126480	CAP - SHOCK ABSORBER SECURING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR090641	BOLT	LR090641 BOLT M14 X 78 / From: MA000001	-	2	Enquire
HB2	FC110136	BOLT	FC110136 BOLT Hexagonal Head, M10X65 / From: MA000001	-	2	Enquire
HN1	LR033202	NUT	LR033202 NUT M8 / From: MA000001	-	6	Enquire
HN2	LR034278	NUT	LR034278 NUT M12 x 1 / From: MA000001	-	2	Enquire
HN3	FY110056	NUT	FY110056 NUT M10 / From: MA000001	-	2	Enquire
HW1	LR090608	WASHER	LR090608 WASHER M12, Shock Absorber / From: MA000001	-	2	Enquire
3C285	LR141933	SHOCK ABSORBER	LR141933 SHOCK ABSORBER Less Electric Engine Battery, With Continuous Variable Damping / From: MA000001	-	2	Enquire
3C285	LR141932	SHOCK ABSORBER	LR141932 SHOCK ABSORBER Electric Engine Battery-PHEV, With Continuous Variable Damping / From: MA000001	-	2	Enquire
3C285	LR141931	SHOCK ABSORBER	LR141931 SHOCK ABSORBER Less Adaptive Damping / From: MA000001	-	2	Enquire
18A047	LR141926	BOOT - SHOCK ABSORBER	LR141926 BOOT - SHOCK ABSORBER From: MA000001	-	2	Enquire
18A085	LR090637	BUMPER - SHOCK ABSORBER	LR090637 BUMPER - SHOCK ABSORBER From: MA000001	-	2	Enquire
19D528	LR126480	CAP - SHOCK ABSORBER SECURING	LR126480 CAP - SHOCK ABSORBER SECURING From: MA000001	-	2	Enquire
2049	LR156307	KIT - SUSPENSION SPRING AND PAD	LR156307 KIT - SUSPENSION SPRING AND PAD 2.0L AJ21D4 Diesel Mid, Front Spring Load Class-A / LH / From: MA000001	-	1	Enquire
2049	LR156308	KIT - SUSPENSION SPRING AND PAD	LR156308 KIT - SUSPENSION SPRING AND PAD 2.0L I4 Mid DOHC AJ200 Petrol, Front Spring Load Class-B / LH / From: MA000001	-	1	Enquire
2049	LR156301	KIT - SUSPENSION SPRING AND PAD	LR156301 KIT - SUSPENSION SPRING AND PAD 2.0L I4 Mid DOHC AJ200 Petrol, Front Spring Load Class-A / RH / From: MA000001	-	1	Enquire
2049	LR156302	KIT - SUSPENSION SPRING AND PAD	LR156302 KIT - SUSPENSION SPRING AND PAD 2.0L I4 Mid DOHC AJ200 Petrol, Front Spring Load Class-B / RH / From: MA000001	-	1	Enquire
2049	LR156309	KIT - SUSPENSION SPRING AND PAD	LR156309 KIT - SUSPENSION SPRING AND PAD 2.0L AJ21D4 Diesel Mid, Front Spring Load Class-C / LH / From: MA000001	-	1	Enquire
2049	LR156303	KIT - SUSPENSION SPRING AND PAD	LR156303 KIT - SUSPENSION SPRING AND PAD 2.0L I4 Mid DOHC AJ200 Petrol, Front Spring Load Class-C / RH / From: MA000001	-	1	Enquire
2049	LR156310	KIT - SUSPENSION SPRING AND PAD	LR156310 KIT - SUSPENSION SPRING AND PAD Front Spring Load Class-D / LH / From: MA000001	-	1	Enquire
2049	LR156304	KIT - SUSPENSION SPRING AND PAD	LR156304 KIT - SUSPENSION SPRING AND PAD Front Spring Load Class-D / RH / From: MA000001	-	1	Enquire
2049	LR156311	KIT - SUSPENSION SPRING AND PAD	LR156311 KIT - SUSPENSION SPRING AND PAD 3.0L AJ20D6 Diesel High, Front Spring Load Class-E, With Continuous Variable Damping / LH / From: MA000001	-	1	Enquire
2049	LR156305	KIT - SUSPENSION SPRING AND PAD	LR156305 KIT - SUSPENSION SPRING AND PAD 3.0L AJ20P6 Petrol High, Front Spring Load Class-E, With Continuous Variable Damping / RH / From: MA000001	-	1	Enquire
2049	LR156312	KIT - SUSPENSION SPRING AND PAD	LR156312 KIT - SUSPENSION SPRING AND PAD 3.0L AJ20P6 Petrol High, Front Spring Load Class-F, With Continuous Variable Damping / LH / From: MA000001	-	1	Enquire
2049	LR156306	KIT - SUSPENSION SPRING AND PAD	LR156306 KIT - SUSPENSION SPRING AND PAD 3.0L AJ20D6 Diesel High, Front Spring Load Class-F, With Continuous Variable Damping / RH / From: MA000001	-	1	Enquire
3020	LR156321	BUMP STOP	LR156321 BUMP STOP From: MA000001	-	1	Enquire
3462	LR146325	YOKE - SUSPENSION	LR146325 YOKE - SUSPENSION RH, Shock Absorber / From: MA000001	-	1	Enquire
3462	LR146326	YOKE - SUSPENSION	LR146326 YOKE - SUSPENSION LH, Shock Absorber / From: MA000001	-	1	Enquire
5349A	LR156349	PAD - SUSPENSION SPRING	LR156349 PAD - SUSPENSION SPRING Lower / From: MA000001	-	1	Enquire
5349B	LR141936	PAD - ANTI-SQUEAK	LR141936 PAD - ANTI-SQUEAK Thin, Upper / From: MA000001	-	1	Enquire
5349B	LR141935	PAD - ANTI-SQUEAK	LR141935 PAD - ANTI-SQUEAK Thick, Upper / From: MA000001	-	1	Enquire
5708	LR090639	SPACER - FRONT SPRING	LR090639 SPACER - FRONT SPRING RH, Angled Spacer, Please Inspect Original Part Before Ordering / From: MA000001	-	1	Enquire
5708	LR090640	SPACER - FRONT SPRING	LR090640 SPACER - FRONT SPRING LH, Angled Spacer, Please Inspect Original Part Before Ordering / From: MA000001	-	1	Enquire
5708	LR090638	SPACER - FRONT SPRING	LR090638 SPACER - FRONT SPRING Non Angled Spacer, Please Inspect Original Part Before Ordering, RH/LH / From: MA000001	-	1	Enquire
18183	LR090635	MOUNTING - SHOCK ABSORBER	LR090635 MOUNTING - SHOCK ABSORBER From: MA000001	-	2	Enquire
