Name: Inlet Manifold (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol)
Rating: 5.0 (1 reviews)

Inlet Manifold (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol)

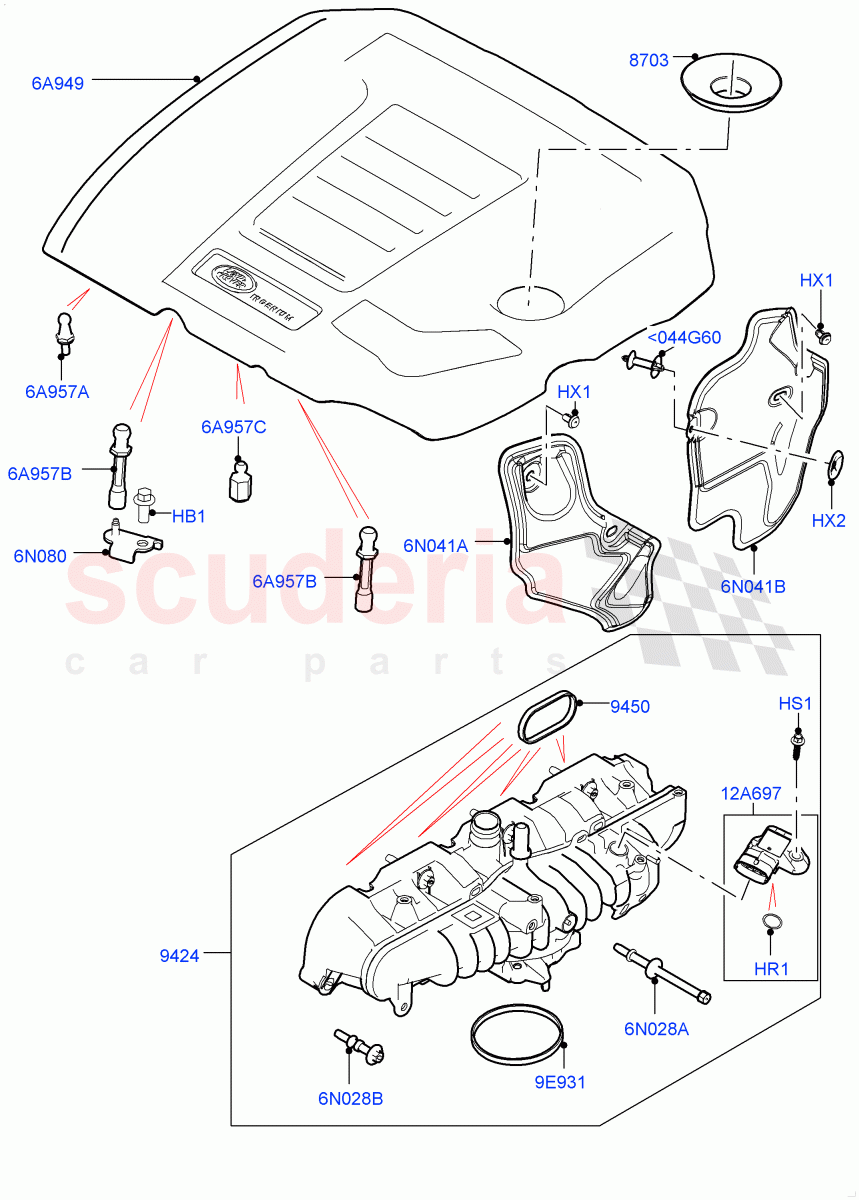

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR095783	O-RING	$4.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500810	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132382	WASHER - DRAIN PLUG	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074074	OIL SPILL GAITER	$12.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091533	INLET MANIFOLD WITH INTERCOOLER	$699.50	To Order
	LR106371	INLET MANIFOLD WITH INTERCOOLER	$729.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091766	GASKET - INTAKE MANIFOLD	$11.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091892	COVER - ENGINE TOP	$290.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091899	BRACKET - ENGINE COVER	$22.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074073	GASKET - THROTTLE	$15.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	$134.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038978	STUD - BALL	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082528	STUD - BALL	$7.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091895	STUD - BALL	$4.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091773	BOLT - SPECIAL	$6.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074085	BOLT - SPECIAL	$4.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093491	INSULATOR - CYLINDER HEAD	$24.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093492	INSULATOR - CYLINDER HEAD	$27.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106169	PIN - TRIM	$1.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<044G60	LR106169	PIN - TRIM	LR106169 PIN - TRIM Insulator, Pin 6.5 X 0.8 - 2 + 5 X 0.8	$1.07	1
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, Stud IN STOCK	$2.23	1
HR1	LR095783	O-RING IN STOCK	LR095783 O-RING 7.5MM, MAP Sensor IN STOCK	$4.47	1
HS1	RYP500810	SCREW	RYP500810 SCREW Hexagonal Head, M5 x 20MM, Sensor	$0.59	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5, Insulator	$2.92	3
HX2	LR132382	WASHER - DRAIN PLUG	LR132382 WASHER - DRAIN PLUG 25 x 7, Push On	$1.24	1
6A949	LR091892	COVER - ENGINE TOP	LR091892 COVER - ENGINE TOP Engine	$290.91	1
6A957A	LR038978	STUD - BALL	LR038978 STUD - BALL Engine Cover	$3.65	1
6A957B	LR082528	STUD - BALL IN STOCK	LR082528 STUD - BALL Ball Stud, Engine Cover IN STOCK	$7.97	2
6A957C	LR091895	STUD - BALL	LR091895 STUD - BALL Engine Cover	$4.30	1
6N028A	LR091773	BOLT - SPECIAL	LR091773 BOLT - SPECIAL M6 x 97MM, Manifold To Cylinder Head, Special Bolt	$6.65	1
6N028B	LR074085	BOLT - SPECIAL	LR074085 BOLT - SPECIAL M6 x 42MM, Manifold To Cylinder Head	$4.84	6
6N041A	LR093491	INSULATOR - CYLINDER HEAD	LR093491 INSULATOR - CYLINDER HEAD Front	$24.20	1
6N041B	LR093492	INSULATOR - CYLINDER HEAD	LR093492 INSULATOR - CYLINDER HEAD Rear	$27.27	1
6N080	LR091899	BRACKET - ENGINE COVER	LR091899 BRACKET - ENGINE COVER Stud	$22.84	1
9E931	LR074073	GASKET - THROTTLE	LR074073 GASKET - THROTTLE Throttle Body To Intake	$15.25	1
12A697	LR091865	SENSOR - AIR TEMPERATURE & PRESSURE	LR091865 SENSOR - AIR TEMPERATURE & PRESSURE Pressure	$134.03	1
8703	LR074074	OIL SPILL GAITER	LR074074 OIL SPILL GAITER Oil Spill	$12.79	1
9424	LR091533	INLET MANIFOLD WITH INTERCOOLER	LR091533 INLET MANIFOLD WITH INTERCOOLER To: JA747153	$699.50	1
9424	LR106371	INLET MANIFOLD WITH INTERCOOLER	LR106371 INLET MANIFOLD WITH INTERCOOLER From: JA747154	$729.24	1
9450	LR091766	GASKET - INTAKE MANIFOLD IN STOCK	LR091766 GASKET - INTAKE MANIFOLD Inlet Manifold IN STOCK	$11.79	4

Inlet Manifold (2.0L I4 Mid Dohc Aj200 Petrol, 2.0L I4 High Dohc Aj200 Petrol)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Inlet Manifold (2.0L I4 Mid DOHC AJ200 Petrol, 2.0L I4 High DOHC AJ200 Petrol)
