Cylinder Block And Plugs (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Cylinder Block And Plugs (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR101794 BOLT $1.62 To Order
Photo Part No Description Price (each) Stock
LR125667 CLIP - TRIM $1.61 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.36 To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.24 To Order
Photo Part No Description Price (each) Stock
LR163193 PLUG - ENGINE $4.08 To Order
Photo Part No Description Price (each) Stock
LR163194 PLUG - ENGINE $10.79 To Order
Photo Part No Description Price (each) Stock
LR163195 PLUG - ENGINE $10.79 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR073649 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR101795 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR132379 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
LR115700 COVER - CYLINDER FRONT $126.45 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $188.42 IN STOCK
Photo Part No Description Price (each) Stock
LR107013 KIT - "O" RING $13.79 To Order
Photo Part No Description Price (each) Stock
LR109352 NOZZLE - PISTON COOLING $32.16 To Order
Photo Part No Description Price (each) Stock
LR118109 SEAL - CRANKSHAFT OIL - FRONT $34.52 To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE $41.83 To Order
Photo Part No Description Price (each) Stock
LR107548 CLIP - CABLE $5.29 To Order
Photo Part No Description Price (each) Stock
LR148201 CONNECTOR - VACUUM TUBE $51.53 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
LR057802 DOWEL - PIN $3.36 IN STOCK
Photo Part No Description Price (each) Stock
LR092083 INSULATOR PAD - CYLINDER BLOCK $72.31 To Order
Photo Part No Description Price (each) Stock
LR091794 INSULATOR - ENGINE COMPARTMENT $41.55 To Order
Photo Part No Description Price (each) Stock
LR155116 SENSOR - ENGINE KNOCK $110.58 To Order
LR155116 SENSOR - ENGINE KNOCK $110.58 To Order
Photo Part No Description Price (each) Stock
LR155117 SENSOR - ENGINE KNOCK $136.16 To Order
LR155117 SENSOR - ENGINE KNOCK $136.16 To Order
View All

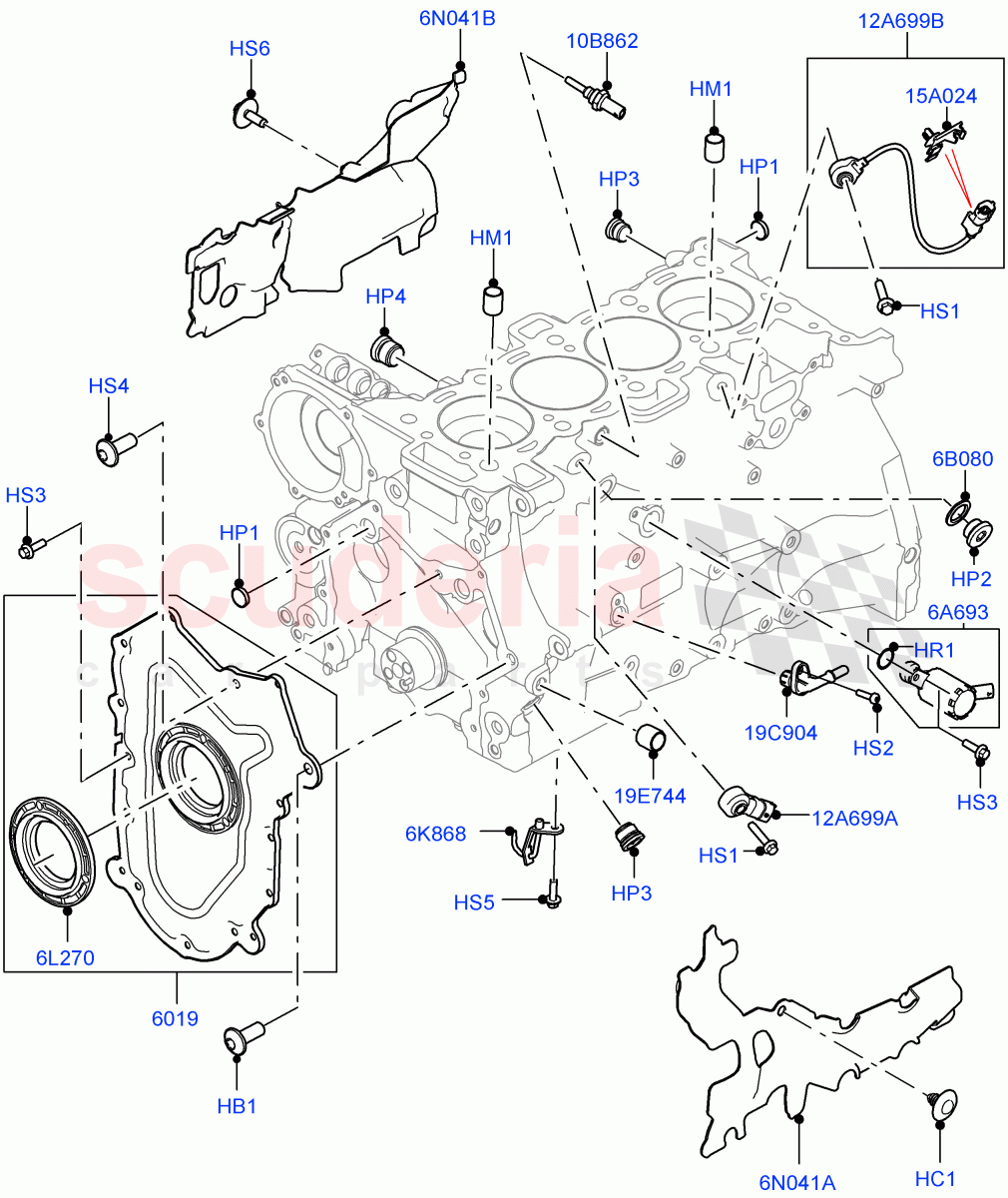

Cylinder Block And Plugs (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR101794
BOLT
M10 X 25MM, Torx / From: MA000001 		$1.62 1
HC1 LR125667
CLIP - TRIM
5.8 X 4.5-8, Insulator / From: MA000001 		$1.61 1
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell / From: MA000001 		$2.36 2
HP1 LR073636
PLUG - BLANKING
18MM, Blanking / From: MA000001 		$4.24 4
HP2 LR163193
PLUG - ENGINE
LH Side, M22 X 1.5MM / From: MA000001 		$4.08 1
HP3 LR163194
PLUG - ENGINE
M14 x 9 mm / From: MA000001 		$10.79 2
HP4 LR163195
PLUG - ENGINE
M18 x 1.5, RH Side / From: MA000001 		$10.79 1
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling / From: MA000001
IN STOCK 		$4.47 1
HS1 LR073649
SCREW
M8 x 40MM / From: MA000001 		$2.40 2
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: MA000001 		$1.36 1
HS3 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling / From: MA000001
IN STOCK 		$1.54 1
HS3 LR073655
SCREW
Cover, Hexagonal Head, M6 X 20MM / From: MA000001
IN STOCK 		$1.54 12
HS4 LR101795
SCREW
M8X25, Torx / From: MA000001 		$1.16 1
HS5 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet / From: MA000001 		$1.53 4
HS6 LR132379
SCREW
M6 X 20MM / From: MA000001 		$0.73 1
6A693 LR073684
VALVE - PISTON OIL COOLNG
From: MA000001
IN STOCK 		$188.42 1
6B080 LR107013
KIT - "O" RING
From: MA000001 		$13.79 1
6K868 LR109352
NOZZLE - PISTON COOLING
From: MA000001 		$32.16 4
6L270 LR118109
SEAL - CRANKSHAFT OIL - FRONT
From: MA000001 		$34.52 1
6N041A LR092083
INSULATOR PAD - CYLINDER BLOCK
LH, Cylinder Block / From: MA000001 		$72.31 1
6N041B LR091794
INSULATOR - ENGINE COMPARTMENT
RH, Cylinder Block / From: MA000001 		$41.55 1
10B862 LR074067
SENSOR - ENGINE TEMPERATURE
From: MA000001 		$41.83 1
12A699A LR155116
SENSOR - ENGINE KNOCK
Front / From: MA000001 / To: MA302367 		$110.58 1
12A699A LR155116
SENSOR - ENGINE KNOCK
Front / From: MA302368 		$110.58 1
12A699B LR155117
SENSOR - ENGINE KNOCK
Rear / From: MA000001 / To: MA302367 		$136.16 1
12A699B LR155117
SENSOR - ENGINE KNOCK
Rear / From: MA302368 		$136.16 1
15A024 LR107548
CLIP - CABLE
Clip / From: MA000001 		$5.29 1
19C904 LR148201
CONNECTOR - VACUUM TUBE
From: MA000001 		$51.53 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.36 2
19E744 LR057802
DOWEL - PIN
Air Conditioning Compressor Bracket,
IN STOCK 		$3.36 1
6019 LR115700
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: MA000001 		$126.45 1
