Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) ((V) FROMMA000001)

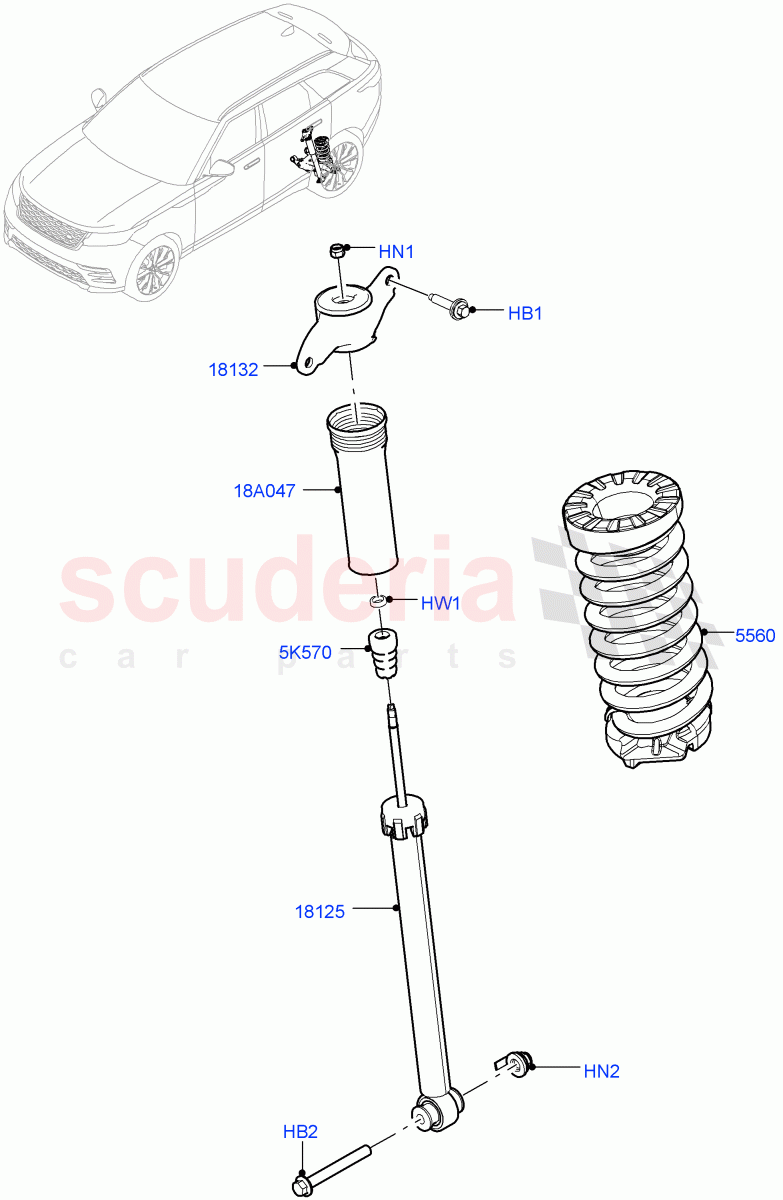

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR114980	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034230	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034278	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090669	NUT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090608	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141914	SPRING - COIL	Enquire	To Order
	LR141913	SPRING - COIL	Enquire	To Order
	LR141912	SPRING - COIL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR147262	SHOCK ABSORBER	Enquire	To Order
	LR138055	SHOCK ABSORBER	Enquire	To Order
	LR141900	SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR141904	BRACKET - SHOCK ABSORBER	Enquire	To Order
	LR141895	BRACKET - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141898	BUMPER - SHOCK ABSORBER	Enquire	To Order
	LR147288	BUMPER - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090657	BOOT - SHOCK ABSORBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR114980	BOLT	LR114980 BOLT Bolt And Washer, Hexagonal Head, M12 x 55MM / From: MA000001	-	4	Enquire
HB2	LR034230	BOLT	LR034230 BOLT Hexagonal Head, M14 x 120 / From: MA000001	-	2	Enquire
HN1	LR034278	NUT	LR034278 NUT M12 x 1 / From: MA000001	-	2	Enquire
HN2	LR090669	NUT - FLAG TYPE	LR090669 NUT - FLAG TYPE M14 / From: MA000001	-	2	Enquire
HW1	LR090608	WASHER	LR090608 WASHER RH/LH / From: MA000001	-	2	Enquire
5K570	LR141898	BUMPER - SHOCK ABSORBER	LR141898 BUMPER - SHOCK ABSORBER With Continuous Variable Damping / RH/LH / From: MA000001	-	2	Enquire
5K570	LR147288	BUMPER - SHOCK ABSORBER	LR147288 BUMPER - SHOCK ABSORBER Less Adaptive Damping / RH/LH / From: MA000001	-	2	Enquire
18A047	LR090657	BOOT - SHOCK ABSORBER	LR090657 BOOT - SHOCK ABSORBER RH/LH / From: MA000001	-	2	Enquire
5560	LR141914	SPRING - COIL	LR141914 SPRING - COIL Rear Spring Load Class-A / Purple / Brown / Red / From: MA000001	-	2	Enquire
5560	LR141913	SPRING - COIL	LR141913 SPRING - COIL Rear Spring Load Class-B / Purple / Brown / Yellow / From: MA000001	-	2	Enquire
5560	LR141912	SPRING - COIL	LR141912 SPRING - COIL Rear Spring Load Class-C / Purple / Brown / Blue / From: MA000001	-	2	Enquire
5560	LR141911	SPRING - COIL	LR141911 SPRING - COIL Rear Spring Load Class-D / Purple / Brown / Green / From: MA000001	-	2	Enquire
5560	LR141910	SPRING - COIL	LR141910 SPRING - COIL Rear Spring Load Class-E / Purple / Brown / White / From: MA000001	-	2	Enquire
5560	LR141909	SPRING - COIL	LR141909 SPRING - COIL Rear Spring Load Class-F / Purple / Brown / Pink / From: MA000001	-	2	Enquire
5560	LR141908	SPRING - COIL	LR141908 SPRING - COIL Rear Spring Load Class-G / Purple / Brown / Brown / From: MA000001	-	2	Enquire
5560	LR141907	SPRING - COIL	LR141907 SPRING - COIL Rear Spring Load Class-H / Purple / Brown / Grey / From: MA000001	-	2	Enquire
18125	LR147262	SHOCK ABSORBER	LR147262 SHOCK ABSORBER 2.0L AJ21D4 Diesel Mid, With Continuous Variable Damping / RH/LH / From: MA000001	-	2	Enquire
18125	LR138055	SHOCK ABSORBER	LR138055 SHOCK ABSORBER Less Adaptive Damping / RH/LH / From: MA000001 / To: MA324832	-	2	Enquire
18125	LR141900	SHOCK ABSORBER	LR141900 SHOCK ABSORBER 2.0L AJ200P Hi PHEV, With Continuous Variable Damping / RH/LH / From: MA000001	-	2	Enquire
18125	LR156738	SHOCK ABSORBER	LR156738 SHOCK ABSORBER Less Adaptive Damping / RH/LH / From: MA324833	-	2	Enquire
18132	LR141904	BRACKET - SHOCK ABSORBER	LR141904 BRACKET - SHOCK ABSORBER LH / From: MA000001	-	1	Enquire
18132	LR141895	BRACKET - SHOCK ABSORBER	LR141895 BRACKET - SHOCK ABSORBER RH / From: MA000001	-	1	Enquire
