Front Cross Member & Stabilizer Bar (Conventional Stabilizer Bar)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Front Cross Member & Stabilizer Bar (Conventional Stabilizer Bar)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FT110206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYH500510 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR090523 BAR - STABILIZER Enquire To Order
LR090525 BAR - STABILIZER Enquire To Order
LR095890 BAR - STABILIZER Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090522 LINK - STABILIZER BAR Enquire To Order
View All

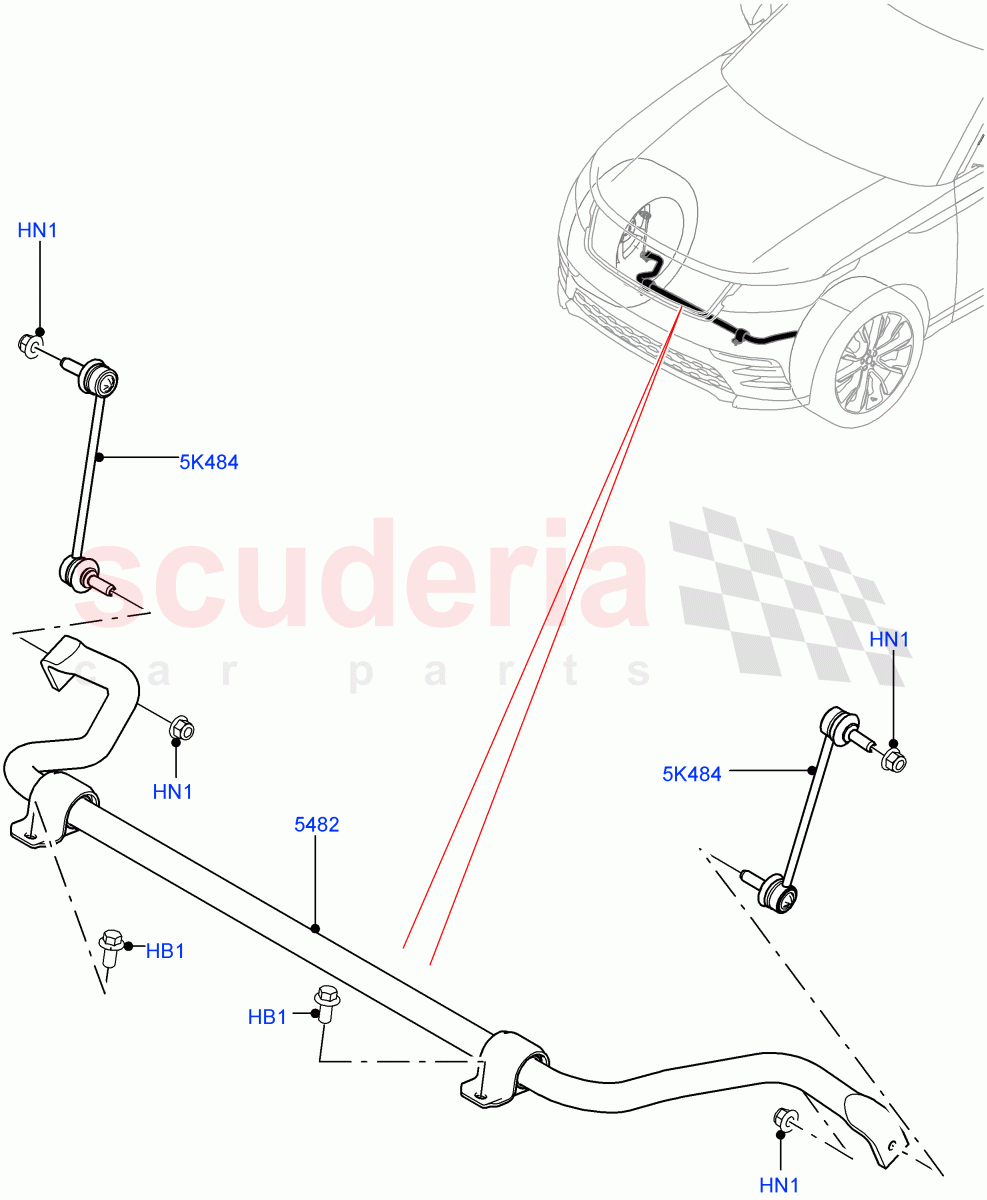

Front Cross Member & Stabilizer Bar (Conventional Stabilizer Bar) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FT110206
BOLT
M10 X 20MM 		- 4 Enquire
HN1 RYH500510
NUT - HEX.
M12, Nut And Washer 		- 4 Enquire
5K484 LR090522
LINK - STABILIZER BAR
Front, RH/LH 		- 2 Enquire
5482 LR090523
BAR - STABILIZER
2.0L I4 DSL HIGH DOHC AJ200, With Four Corner Air Suspension / To: LA999999 		- 1 Enquire
5482 LR090525
BAR - STABILIZER
With Standard Duty Coil Spring Susp / To: KA203502 		- 1 Enquire
5482 LR095890
BAR - STABILIZER
3.0 V6 D Gen2 Twin Turbo, With Four Corner Air Suspension / To: LA999999 		- 1 Enquire
5482 LR117016
BAR - STABILIZER
5.0L P AJ133 DOHC CDA S/C Enhanced, With Performance Suspension / From: KA000001 / To: LA999999 		- 1 Enquire
5482 LR090525
BAR - STABILIZER
With Continuous Variable Damping, With Standard Duty Coil Spring Susp / From: KA203503 / To: LA999999 		- 1 Enquire
5482 LR124576
BAR - STABILIZER
Less Adaptive Damping, With Standard Duty Coil Spring Susp / From: LA000001 / To: LA999999 		- 1 Enquire
5482 LR090523
BAR - STABILIZER
2.0L I4 Mid DOHC AJ200 Petrol, With Four Corner Air Suspension / From: MA000001 		- 1 Enquire
5482 LR124576
BAR - STABILIZER
2.0L I4 Mid DOHC AJ200 Petrol, With Standard Duty Coil Spring Susp / From: MA000001 		- 1 Enquire
5482 LR141971
BAR - ROLL
3.0L AJ20D6 Diesel High, With Four Corner Air Suspension / From: MA000001 		- 1 Enquire
5482 LR141969
BAR - STABILIZER
3.0L AJ20P6 Petrol High, With Standard Duty Coil Spring Susp / From: MA000001 		- 1 Enquire
