Name: Exhaust Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)
Rating: 4.7 (1 reviews)

Exhaust Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel AJ21D4] - Exhaust Manifold (2.0L AJ21D4 Diesel Mid) ((V) FROMMA000001)

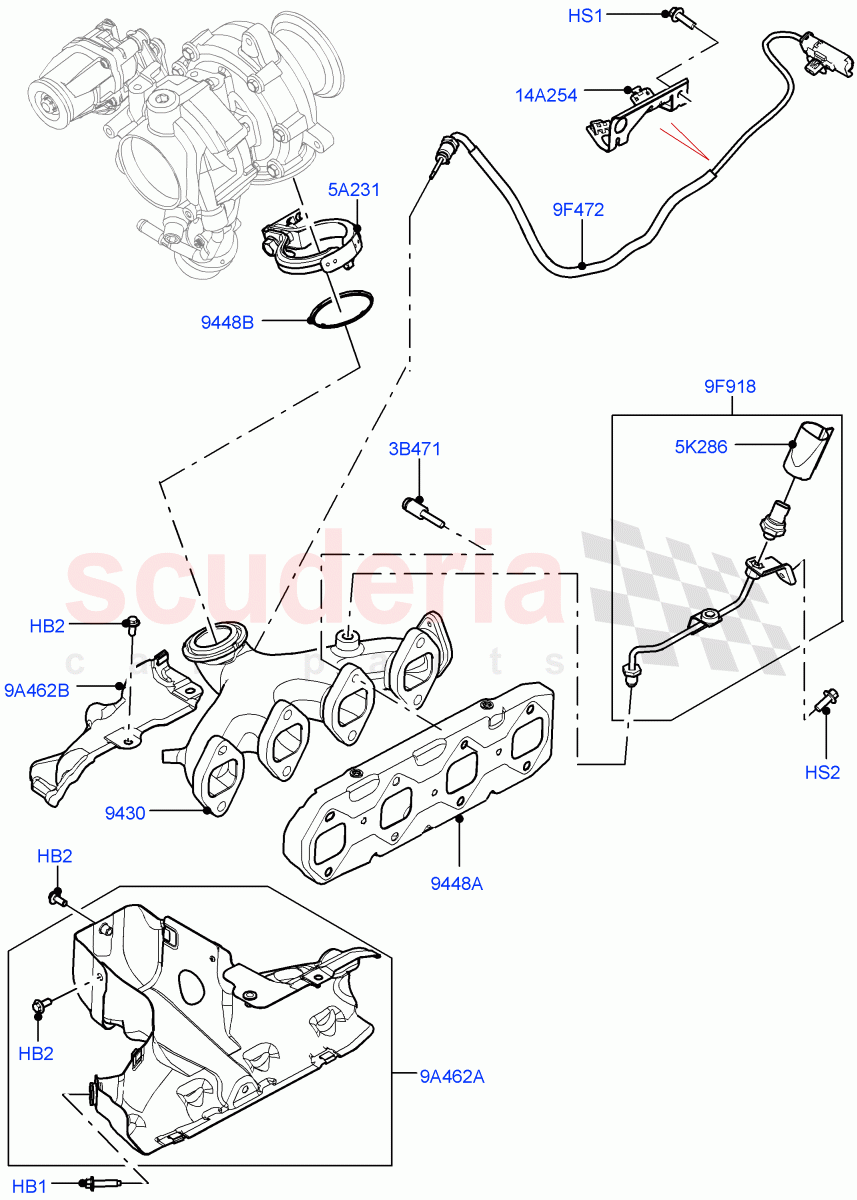

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR091557	BOLT	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141347	MANIFOLD - EXHAUST	$534.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073663	BOLT - SPECIAL	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139688	CLAMP - EXHAUST	$32.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122973	HEAT SHIELD - SENSOR	$19.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141348	GASKET - EXHAUST MANIFOLD	$30.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139689	GASKET - TURBOCHARGER	$40.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141393	SENSOR - EXHAUST GAS - TEMPERATURE	$137.57	To Order
	LR163159	SENSOR - EXHAUST GAS - TEMPERATURE	$158.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141394	SENSOR - EXHAUST GAS PRESSURE	$145.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124570	BRACKET - CABLE SUPPORT	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141338	SHIELD - EXHAUST MANIFOLD HEAT	$122.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141339	SHIELD - EXHAUST MANIFOLD HEAT	$40.61	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR091557	BOLT	LR091557 BOLT M6 X 25MM / From: MA000001	$2.89	1
HB2	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED Heat Shield, M6 X 14MM / From: MA000001	$0.90	5
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Bracket, Hexagonal Head, M6 X 20MM / From: MA000001 IN STOCK	$1.54	1
HS2	LR073686	SCREW	LR073686 SCREW M6 X 16MM, Pressure Sensor / From: MA000001	$2.38	1
3B471	LR073663	BOLT - SPECIAL	LR073663 BOLT - SPECIAL Exhaust Manifold Fixing / From: MA000001	$3.57	8
5A231	LR139688	CLAMP - EXHAUST	LR139688 CLAMP - EXHAUST Manifold To Turbocharger / From: MA000001	$32.15	1
5K286	LR122973	HEAT SHIELD - SENSOR	LR122973 HEAT SHIELD - SENSOR Pressure Sensor / From: MA000001	$19.83	1
9A462A	LR141338	SHIELD - EXHAUST MANIFOLD HEAT	LR141338 SHIELD - EXHAUST MANIFOLD HEAT Bottom / From: MA000001	$122.11	1
9A462B	LR141339	SHIELD - EXHAUST MANIFOLD HEAT	LR141339 SHIELD - EXHAUST MANIFOLD HEAT Upper Front / From: MA000001	$40.61	1
9F472	LR141393	SENSOR - EXHAUST GAS - TEMPERATURE	LR141393 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: MA000001 / To: MA323360	$137.57	1
9F472	LR163159	SENSOR - EXHAUST GAS - TEMPERATURE	LR163159 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: MA323361	$158.03	1
9F918	LR141394	SENSOR - EXHAUST GAS PRESSURE	LR141394 SENSOR - EXHAUST GAS PRESSURE From: MA000001	$145.32	1
14A254	LR124570	BRACKET - CABLE SUPPORT	LR124570 BRACKET - CABLE SUPPORT Sensor Cable / From: MA000001	$13.70	1
9430	LR141347	MANIFOLD - EXHAUST	LR141347 MANIFOLD - EXHAUST From: MA000001	$534.50	1
9448A	LR141348	GASKET - EXHAUST MANIFOLD	LR141348 GASKET - EXHAUST MANIFOLD Manifold To Cylinder Head / From: MA000001	$30.53	1
9448B	LR139689	GASKET - TURBOCHARGER	LR139689 GASKET - TURBOCHARGER Turbocharger / From: MA000001	$40.01	1
