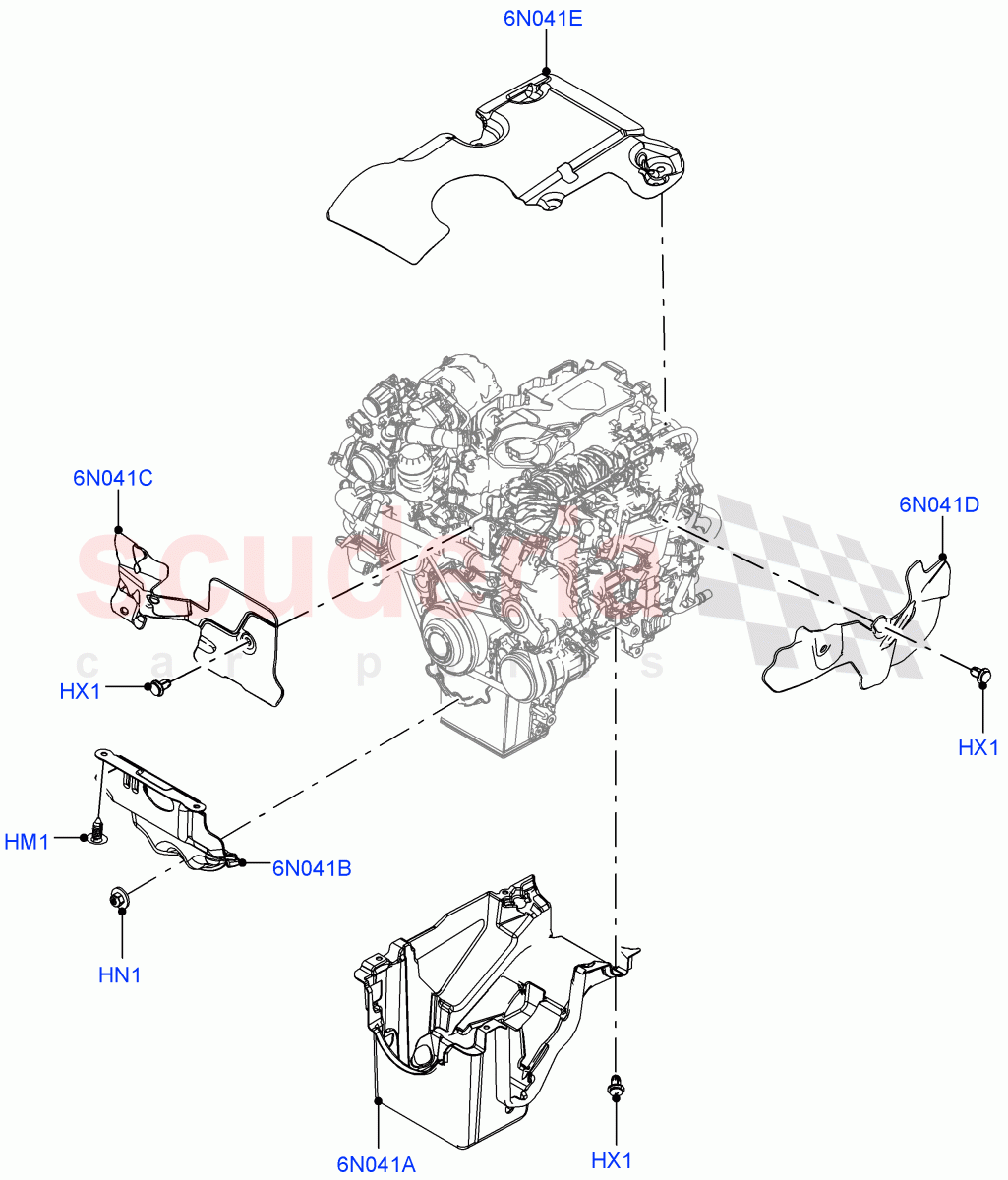

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR045542	NUT	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091897	SHIELD - ENGINE PROTECTING	$60.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141488	INSULATOR - CYLINDER HEAD	$44.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141286	INSULATOR - CYLINDER HEAD	$134.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143108	INSULATOR - CYLINDER HEAD	$127.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141287	COVER - ENGINE TOP	$153.73	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HM1	RZM500070	PIN - SPECIAL IN STOCK	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin / From: MA000001 IN STOCK	$1.07	2
HN1	LR045542	NUT	LR045542 NUT M6, Nut And Washer / From: MA000001	$1.31	1
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5 / From: MA000001	$2.92	-
6N041A	LR091897	SHIELD - ENGINE PROTECTING	LR091897 SHIELD - ENGINE PROTECTING Oil Pan / From: MA000001	$60.73	1
6N041B	LR141488	INSULATOR - CYLINDER HEAD	LR141488 INSULATOR - CYLINDER HEAD Crankshaft Damper / From: MA000001	$44.61	1
6N041C	LR141286	INSULATOR - CYLINDER HEAD	LR141286 INSULATOR - CYLINDER HEAD Engine Front / From: MA000001	$134.47	1
6N041D	LR143108	INSULATOR - CYLINDER HEAD	LR143108 INSULATOR - CYLINDER HEAD LH / From: MA000001	$127.75	1
6N041E	LR141287	COVER - ENGINE TOP	LR141287 COVER - ENGINE TOP Top / From: MA000001	$153.73	1
