Find Your Part

View All

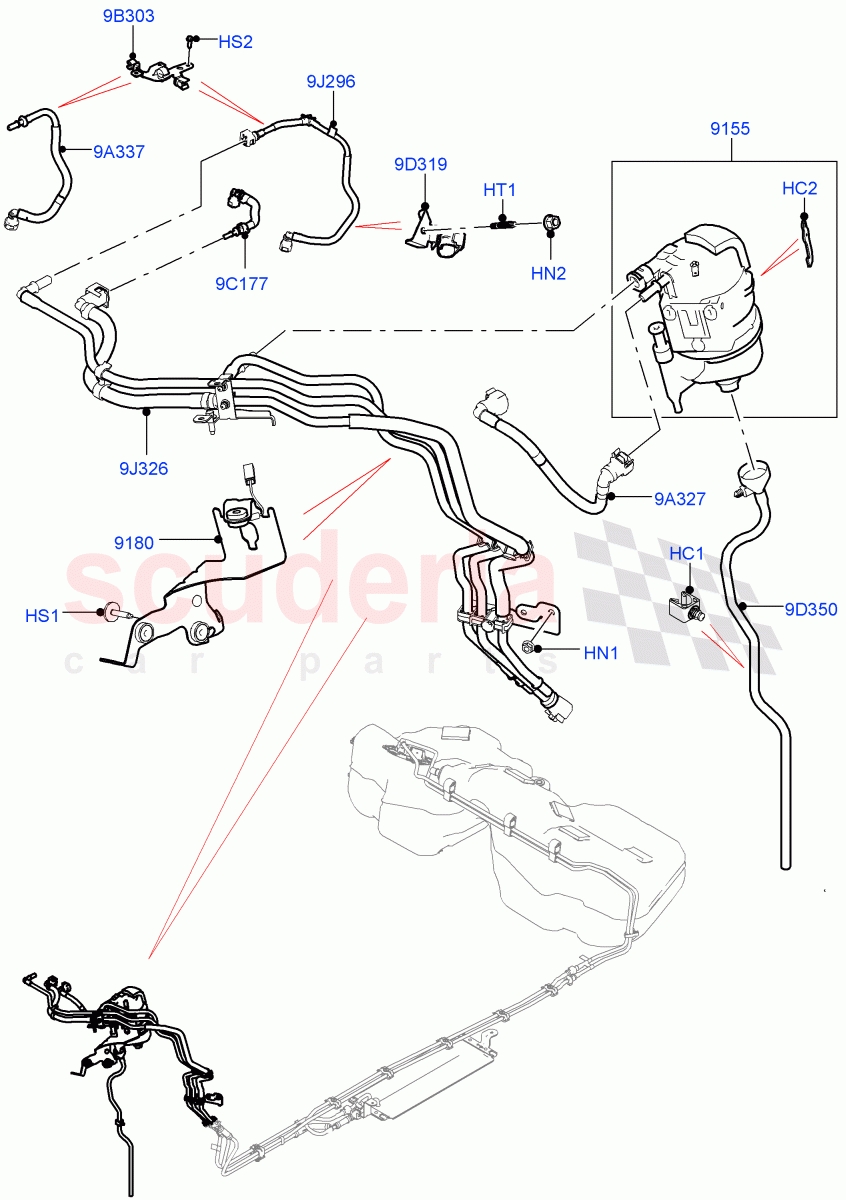

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161603	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106042	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093058	BRACKET - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093051	TUBE - FUEL FILTER TO FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087240	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082269	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087238	BRACKET - FUEL TUBE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093108	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087241	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093087	TUBE - FUEL SUPPLY AND VAPOUR	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE	-	2	Enquire
HC2	LR161603	CLIP - SPECIAL	LR161603 CLIP - SPECIAL For Fuel Filter	-	1	Enquire
HN1	FN106042	NUT	FN106042 NUT Hexagonal Head, M6	-	1	Enquire
HN2	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6	-	1	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	-	3	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	-	2	Enquire
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15	-	1	Enquire
9A327	LR093051	TUBE - FUEL FILTER TO FUEL PUMP	LR093051 TUBE - FUEL FILTER TO FUEL PUMP	-	1	Enquire
9A337	LR087240	PIPE - FUEL	LR087240 PIPE - FUEL	-	1	Enquire
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT For Fuel Tube	-	1	Enquire
9C177	LR082269	PIPE - FUEL	LR082269 PIPE - FUEL	-	1	Enquire
9D319	LR087238	BRACKET - FUEL TUBE SUPPORT	LR087238 BRACKET - FUEL TUBE SUPPORT	-	1	Enquire
9D350	LR093108	TUBE - FUEL	LR093108 TUBE - FUEL Drain	-	1	Enquire
9J296	LR087241	PIPE - FUEL	LR087241 PIPE - FUEL	-	1	Enquire
9J326	LR093087	TUBE - FUEL SUPPLY AND VAPOUR	LR093087 TUBE - FUEL SUPPLY AND VAPOUR	-	1	Enquire
9155	LR106429	FILTER - FUEL - PRIMARY	LR106429 FILTER - FUEL - PRIMARY Less Bracket, Primary / To: KA786260	-	1	Enquire
9155	LR116437	FILTER - FUEL - PRIMARY	LR116437 FILTER - FUEL - PRIMARY Less Bracket, Primary / From: KA786261	-	1	Enquire
9180	LR093058	BRACKET - FUEL FILTER	LR093058 BRACKET - FUEL FILTER	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Fuel Lines (Front) (2.0L I4 Dsl Mid Dohc Aj200, Fuel Tank-Diesel, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]
