Name: Fuel Lines (Front, Dirty Fuel Markets - BRIC) (2.0L I4 DSL MID DOHC AJ200, Fuel Tank-Diesel With Filters, 2.0L I4 DSL HIGH DOHC AJ200)
Rating: 4.8 (1 reviews)

Fuel Lines (Front, Dirty Fuel Markets - BRIC) (2.0L I4 DSL MID DOHC AJ200, Fuel Tank-Diesel With Filters, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Fuel Lines (Front, Dirty Fuel Markets - BRIC) (2.0L I4 DSL MID DOHC AJ200, Fuel Tank-Diesel With...

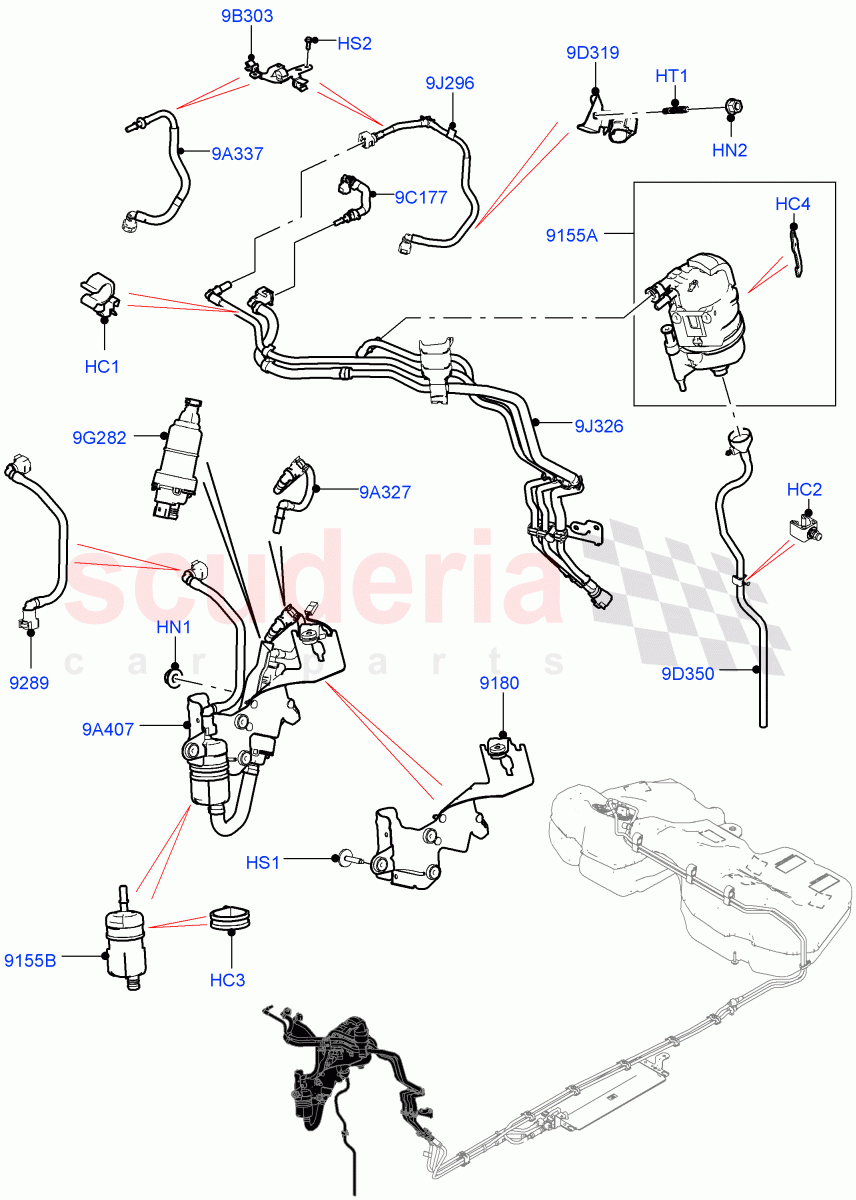

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR049397	CLIP - SPECIAL	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105597	CLIP	$5.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161603	CLIP - SPECIAL	$8.51	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052757	STUD	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093059	BRACKET - FUEL FILTER	$43.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093033	TUBE - FUEL	$56.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106429	FILTER - FUEL - PRIMARY	$98.92	To Order
	LR116437	FILTER - FUEL - PRIMARY	$97.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084125	FILTER - FUEL	$40.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093056	TUBE - FUEL FILTER TO FUEL PUMP	$60.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087240	PIPE - FUEL	$78.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093075	FUEL PUMP AND FILTER	$467.17	To Order
	LR114290	FUEL PUMP AND FILTER	$471.70	To Order
	LR153963	FUEL PUMP AND FILTER	$519.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087239	BRACKET - FUEL TUBE SUPPORT	$15.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082269	PIPE - FUEL	$69.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087238	BRACKET - FUEL TUBE SUPPORT	$11.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093108	TUBE - FUEL	$73.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137955	PUMP	$283.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087241	PIPE - FUEL	$125.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093087	TUBE - FUEL SUPPLY AND VAPOUR	$207.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR049397	CLIP - SPECIAL	LR049397 CLIP - SPECIAL 11 - 13 x 1.0 - 3.5	$2.59	1
HC2	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE	$3.36	1
HC3	LR105597	CLIP	LR105597 CLIP	$5.69	1
HC4	LR161603	CLIP - SPECIAL	LR161603 CLIP - SPECIAL For Fuel Filter	$8.51	1
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	4
HN2	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6	$1.40	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.03	4
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	2
HT1	LR052757	STUD	LR052757 STUD M6 X 25 / M6 X 15	$2.22	1
9A327	LR093056	TUBE - FUEL FILTER TO FUEL PUMP	LR093056 TUBE - FUEL FILTER TO FUEL PUMP	$60.73	1
9A337	LR087240	PIPE - FUEL	LR087240 PIPE - FUEL	$78.92	1
9A407	LR093075	FUEL PUMP AND FILTER	LR093075 FUEL PUMP AND FILTER To: JA765694	$467.17	1
9A407	LR114290	FUEL PUMP AND FILTER	LR114290 FUEL PUMP AND FILTER From: JA765695 / To: MA296425	$471.70	1
9A407	LR153963	FUEL PUMP AND FILTER	LR153963 FUEL PUMP AND FILTER From: MA296426	$519.45	1
9B303	LR087239	BRACKET - FUEL TUBE SUPPORT	LR087239 BRACKET - FUEL TUBE SUPPORT For Fuel Tube	$15.17	1
9C177	LR082269	PIPE - FUEL	LR082269 PIPE - FUEL	$69.42	1
9D319	LR087238	BRACKET - FUEL TUBE SUPPORT	LR087238 BRACKET - FUEL TUBE SUPPORT	$11.31	1
9D350	LR093108	TUBE - FUEL	LR093108 TUBE - FUEL Drain	$73.40	1
9G282	LR137955	PUMP	LR137955 PUMP	$283.02	1
9J296	LR087241	PIPE - FUEL	LR087241 PIPE - FUEL	$125.59	1
9J326	LR093087	TUBE - FUEL SUPPLY AND VAPOUR	LR093087 TUBE - FUEL SUPPLY AND VAPOUR	$207.56	1
9155A	LR106429	FILTER - FUEL - PRIMARY	LR106429 FILTER - FUEL - PRIMARY Less Bracket, Primary / To: KA786260	$98.92	1
9155A	LR116437	FILTER - FUEL - PRIMARY	LR116437 FILTER - FUEL - PRIMARY Less Bracket, Primary / From: KA786261	$97.03	1
9155B	LR084125	FILTER - FUEL	LR084125 FILTER - FUEL	$40.44	1
9180	LR093059	BRACKET - FUEL FILTER	LR093059 BRACKET - FUEL FILTER	$43.80	1
9289	LR093033	TUBE - FUEL	LR093033 TUBE - FUEL	$56.03	1
