Turbocharger (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200) ((V) Fromha000001)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Turbocharger (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071777 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073725 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR073687 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073688 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073686 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073723 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR073671 WASHER - COPPER Enquire To Order
Photo Part No Description Price (each) Stock
LR072251 GASKET - TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR081636 PIPE - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR081640 PIPE - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR094424 TURBOCHARGER Enquire To Order
LR140581 TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR081617 HEAT SHIELD - TURBOCHARGER Enquire To Order
View All

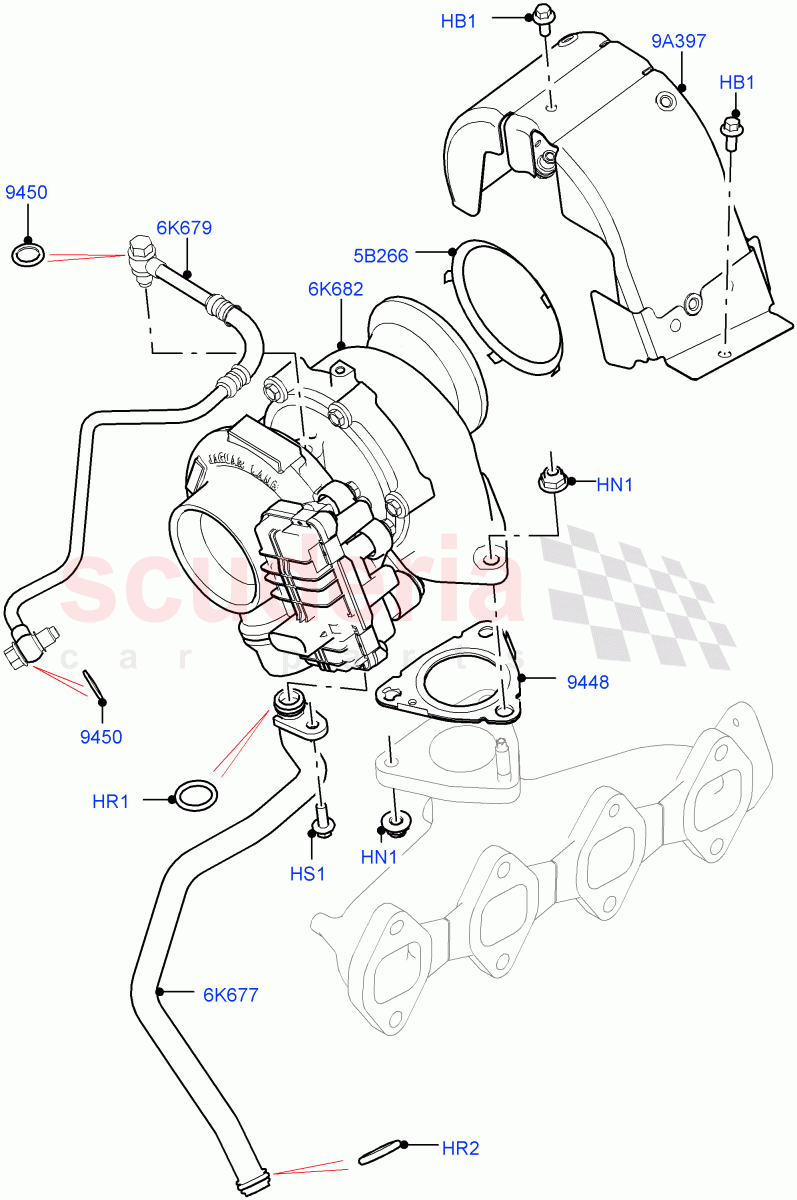

Turbocharger (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR071777
BOLT - HEX.HEAD
M6 X 14MM, Shield 		- 2 Enquire
HN1 LR073725
NUT - HEX.
M8 		- 3 Enquire
HR1 LR073687
O-RING
14.3 x 2.4, Upper 		- 1 Enquire
HR2 LR073688
O-RING
15 X 3MM, Lower 		- 1 Enquire
HS1 LR073686
SCREW
Drain, M6 X 16MM 		- 1 Enquire
5B266 LR072251
GASKET - TURBOCHARGER
101 mm, To DPF 		- 1 Enquire
6K677 LR081636
PIPE - OIL DRAIN 		- 1 Enquire
6K679 LR081640
PIPE - OIL DRAIN 		- 1 Enquire
6K682 LR094424
TURBOCHARGER
To: LA280144 		- 1 Enquire
6K682 LR140581
TURBOCHARGER
From: LA280145 		- 1 Enquire
9A397 LR081617
HEAT SHIELD - TURBOCHARGER 		- 1 Enquire
9448 LR073723
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger 		- 1 Enquire
9450 LR073671
WASHER - COPPER
Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed 		- 4 Enquire
