Fuel Injectors And Pipes (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Fuel Injectors And Pipes (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073719 BOLT $3.54 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073707 TUBE - FUEL PUMP $49.10 To Order
Photo Part No Description Price (each) Stock
LR073696 CLAMP - FUEL INJECTION $5.73 To Order
Photo Part No Description Price (each) Stock
LR073706 MANIFOLD - FUEL SUPPLY $402.57 To Order
LR082273 MANIFOLD - FUEL SUPPLY $465.40 To Order
Photo Part No Description Price (each) Stock
LR073710 INJECTOR - FUEL $566.66 To Order
LR082276 INJECTOR - FUEL $708.71 To Order
LR125327 INJECTOR - FUEL $775.07 To Order
Photo Part No Description Price (each) Stock
LR093848 WASHER - SEALING $4.25 To Order
Photo Part No Description Price (each) Stock
LR082275 TUBE - LEAK OFF $46.23 To Order
LR073709 TUBE - INJECTION PUMP LEAK-OFF $77.22 To Order
Photo Part No Description Price (each) Stock
LR073727 GLOW PLUG $42.34 To Order
LR116117 GLOW PLUG $52.16 To Order
LR128419 GLOW PLUG $52.16 To Order
Photo Part No Description Price (each) Stock
LR082265 BRACKET - FUEL TUBE SUPPORT $11.99 To Order
Photo Part No Description Price (each) Stock
LR087239 BRACKET - FUEL TUBE SUPPORT $15.17 To Order
Photo Part No Description Price (each) Stock
LR073702 PIPE - FUEL INJECTION $29.46 To Order
Photo Part No Description Price (each) Stock
LR073703 PIPE - FUEL INJECTION $29.46 To Order
Photo Part No Description Price (each) Stock
LR073704 PIPE - FUEL INJECTION $29.46 To Order
View All

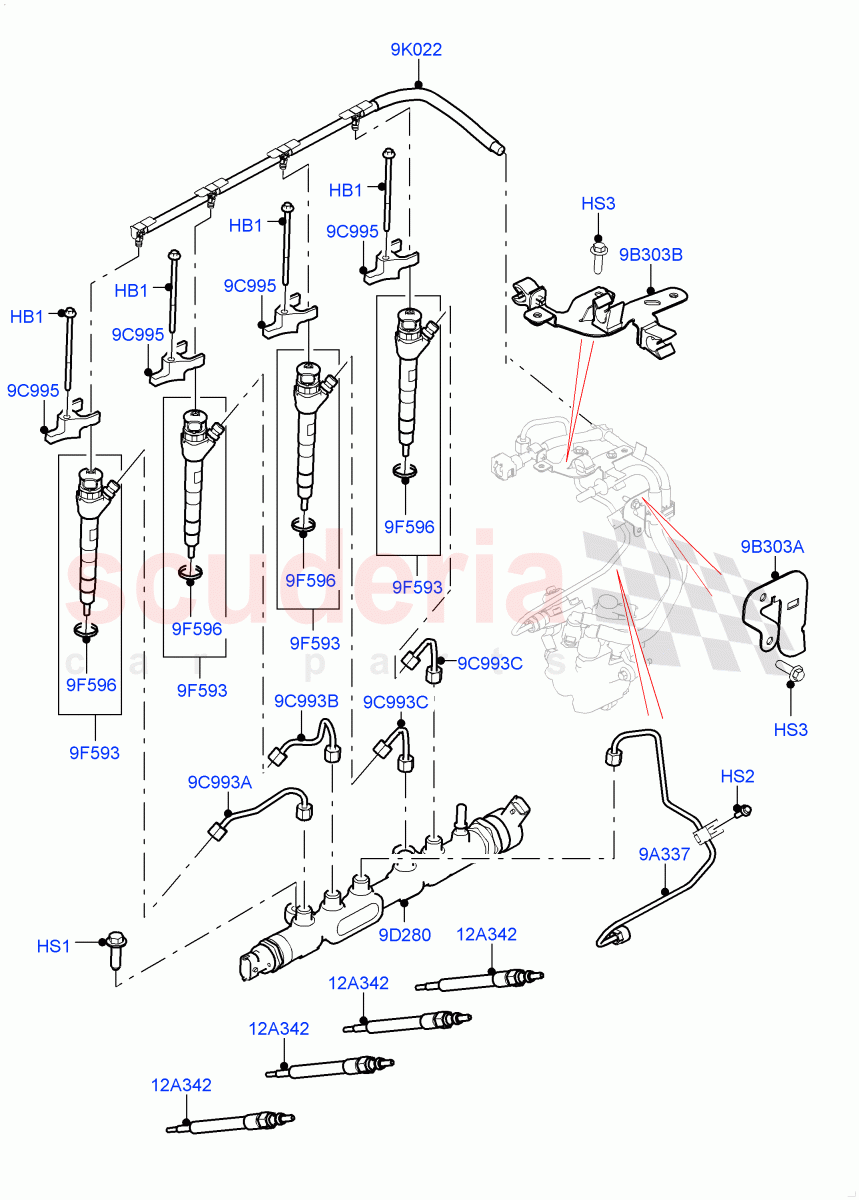

Fuel Injectors And Pipes (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073719
BOLT
M6 X 115 		$3.54 4
HS1 LR073676
SCREW
Fuel Rail, M8 x 35mm 		$2.26 2
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 1
HS3 LR071774
SCREW
Bracket, Hexagonal Head, M6 X 20MM 		$2.23 3
9A337 LR073707
TUBE - FUEL PUMP 		$49.10 1
9B303A LR082265
BRACKET - FUEL TUBE SUPPORT
For Fuel Tube 		$11.99 1
9B303B LR087239
BRACKET - FUEL TUBE SUPPORT
For Fuel Tube 		$15.17 1
9C993A LR073702
PIPE - FUEL INJECTION
Cylinder No.1 		$29.46 1
9C993B LR073703
PIPE - FUEL INJECTION
Cylinder No.2 		$29.46 1
9C993C LR073704
PIPE - FUEL INJECTION
Cylinder No.3, Cylinder No.4 		$29.46 2
9C995 LR073696
CLAMP - FUEL INJECTION 		$5.73 4
9D280 LR073706
MANIFOLD - FUEL SUPPLY
2.0L I4 DSL MID DOHC AJ200 		$402.57 1
9D280 LR082273
MANIFOLD - FUEL SUPPLY
2.0L I4 DSL HIGH DOHC AJ200 		$465.40 1
9F593 LR073710
INJECTOR - FUEL
2.0L I4 DSL MID DOHC AJ200 / To: KA797707 		$566.66 4
9F593 LR082276
INJECTOR - FUEL
2.0L I4 DSL HIGH DOHC AJ200 		$708.71 4
9F593 LR125327
INJECTOR - FUEL
2.0L I4 DSL MID DOHC AJ200 / From: KA797708 		$775.07 4
9F596 LR093848
WASHER - SEALING 		$4.25 4
9K022 LR082275
TUBE - LEAK OFF
2.0L I4 DSL HIGH DOHC AJ200 / Leak Off 		$46.23 1
9K022 LR073709
TUBE - INJECTION PUMP LEAK-OFF
2.0L I4 DSL MID DOHC AJ200 / Leak Off 		$77.22 1
12A342 LR073727
GLOW PLUG
To: JA749400 		$42.34 4
12A342 LR116117
GLOW PLUG
From: JA749401 / To: LA245144 		$52.16 4
12A342 LR128419
GLOW PLUG
From: LA245145 		$52.16 4
