Name: Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, L6 Diesel Emissions, DPF + DE-SOX)
Rating: 4.4 (1 reviews)

Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, L6 Diesel Emissions, DPF + DE-SOX) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF, 2.0L I4 DSL HIGH DOHC AJ200, L6...

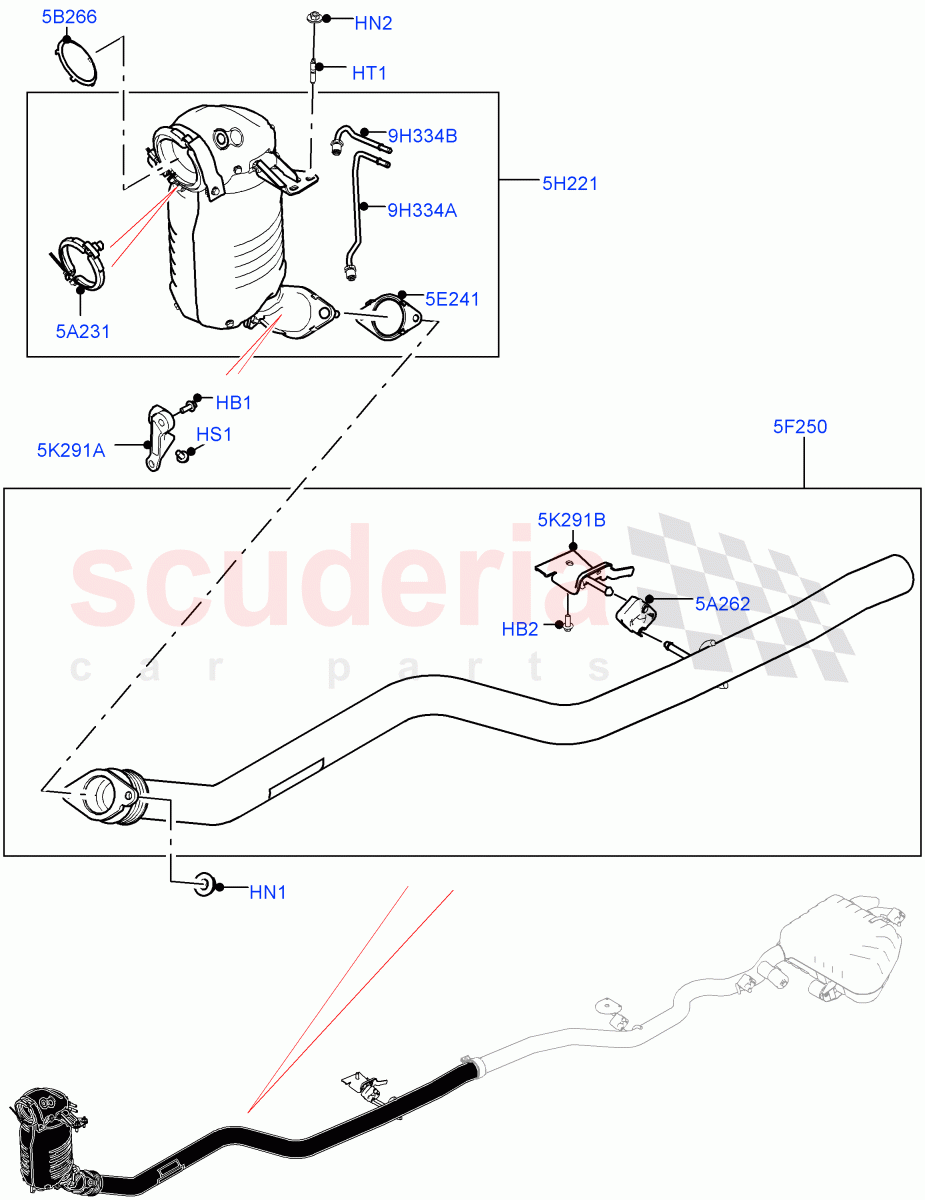

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	$1.81	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	$0.51	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	$0.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	$20.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$15.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085942	GASKET - EXHAUST PIPE	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092896	CATALYST AND PARTICLE FILTER	$299.50	To Order
	LR107780	CATALYST AND PARTICLE FILTER	$241.64	To Order
	LR116739	CATALYST AND PARTICLE FILTER	$215.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092880	CATALYTIC CONVERTER	$2,700.18	To Order
	LR092887	CATALYTIC CONVERTER	$2,872.76	To Order
	LR111131	CATALYTIC CONVERTER	$2,458.34	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082694	BRACKET - EXHAUST PIPE MOUNTING	$28.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094553	BRACKET - EXHAUST PIPE MOUNTING	$43.71	To Order
	LR117246	BRACKET - EXHAUST PIPE MOUNTING	$44.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095891	TUBE - EXHAUST PRESSURE	$36.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095892	TUBE - EXHAUST PRESSURE	$39.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, To Transmission IN STOCK	$2.23	2
HB2	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. Bracket, M10 X 25MM, Rear	$1.81	1
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10	$0.35	2
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8	$0.51	2
HS1	RYP500190	SCREW IN STOCK	RYP500190 SCREW Bracket, Hexagonal Head, M6 x 12MM IN STOCK	$0.62	2
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	$1.97	2
5A231	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm	$20.65	1
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	$23.23	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm	$15.91	1
5E241	LR085942	GASKET - EXHAUST PIPE	LR085942 GASKET - EXHAUST PIPE Post DPF	$8.04	1
5F250	LR092896	CATALYST AND PARTICLE FILTER	LR092896 CATALYST AND PARTICLE FILTER To: JA738802	$299.50	1
5F250	LR107780	CATALYST AND PARTICLE FILTER	LR107780 CATALYST AND PARTICLE FILTER From: JA738803 / To: KA206474	$241.64	1
5F250	LR116739	CATALYST AND PARTICLE FILTER	LR116739 CATALYST AND PARTICLE FILTER From: KA206475	$215.39	1
5H221	LR092880	CATALYTIC CONVERTER	LR092880 CATALYTIC CONVERTER 2.0L I4 DSL MID DOHC AJ200 / To: JA738802	$2,700.18	1
5H221	LR092887	CATALYTIC CONVERTER	LR092887 CATALYTIC CONVERTER 2.0L I4 DSL HIGH DOHC AJ200 / To: JA738802	$2,872.76	1
5H221	LR111131	CATALYTIC CONVERTER	LR111131 CATALYTIC CONVERTER 2.0L I4 DSL MID DOHC AJ200 / From: JA738803	$2,458.34	1
5H221	LR111127	CATALYTIC CONVERTER	LR111127 CATALYTIC CONVERTER 2.0L I4 DSL HIGH DOHC AJ200 / From: JA738803	$2,567.05	1
5K291A	LR082694	BRACKET - EXHAUST PIPE MOUNTING	LR082694 BRACKET - EXHAUST PIPE MOUNTING To Transmission	$28.99	1
5K291B	LR094553	BRACKET - EXHAUST PIPE MOUNTING	LR094553 BRACKET - EXHAUST PIPE MOUNTING Rear / To: JA999999	$43.71	1
5K291B	LR117246	BRACKET - EXHAUST PIPE MOUNTING	LR117246 BRACKET - EXHAUST PIPE MOUNTING Rear / From: KA000001	$44.50	1
9H334A	LR095891	TUBE - EXHAUST PRESSURE	LR095891 TUBE - EXHAUST PRESSURE Post DPF	$36.00	1
9H334B	LR095892	TUBE - EXHAUST PRESSURE	LR095892 TUBE - EXHAUST PRESSURE Pre DPF	$39.68	1
