Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Front Exhaust System (2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions)

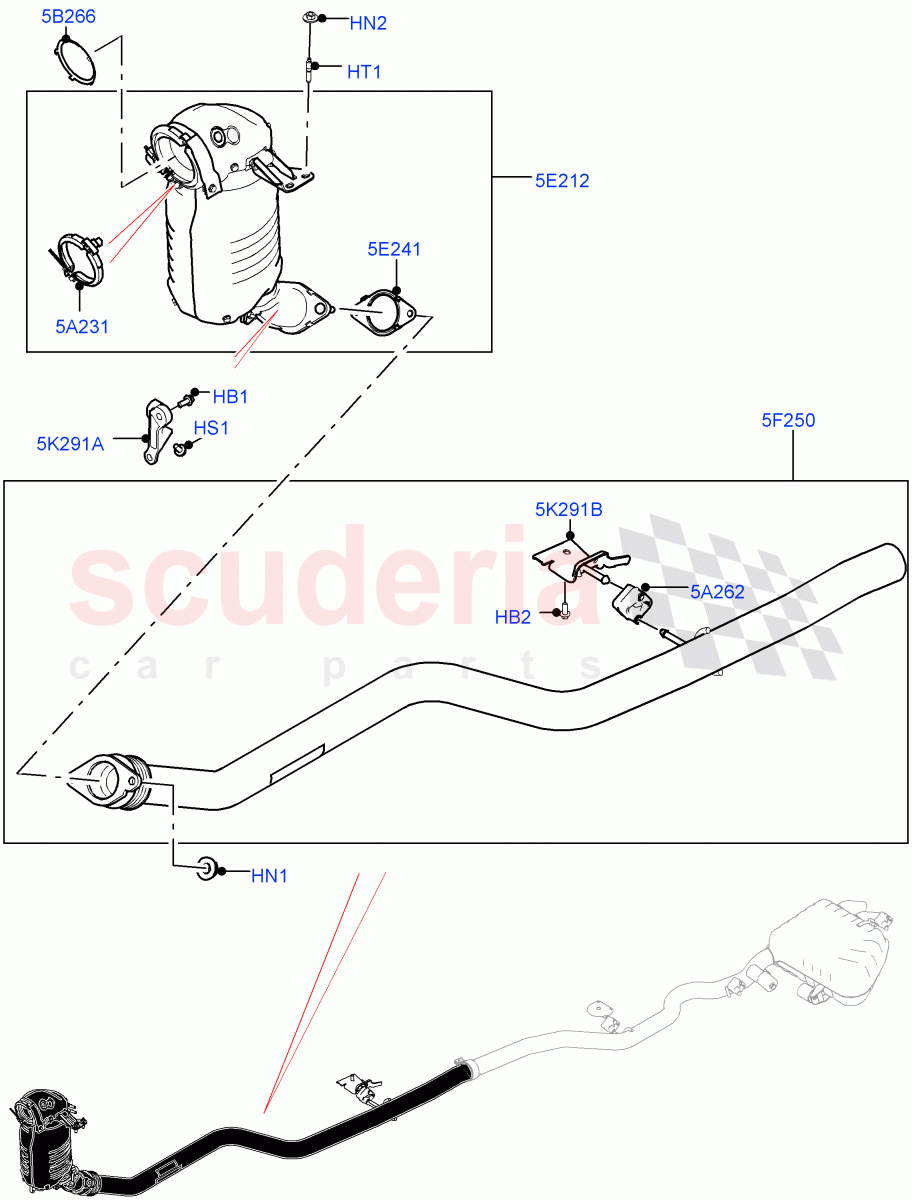

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082692	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111129	CATALYTIC CONVERTER	Enquire	To Order
	LR092886	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085942	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092896	CATALYST AND PARTICLE FILTER	Enquire	To Order
	LR107780	CATALYST AND PARTICLE FILTER	Enquire	To Order
	LR116739	CATALYST AND PARTICLE FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082694	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094553	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order
	LR117246	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM, To Transmission	-	2	Enquire
HB2	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. Bracket, M10 X 25MM, Rear	-	1	Enquire
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10	-	2	Enquire
HN2	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8	-	2	Enquire
HS1	RYP500190	SCREW	RYP500190 SCREW Bracket, Hexagonal Head, M6 x 12MM	-	2	Enquire
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	-	2	Enquire
5A231	LR082692	CLAMP - EXHAUST	LR082692 CLAMP - EXHAUST 101 mm	-	1	Enquire
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER	-	1	Enquire
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm	-	1	Enquire
5E212	LR111129	CATALYTIC CONVERTER	LR111129 CATALYTIC CONVERTER From: JA738803	-	1	Enquire
5E212	LR092886	CATALYTIC CONVERTER	LR092886 CATALYTIC CONVERTER To: JA738802	-	1	Enquire
5E241	LR085942	GASKET - EXHAUST PIPE	LR085942 GASKET - EXHAUST PIPE Centre	-	1	Enquire
5F250	LR092896	CATALYST AND PARTICLE FILTER	LR092896 CATALYST AND PARTICLE FILTER To: JA738802	-	1	Enquire
5F250	LR107780	CATALYST AND PARTICLE FILTER	LR107780 CATALYST AND PARTICLE FILTER From: JA738803 / To: KA206474	-	1	Enquire
5F250	LR116739	CATALYST AND PARTICLE FILTER	LR116739 CATALYST AND PARTICLE FILTER From: KA206475	-	1	Enquire
5K291A	LR082694	BRACKET - EXHAUST PIPE MOUNTING	LR082694 BRACKET - EXHAUST PIPE MOUNTING To Transmission	-	1	Enquire
5K291B	LR094553	BRACKET - EXHAUST PIPE MOUNTING	LR094553 BRACKET - EXHAUST PIPE MOUNTING Rear / To: JA999999	-	1	Enquire
5K291B	LR117246	BRACKET - EXHAUST PIPE MOUNTING	LR117246 BRACKET - EXHAUST PIPE MOUNTING Rear / From: KA000001	-	1	Enquire
