Inlet Manifold (2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095783 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER $12.79 To Order
Photo Part No Description Price (each) Stock
LR085939 MANIFOLD - INLET $617.72 IN STOCK
Photo Part No Description Price (each) Stock
LR074070 GASKET - INTAKE MANIFOLD $10.79 To Order
Photo Part No Description Price (each) Stock
LR091891 COVER - ENGINE TOP $276.25 To Order
Photo Part No Description Price (each) Stock
LR038978 STUD - BALL $3.65 To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL $4.84 To Order
Photo Part No Description Price (each) Stock
LR074073 GASKET - THROTTLE $15.25 To Order
Photo Part No Description Price (each) Stock
LR085941 ACTUATOR - VARIABLE INTAKE SYSTEM $211.60 To Order
Photo Part No Description Price (each) Stock
LR090375 SENSOR - AIR TEMPERATURE & PRESSURE $120.25 To Order
Photo Part No Description Price (each) Stock
LR073653 BRACKET - MANIFOLD $18.98 To Order
Photo Part No Description Price (each) Stock
LR090404 BRACKET - MANIFOLD $18.45 To Order
View All

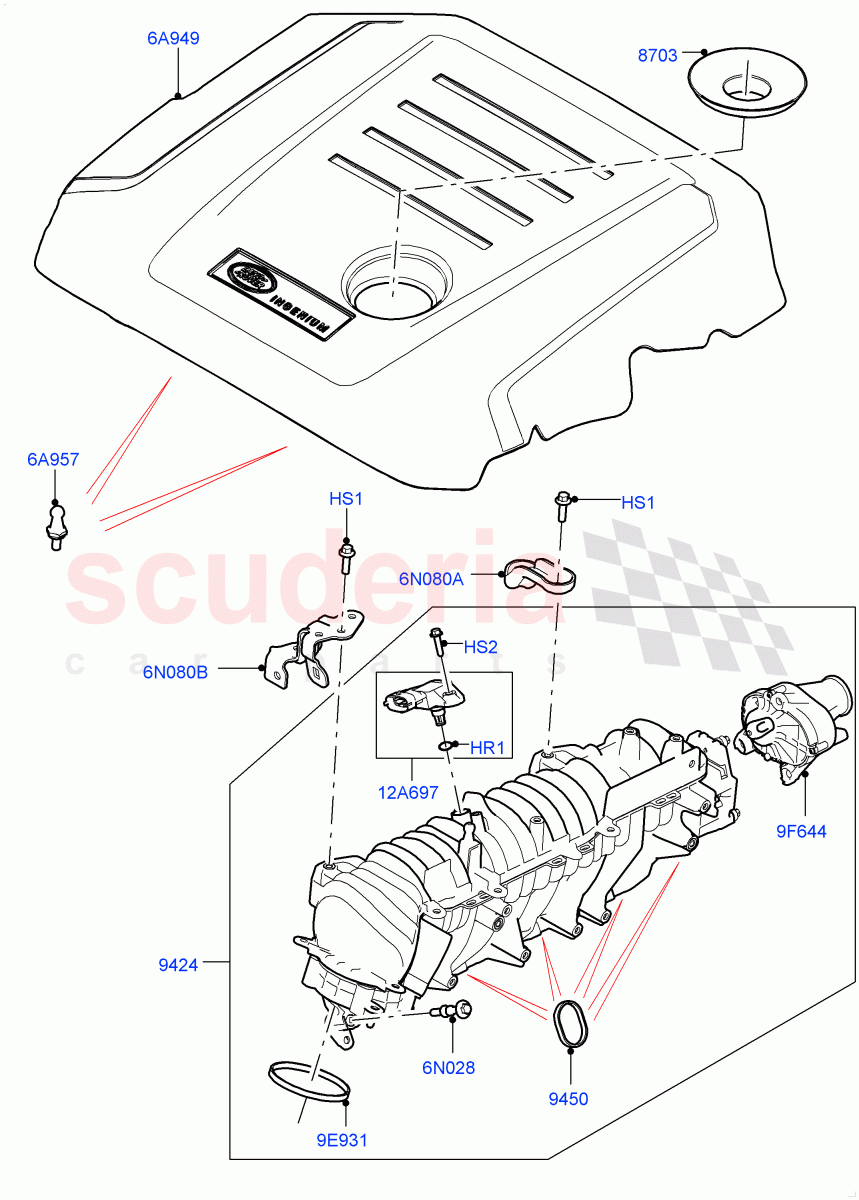

Inlet Manifold (2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR095783
O-RING
7.5MM, MAP Sensor
IN STOCK 		$4.47 1
HS1 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM
IN STOCK 		$1.54 4
HS2 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, Sensor 		$0.59 1
6A949 LR091891
COVER - ENGINE TOP
Engine 		$276.25 1
6A957 LR038978
STUD - BALL
Ball Stud, Engine Cover 		$3.65 2
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head 		$4.84 9
6N080A LR073653
BRACKET - MANIFOLD
Rear 		$18.98 1
6N080B LR090404
BRACKET - MANIFOLD
Front 		$18.45 1
9E931 LR074073
GASKET - THROTTLE
Throttle Body To Intake 		$15.25 1
9F644 LR085941
ACTUATOR - VARIABLE INTAKE SYSTEM 		$211.60 1
12A697 LR090375
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure, Temperature 		$120.25 1
8703 LR074074
OIL SPILL GAITER
Oil Spill 		$12.79 1
9424 LR085939
MANIFOLD - INLET
IN STOCK 		$617.72 1
9450 LR074070
GASKET - INTAKE MANIFOLD
Inlet Manifold 		$10.79 8
