Cylinder Block And Plugs (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Diesel] - Cylinder Block And Plugs (Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200, 2.0L I4 DSL MID DOHC...

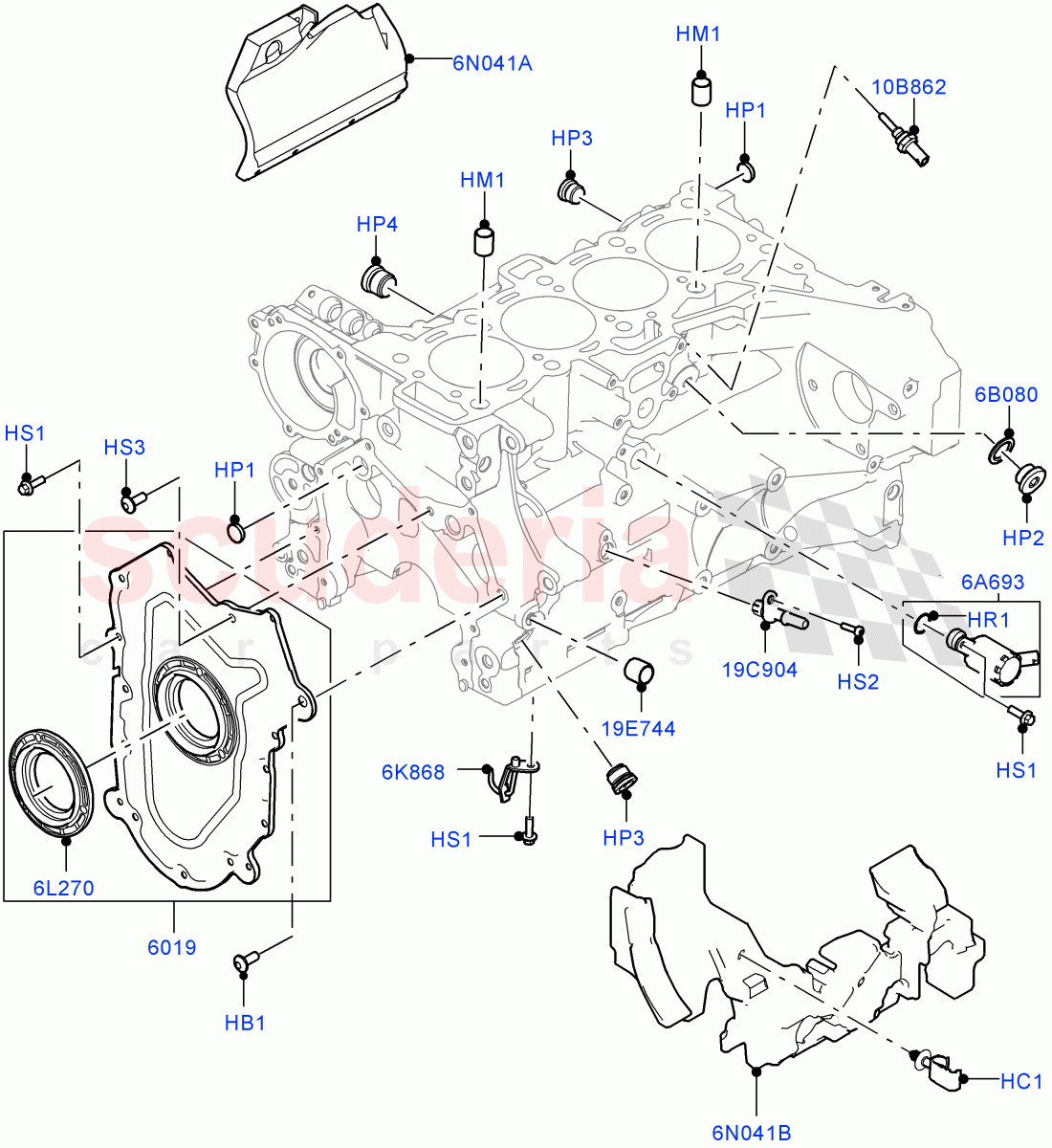

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR101794	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088516	CLIP - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073636	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163193	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163194	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095786	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order
	LR073655	SCREW	Enquire	To Order
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101795	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095132	COVER - CYLINDER FRONT	Enquire	To Order
	LR108531	COVER - CYLINDER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073684	VALVE - PISTON OIL COOLNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107013	KIT - "O" RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095896	NOZZLE - PISTON COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093852	SEAL - CRANKSHAFT OIL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR074067	SENSOR - ENGINE TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	Enquire	To Order
	LR148195	CONNECTOR - VACUUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order
	LR057802	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088544	COVER - INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083682	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR101794	BOLT	LR101794 BOLT M10 X 25MM, Torx	-	1	Enquire
HC1	LR088516	CLIP - RETAINING	LR088516 CLIP - RETAINING	-	1	Enquire
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell	-	2	Enquire
HP1	LR073636	PLUG - BLANKING	LR073636 PLUG - BLANKING 18MM, Blanking	-	4	Enquire
HP2	LR163193	PLUG - ENGINE	LR163193 PLUG - ENGINE LH Side, M22 X 1.5MM	-	1	Enquire
HP3	LR163194	PLUG - ENGINE	LR163194 PLUG - ENGINE M14 x 9 mm	-	2	Enquire
HP4	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5, RH Side	-	1	Enquire
HR1	LR095786	O-RING	LR095786 O-RING 15.3MM, Valve - piston oil cooling	-	1	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Oil Lubrication Jet	-	4	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Cover, Hexagonal Head, M6 X 20MM	-	12	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Valve - piston oil cooling	-	1	Enquire
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector	-	1	Enquire
HS3	LR101795	SCREW	LR101795 SCREW M8X25, Torx	-	1	Enquire
6A693	LR073684	VALVE - PISTON OIL COOLNG	LR073684 VALVE - PISTON OIL COOLNG	-	1	Enquire
6B080	LR107013	KIT - "O" RING	LR107013 KIT - "O" RING	-	1	Enquire
6K868	LR095896	NOZZLE - PISTON COOLING	LR095896 NOZZLE - PISTON COOLING	-	4	Enquire
6L270	LR093852	SEAL - CRANKSHAFT OIL - FRONT	LR093852 SEAL - CRANKSHAFT OIL - FRONT	-	1	Enquire
6N041A	LR088544	COVER - INSULATOR	LR088544 COVER - INSULATOR RH, Cylinder Block	-	1	Enquire
6N041B	LR083682	INSULATOR - ENGINE COMPARTMENT	LR083682 INSULATOR - ENGINE COMPARTMENT LH, Cylinder Block	-	1	Enquire
10B862	LR074067	SENSOR - ENGINE TEMPERATURE	LR074067 SENSOR - ENGINE TEMPERATURE	-	1	Enquire
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE To: LA292815	-	1	Enquire
19C904	LR148195	CONNECTOR - VACUUM TUBE	LR148195 CONNECTOR - VACUUM TUBE From: LA292816	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket,	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN	-	2	Enquire
6019	LR095132	COVER - CYLINDER FRONT	LR095132 COVER - CYLINDER FRONT Engine Front, Includes Seal / To: JA718282	-	1	Enquire
6019	LR108531	COVER - CYLINDER FRONT	LR108531 COVER - CYLINDER FRONT Engine Front, Includes Seal / From: JA718283	-	1	Enquire
