Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA701291) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA701291)

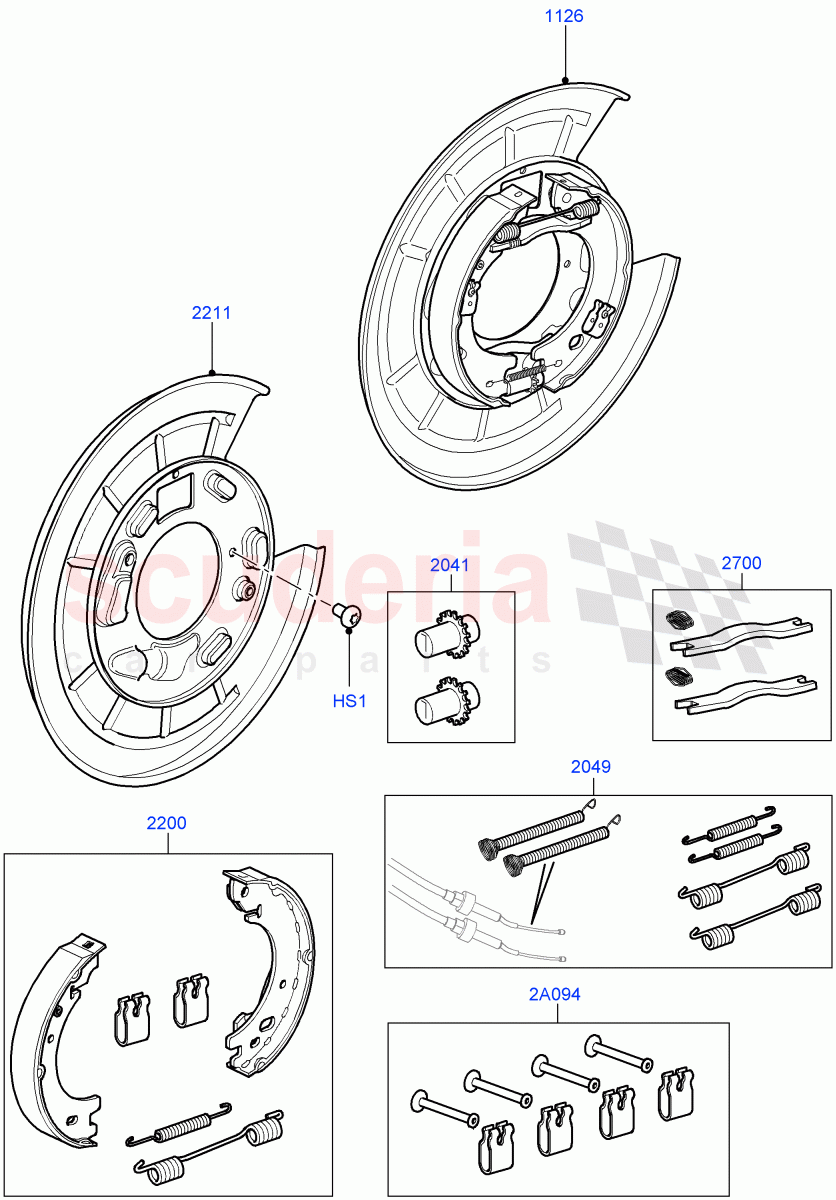

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP500020	SCREW	Enquire	To Order
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016366	BRAKE - REAR	Enquire	To Order
	LR013680	BRAKE - REAR	Enquire	To Order
	LR013679	BRAKE - REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SXS500011	SCREW - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMN500020	KIT - PARKING BRAKE SPRING REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SFS500012	BRAKE SHOE	Enquire	To Order
	LR025151	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013690	PLATE - BRAKE BACK	Enquire	To Order
	LR015246	PLATE - BRAKE BACK	Enquire	To Order
	LR013692	PLATE - BRAKE BACK	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SXR500010	ROD - PARKING PAWL ACTUATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMN500012	KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	SYP500020	SCREW	SYP500020 SCREW M6 X 10MM, Shield, Torx / From: AA000001 / To: AA222239	-	6	Enquire
HS1	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Shield, Torx / From: AA222240	-	6	Enquire
2A094	SMN500012	KIT	SMN500012 KIT From: AA000001	-	1	Enquire
1126	LR016366	BRAKE - REAR	LR016366 BRAKE - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Complete Assembly / From: AA000001	-	1	Enquire
1126	LR013680	BRAKE - REAR	LR013680 BRAKE - REAR 3.6L V8 32V DOHC EFi Diesel Lion / LH, Complete Assembly / From: AA000001	-	1	Enquire
1126	LR013679	BRAKE - REAR	LR013679 BRAKE - REAR 3.6L V8 32V DOHC EFi Diesel Lion / RH, Complete Assembly / From: AA000001	-	1	Enquire
1126	LR016365	BRAKE - REAR	LR016365 BRAKE - REAR 5.0L OHC SGDI SC V8 Petrol - AJ133 / RH, Complete Assembly / From: AA000001	-	1	Enquire
2041	SXS500011	SCREW - ADJUSTING	SXS500011 SCREW - ADJUSTING From: AA000001	-	1	Enquire
2049	SMN500020	KIT - PARKING BRAKE SPRING REPAIR	SMN500020 KIT - PARKING BRAKE SPRING REPAIR From: AA000001	-	1	Enquire
2200	SFS500012	BRAKE SHOE	SFS500012 BRAKE SHOE From: AA000001 / To: AA256675	-	2	Enquire
2200	LR025151	KIT - BRAKE LINING	LR025151 KIT - BRAKE LINING From: AA256676	-	2	Enquire
2211	LR013690	PLATE - BRAKE BACK	LR013690 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / RH / From: AA000001 / To: AA245590	-	1	Enquire
2211	LR015246	PLATE - BRAKE BACK	LR015246 PLATE - BRAKE BACK 5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA000001 / To: AA245590	-	1	Enquire
2211	LR013692	PLATE - BRAKE BACK	LR013692 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / LH / From: AA000001 / To: AA245590	-	1	Enquire
2211	LR015247	PLATE - BRAKE BACK	LR015247 PLATE - BRAKE BACK 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA000001 / To: AA245590	-	1	Enquire
2211	LR020490	PLATE - BRAKE BACK	LR020490 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / RH / From: AA245591 / To: AA256675	-	1	Enquire
2211	LR020492	PLATE - BRAKE BACK	LR020492 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / LH / From: AA245591 / To: AA256675	-	1	Enquire
2211	LR020491	Plate - Brake Back	LR020491 Plate - Brake Back 5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA245591 / To: AA256675	-	1	Enquire
2211	LR020493	Plate - Brake Back	LR020493 Plate - Brake Back 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA245591 / To: AA256675	-	1	Enquire
2211	LR025152	PLATE - BRAKE BACK	LR025152 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / RH / From: AA256676 / To: DA796535	-	1	Enquire
2211	LR025154	PLATE - BRAKE BACK	LR025154 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / LH / From: AA256676 / To: BA999999	-	1	Enquire
2211	LR025153	PLATE - BRAKE BACK	LR025153 PLATE - BRAKE BACK 5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: AA256676	-	1	Enquire
2211	LR025155	PLATE - BRAKE BACK	LR025155 PLATE - BRAKE BACK 5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: AA256676	-	1	Enquire
2211	LR048810	PLATE - BRAKE BACK	LR048810 PLATE - BRAKE BACK 3.0L 24V DOHC V6 TC Diesel / RH / From: DA796536	-	1	Enquire
2211	LR048812	PLATE - BRAKE BACK	LR048812 PLATE - BRAKE BACK 3.6L V8 32V DOHC EFi Diesel Lion / LH / From: CA000001	-	1	Enquire
2700	SXR500010	ROD - PARKING PAWL ACTUATING	SXR500010 ROD - PARKING PAWL ACTUATING From: AA000001	-	1	Enquire
