Front Brake Pipes (RHD) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Front Brake Pipes (RHD) ((V) FROMAA000001)

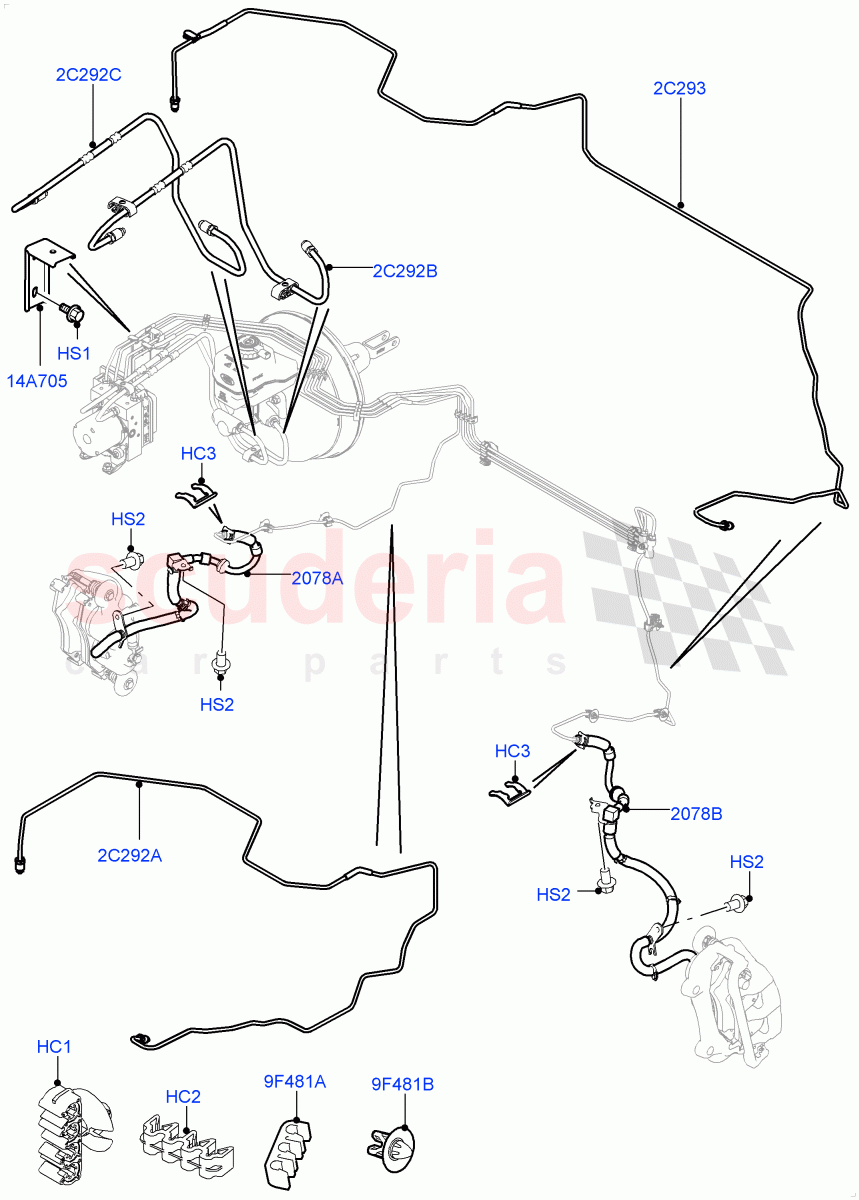

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR013757	CLIP - SPECIAL	LR013757 CLIP - SPECIAL 4 Way / From: AA000001	$3.03	3
HC2	SYC500040	CLIP	SYC500040 CLIP 4 Way / From: AA000001	$2.32	1
HC3	EJP7813	CLIP - HOSE IN STOCK	EJP7813 CLIP - HOSE Brake Hose / From: AA000001 IN STOCK	$2.36	2
HS1	FS106127L	SCREW	FS106127L SCREW Bracket, M6 x 12MM / From: AA000001	$2.04	2
HS2	FS108147	SCREW	FS108147 SCREW M8 X 14MM / From: AA000001	$0.55	4
2C292A	LR013748	TUBE - BRAKE	LR013748 TUBE - BRAKE RHD / Modulator To Front Hose (RH) / From: AA000001 / To: DA804166	$70.76	1
2C292A	LR048450	TUBE - BRAKE	LR048450 TUBE - BRAKE RHD / Modulator To Front Hose (RH) / From: DA804167	$65.22	1
2C292B	LR014218	TUBE - BRAKE	LR014218 TUBE - BRAKE RHD / Master Cylinder Primary / From: AA000001	$192.93	1
2C292C	LR014220	TUBE - BRAKE	LR014220 TUBE - BRAKE RHD / Master Cylinder Secondary / From: AA000001	$170.28	1
2C293	LR013752	TUBE	LR013752 TUBE RHD / Modulator To LH Front / From: AA000001	$77.52	1
9F481A	ADU8846	Clip	ADU8846 Clip 3 way / From: AA000001	$1.00	1
9F481B	LR013734	CLIP	LR013734 CLIP Clip, Single / From: AA000001	$1.18	4
14A705	ADU780051	BRACKET	ADU780051 BRACKET From: AA000001	$4.89	1
2078A	LR018106	HOSE - BRAKE	LR018106 HOSE - BRAKE RH / From: AA000001 / To: DA786525	$93.64	1
2078A	LR044355	HOSE - BRAKE	LR044355 HOSE - BRAKE RH / From: DA786526 / To: DA814631	$86.90	1
2078A	LR058021	HOSE - BRAKE	LR058021 HOSE - BRAKE RH / From: DA814632	$96.68	1
2078B	LR019329	HOSE - BRAKE	LR019329 HOSE - BRAKE LH / From: AA000001 / To: DA786525	$94.48	1
2078B	LR044354	HOSE - BRAKE	LR044354 HOSE - BRAKE LH / From: DA786526 / To: DA814631	$89.66	1
2078B	LR058020	HOSE - BRAKE	LR058020 HOSE - BRAKE LH / From: DA814632	$93.64	1
