Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Head (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

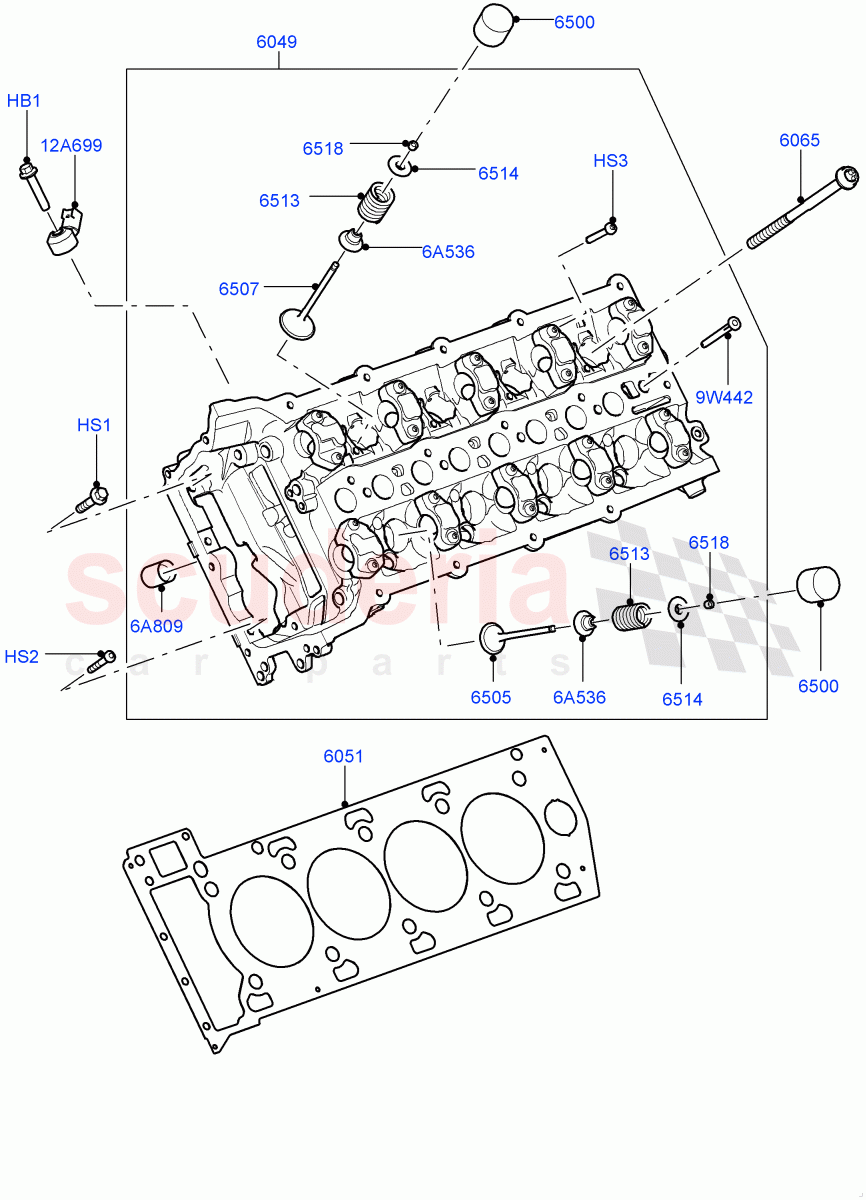

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010905	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011265	CYLINDER HEAD	Enquire	To Order
	LR011266	CYLINDER HEAD	Enquire	To Order
	LR026148	CYLINDER HEAD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010693	GASKET-CYLINDER HEAD	Enquire	To Order
	LR010692	GASKET-CYLINDER HEAD	Enquire	To Order
	LR105294	GASKET-CYLINDER HEAD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4677857	BOLT - HEX.HEAD	Enquire	To Order
	LR026143	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4624031	TAPPET - VALVE	Enquire	To Order
	4624032	TAPPET - VALVE	Enquire	To Order
	4701390	TAPPET - VALVE	Enquire	To Order

...and 97 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR010698	VALVE - EXHAUST	Enquire	To Order
	LR035551	VALVE - EXHAUST	Enquire	To Order
	LR055528	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010863	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010701	SPRING - VALVE	Enquire	To Order
	LR038167	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010702	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008878	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010753	SEAT - SPRING	Enquire	To Order
	LR038164	Seat - Spring	Enquire	To Order
	LR054369	SEAT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077674	VALVE - CHECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011996	TUBE - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008877	SENSOR - ENGINE KNOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010903	BOLT	LR010903 BOLT knock sensor, M8 x 40MM / From: AA000001	-	4	Enquire
HS1	LR011700	SCREW	LR011700 SCREW M8 X 35MM / From: AA000001	-	2	Enquire
HS2	LR010905	SCREW	LR010905 SCREW M6 x 35MM / From: AA000001	-	4	Enquire
HS3	LR011271	SCREW	LR011271 SCREW M6 x 30MM / From: AA000001	-	40	Enquire
6A536	LR010753	SEAT - SPRING	LR010753 SEAT - SPRING From: AA000001 / To: CA739136	-	32	Enquire
6A536	LR038164	Seat - Spring	LR038164 Seat - Spring From: CA739137 / To: DA800001	-	32	Enquire
6A536	LR054369	SEAT - SPRING	LR054369 SEAT - SPRING From: DA800001	-	32	Enquire
6A809	LR077674	VALVE - CHECK	LR077674 VALVE - CHECK	-	1	Enquire
9W442	LR011996	TUBE - DRAIN	LR011996 TUBE - DRAIN Drain / From: AA000001	-	2	Enquire
12A699	LR008877	SENSOR - ENGINE KNOCK	LR008877 SENSOR - ENGINE KNOCK From: AA000001	-	4	Enquire
6049	LR011265	CYLINDER HEAD	LR011265 CYLINDER HEAD RH / From: AA000001 / To: BA270634	-	1	Enquire
6049	LR011266	CYLINDER HEAD	LR011266 CYLINDER HEAD LH / From: AA000001 / To: BA270634	-	1	Enquire
6049	LR026148	CYLINDER HEAD	LR026148 CYLINDER HEAD RH / From: BA270635 / To: CA739136	-	1	Enquire
6049	LR026150	CYLINDER HEAD	LR026150 CYLINDER HEAD LH / From: BA270635 / To: CA739136	-	1	Enquire
6049	LR038754	CYLINDER HEAD	LR038754 CYLINDER HEAD RH / From: CA739137	-	1	Enquire
6049	LR038755	CYLINDER HEAD	LR038755 CYLINDER HEAD LH / From: CA739137	-	1	Enquire
6051	LR010693	GASKET-CYLINDER HEAD	LR010693 GASKET-CYLINDER HEAD LH, With M10 Thread For Cylinder Head Mounting Bolt / From: AA000001 / To: BA270634	-	1	Enquire
6051	LR010692	GASKET-CYLINDER HEAD	LR010692 GASKET-CYLINDER HEAD RH, With M10 Thread For Cylinder Head Mounting Bolt / From: AA000001 / To: BA270634	-	1	Enquire
6051	LR105294	GASKET-CYLINDER HEAD	LR105294 GASKET-CYLINDER HEAD RH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA270635	-	1	Enquire
6051	LR181763	GASKET - CYLINDER HEAD	LR181763 GASKET - CYLINDER HEAD LH, With M10 Or M11 Thread For Cylinder Head Mounting Bolt / From: BA270635	-	1	Enquire
6065	4677857	BOLT - HEX.HEAD	4677857 BOLT - HEX.HEAD Before Ordering Please Refer To SSM (Special Service Message) - 59037, M10 X 175MM, Please Order This Bolt For Engine Numbers Up To 11122107524 / From: AA000001	-	20	Enquire
6065	LR026143	BOLT - HEX.HEAD	LR026143 BOLT - HEX.HEAD Before Ordering Please Refer To SSM (Special Service Message) - 59037, Before Ordering Please Refer To SSM (Special Service Message) - 61197, M11 X 178, Please Order This Bolt For Engine Numbers From 11122107525 / From: AA000001	-	20	Enquire
6500	4624031	TAPPET - VALVE	4624031 TAPPET - VALVE 2.950mm / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624032	TAPPET - VALVE	4624032 TAPPET - VALVE 2.965MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4701390	TAPPET - VALVE	4701390 TAPPET - VALVE 2.98MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624034	TAPPET - VALVE	4624034 TAPPET - VALVE 2.995MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624037	TAPPET - VALVE	4624037 TAPPET - VALVE 3.010MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624038	TAPPET - VALVE	4624038 TAPPET - VALVE 3.025MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624040	TAPPET - VALVE	4624040 TAPPET - VALVE 3.040MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624043	TAPPET - VALVE	4624043 TAPPET - VALVE 3.055MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624045	TAPPET - VALVE	4624045 TAPPET - VALVE 3.070MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624049	TAPPET - VALVE	4624049 TAPPET - VALVE 3.085MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624051	TAPPET - VALVE	4624051 TAPPET - VALVE 3.100MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624054	TAPPET - VALVE	4624054 TAPPET - VALVE 3.115MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624056	TAPPET - VALVE	4624056 TAPPET - VALVE 3.130MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624060	TAPPET - VALVE	4624060 TAPPET - VALVE 3.145MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624061	TAPPET - VALVE	4624061 TAPPET - VALVE 3.160MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624062	TAPPET - VALVE	4624062 TAPPET - VALVE 3.175MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624063	TAPPET - VALVE	4624063 TAPPET - VALVE 3.190MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624064	TAPPET - VALVE	4624064 TAPPET - VALVE 3.205MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4649518	TAPPET - VALVE	4649518 TAPPET - VALVE 3.220MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624069	TAPPET - VALVE	4624069 TAPPET - VALVE 3.235MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624071	TAPPET - VALVE	4624071 TAPPET - VALVE 3.250MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624072	tappet-valve	4624072 tappet-valve 3.265MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037306	TAPPET - VALVE	LR037306 TAPPET - VALVE 3.280MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624074	TAPPET - VALVE	4624074 TAPPET - VALVE 3.295MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037308	TAPPET - VALVE	LR037308 TAPPET - VALVE 3.310MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037309	TAPPET - VALVE	LR037309 TAPPET - VALVE 3.325MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037310	TAPPET - VALVE	LR037310 TAPPET - VALVE 3.340MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037311	TAPPET - VALVE	LR037311 TAPPET - VALVE 3.355MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624087	TAPPET - VALVE	4624087 TAPPET - VALVE 3.370MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037313	TAPPET - VALVE	LR037313 TAPPET - VALVE 3.385MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037314	TAPPET - VALVE	LR037314 TAPPET - VALVE 3.400MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037315	TAPPET - VALVE	LR037315 TAPPET - VALVE 3.415MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4649519	TAPPET - VALVE	4649519 TAPPET - VALVE 3.430MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624091	TAPPET - VALVE	4624091 TAPPET - VALVE 3.445MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037318	TAPPET - VALVE	LR037318 TAPPET - VALVE 3.460MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624095	TAPPET - VALVE	4624095 TAPPET - VALVE 3.475MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624096	TAPPET - VALVE	4624096 TAPPET - VALVE 3.490MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624099	TAPPET - VALVE	4624099 TAPPET - VALVE 3.505MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4649521	TAPPET - VALVE	4649521 TAPPET - VALVE 3.520MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624102	TAPPET - VALVE	4624102 TAPPET - VALVE 3.535MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624103	TAPPET - VALVE	4624103 TAPPET - VALVE 3.550MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624104	TAPPET - VALVE	4624104 TAPPET - VALVE 3.565MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624107	TAPPET - VALVE	4624107 TAPPET - VALVE 3.580MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624108	TAPPET - VALVE	4624108 TAPPET - VALVE 3.595MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624110	TAPPET - VALVE	4624110 TAPPET - VALVE 3.610MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624111	TAPPET - VALVE	4624111 TAPPET - VALVE 3.625MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624112	TAPPET - VALVE	4624112 TAPPET - VALVE 3.640MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624113	TAPPET - VALVE	4624113 TAPPET - VALVE 3.655MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4624115	TAPPET - VALVE	4624115 TAPPET - VALVE 3.670MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	4649522	TAPPET - VALVE	4649522 TAPPET - VALVE 3.685MM / From: AA000001 / To: CA739136	-	-	Enquire
6500	LR037205	TAPPET - VALVE	LR037205 TAPPET - VALVE 2.950mm / From: CA739137	-	-	Enquire
6500	LR037211	TAPPET - VALVE	LR037211 TAPPET - VALVE 2.965MM / From: CA739137	-	-	Enquire
6500	LR037229	TAPPET - VALVE	LR037229 TAPPET - VALVE 2.98MM / From: CA739137	-	-	Enquire
6500	LR037243	TAPPET - VALVE	LR037243 TAPPET - VALVE 2.995MM / From: CA739137	-	-	Enquire
6500	LR037252	TAPPET - VALVE	LR037252 TAPPET - VALVE 3.010MM / From: CA739137	-	-	Enquire
6500	LR037253	TAPPET - VALVE	LR037253 TAPPET - VALVE 3.025MM / From: CA739137	-	-	Enquire
6500	LR037254	TAPPET - VALVE	LR037254 TAPPET - VALVE 3.040MM / From: CA739137	-	-	Enquire
6500	LR037258	TAPPET - VALVE	LR037258 TAPPET - VALVE 3.055MM / From: CA739137	-	-	Enquire
6500	LR037262	TAPPET - VALVE	LR037262 TAPPET - VALVE 3.070MM / From: CA739137	-	-	Enquire
6500	LR037264	TAPPET - VALVE	LR037264 TAPPET - VALVE 3.085MM / From: CA739137	-	-	Enquire
6500	LR037267	TAPPET - VALVE	LR037267 TAPPET - VALVE 3.100MM / From: CA739137	-	-	Enquire
6500	LR037269	TAPPET - VALVE	LR037269 TAPPET - VALVE 3.115MM / From: CA739137	-	-	Enquire
6500	LR037272	TAPPET - VALVE	LR037272 TAPPET - VALVE 3.130MM / From: CA739137	-	-	Enquire
6500	LR037275	TAPPET - VALVE	LR037275 TAPPET - VALVE 3.145MM / From: CA739137	-	-	Enquire
6500	LR037279	TAPPET - VALVE	LR037279 TAPPET - VALVE 3.160MM / From: CA739137	-	-	Enquire
6500	LR037284	TAPPET - VALVE	LR037284 TAPPET - VALVE 3.175MM / From: CA739137	-	-	Enquire
6500	LR037286	TAPPET - VALVE	LR037286 TAPPET - VALVE 3.190MM / From: CA739137	-	-	Enquire
6500	LR037287	TAPPET - VALVE	LR037287 TAPPET - VALVE 3.205MM / From: CA739137	-	-	Enquire
6500	LR037288	TAPPET - VALVE	LR037288 TAPPET - VALVE 3.220MM / From: CA739137	-	-	Enquire
6500	LR037289	TAPPET - VALVE	LR037289 TAPPET - VALVE 3.235MM / From: CA739137	-	-	Enquire
6500	LR037292	TAPPET - VALVE	LR037292 TAPPET - VALVE 3.250MM / From: CA739137	-	-	Enquire
6500	LR037298	TAPPET - VALVE	LR037298 TAPPET - VALVE 3.265MM / From: CA739137	-	-	Enquire
6500	LR037306	TAPPET - VALVE	LR037306 TAPPET - VALVE 3.280MM / From: CA739137	-	-	Enquire
6500	LR037307	TAPPET - VALVE	LR037307 TAPPET - VALVE 3.295MM / From: CA739137	-	-	Enquire
6500	LR037308	TAPPET - VALVE	LR037308 TAPPET - VALVE 3.310MM / From: CA739137	-	-	Enquire
6500	LR037309	TAPPET - VALVE	LR037309 TAPPET - VALVE 3.325MM / From: CA739137	-	-	Enquire
6500	LR037310	TAPPET - VALVE	LR037310 TAPPET - VALVE 3.340MM / From: CA739137	-	-	Enquire
6500	LR037311	TAPPET - VALVE	LR037311 TAPPET - VALVE 3.355MM / From: CA739137	-	-	Enquire
6500	LR037312	TAPPET - VALVE	LR037312 TAPPET - VALVE 3.370MM / From: CA739137	-	-	Enquire
6500	LR037313	TAPPET - VALVE	LR037313 TAPPET - VALVE 3.385MM / From: CA739137	-	-	Enquire
6500	LR037314	TAPPET - VALVE	LR037314 TAPPET - VALVE 3.400MM / From: CA739137	-	-	Enquire
6500	LR037315	TAPPET - VALVE	LR037315 TAPPET - VALVE 3.415MM / From: CA739137	-	-	Enquire
6500	LR037316	TAPPET - VALVE	LR037316 TAPPET - VALVE 3.430MM / From: CA739137	-	-	Enquire
6500	LR037317	TAPPET - VALVE	LR037317 TAPPET - VALVE 3.445MM / From: CA739137	-	-	Enquire
6500	LR037318	TAPPET - VALVE	LR037318 TAPPET - VALVE 3.460MM / From: CA739137	-	-	Enquire
6500	LR037322	TAPPET - VALVE	LR037322 TAPPET - VALVE 3.475MM / From: CA739137	-	-	Enquire
6500	LR037328	TAPPET - VALVE	LR037328 TAPPET - VALVE 3.490MM / From: CA739137	-	-	Enquire
6500	LR037329	TAPPET - VALVE	LR037329 TAPPET - VALVE 3.505MM / From: CA739137	-	-	Enquire
6500	LR037330	TAPPET - VALVE	LR037330 TAPPET - VALVE 3.520MM / From: CA739137	-	-	Enquire
6500	LR037331	TAPPET - VALVE	LR037331 TAPPET - VALVE 3.535MM / From: CA739137	-	-	Enquire
6500	LR037332	TAPPET - VALVE	LR037332 TAPPET - VALVE 3.550MM / From: CA739137	-	-	Enquire
6500	LR037333	TAPPET - VALVE	LR037333 TAPPET - VALVE 3.565MM / From: CA739137	-	-	Enquire
6500	LR037334	TAPPET - VALVE	LR037334 TAPPET - VALVE 3.580MM / From: CA739137	-	-	Enquire
6500	LR037335	TAPPET - VALVE	LR037335 TAPPET - VALVE 3.595MM / From: CA739137	-	-	Enquire
6500	LR037336	TAPPET - VALVE	LR037336 TAPPET - VALVE 3.610MM / From: CA739137	-	-	Enquire
6500	LR037343	TAPPET - VALVE	LR037343 TAPPET - VALVE 3.625MM / From: CA739137	-	-	Enquire
6500	LR037344	TAPPET - VALVE	LR037344 TAPPET - VALVE 3.640MM / From: CA739137	-	-	Enquire
6500	LR037345	TAPPET - VALVE	LR037345 TAPPET - VALVE 3.655MM / From: CA739137	-	-	Enquire
6500	LR037346	TAPPET - VALVE	LR037346 TAPPET - VALVE 3.670MM / From: CA739137	-	-	Enquire
6500	LR037347	TAPPET - VALVE	LR037347 TAPPET - VALVE 3.685MM / From: CA739137	-	-	Enquire
6505	LR010698	VALVE - EXHAUST	LR010698 VALVE - EXHAUST From: AA000001 / To: CA999999	-	16	Enquire
6505	LR035551	VALVE - EXHAUST	LR035551 VALVE - EXHAUST From: DA000001 / To: DA814631	-	16	Enquire
6505	LR055528	VALVE - EXHAUST	LR055528 VALVE - EXHAUST From: DA814632	-	16	Enquire
6507	LR010863	VALVE - INLET	LR010863 VALVE - INLET From: AA000001	-	16	Enquire
6513	LR010701	SPRING - VALVE	LR010701 SPRING - VALVE From: AA000001 / To: CA739136	-	32	Enquire
6513	LR038167	SPRING - VALVE	LR038167 SPRING - VALVE From: CA739137	-	32	Enquire
6514	LR010702	RETAINER - VALVE SPRING	LR010702 RETAINER - VALVE SPRING From: AA000001	-	32	Enquire
6518	LR008878	COLLET - VALVE SPRING RETAINER	LR008878 COLLET - VALVE SPRING RETAINER From: AA000001	-	64	Enquire
