Cylinder Block And Plugs (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI SC V8 Petrol] - Cylinder Block And Plugs (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) FROMAA000001)

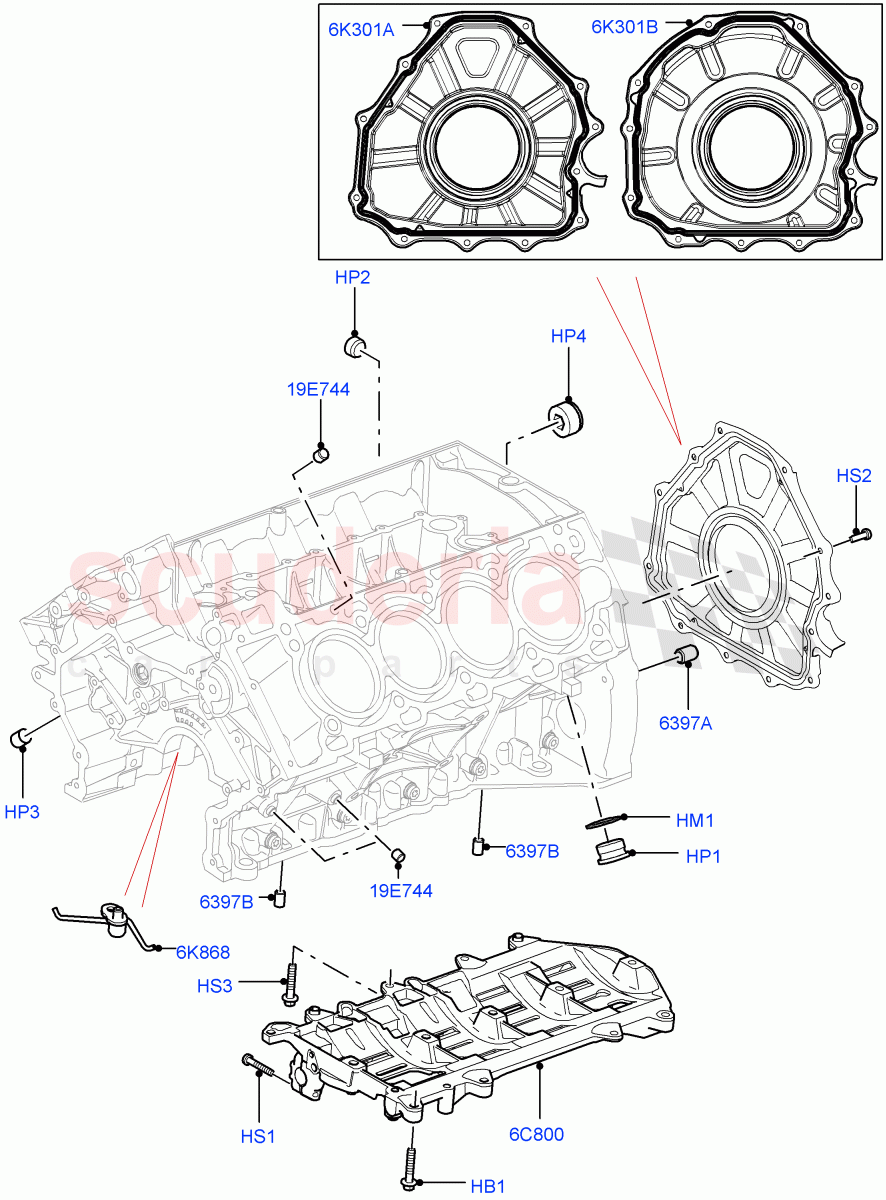

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4640315	SEAL - PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4640317	PLUG - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008871	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007132	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111116	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010905	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011212	TRAY - WINDAGE	Enquire	To Order
	LR021372	TRAY - WINDAGE	Enquire	To Order
	LR032084	TRAY - WINDAGE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091573	NOZZLE - PISTON COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYU500020	PIN - LOCATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011219	RETAINER AND SEAL - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037954	RETAINER AND SEAL - CRANKSHAFT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010903	BOLT	LR010903 BOLT M8 x 40MM, Windage Tray / From: AA000001	-	12	Enquire
HM1	4640315	SEAL - PLUG	4640315 SEAL - PLUG 28.25 X 39.13 X 4, Sealing Washer / From: AA000001	-	1	Enquire
HP1	4640317	PLUG - DRAIN	4640317 PLUG - DRAIN M30 / From: AA000001	-	1	Enquire
HP2	LR008871	PLUG - ENGINE	LR008871 PLUG - ENGINE 1/2" / From: AA000001	-	1	Enquire
HP3	LR007132	RIVET	LR007132 RIVET 16 MM, Rivet / From: AA000001	-	1	Enquire
HP4	LR111116	PLUG - ENGINE	LR111116 PLUG - ENGINE M18 X 1.5 X 10MM / From: AA000001	-	1	Enquire
HS1	LR010905	SCREW	LR010905 SCREW Fuel Pumps Shaft Carrier, M6 x 35MM / From: AA000001	-	8	Enquire
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Retainer - Seal / From: AA000001	-	12	Enquire
HS3	LR011700	SCREW	LR011700 SCREW Fuel Pumps Shaft Carrier, M8 X 35MM / From: AA000001	-	1	Enquire
6C800	LR011212	TRAY - WINDAGE	LR011212 TRAY - WINDAGE Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: AA000001 / To: AA240815	-	1	Enquire
6C800	LR021372	TRAY - WINDAGE	LR021372 TRAY - WINDAGE Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: AA240816 / To: CA739136	-	1	Enquire
6C800	LR032084	TRAY - WINDAGE	LR032084 TRAY - WINDAGE Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: CA739137 / To: DA813138	-	1	Enquire
6C800	LR053447	TRAY - OIL	LR053447 TRAY - OIL Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: DA813139	-	1	Enquire
6K301A	LR011219	RETAINER AND SEAL - CRANKSHAFT	LR011219 RETAINER AND SEAL - CRANKSHAFT 1MM Thickness, Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, Rear, Up To Engine Serial Number - 12060617042 / From: AA000001	-	1	Enquire
6K301B	LR037954	RETAINER AND SEAL - CRANKSHAFT	LR037954 RETAINER AND SEAL - CRANKSHAFT 1MM Thickness, Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, From Engine Serial Number - 12060617043, Rear / From: AA000001	-	1	Enquire
6K868	LR091573	NOZZLE - PISTON COOLING	LR091573 NOZZLE - PISTON COOLING From: AA000001	-	4	Enquire
19E744	PYU500020	PIN - LOCATING	PYU500020 PIN - LOCATING	-	6	Enquire
6397A	4603182	DOWEL	4603182 DOWEL 15.7MM, Cyl Block to Flywheel Housing, Pin - Dowell / From: AA000001	-	2	Enquire
6397B	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN Cylinder Block To Oil Pan,	-	2	Enquire
