Parking Brake (Brake Shoes) ((V) Fromba701292)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Parking Brake (Brake Shoes) ((V) FROMBA701292)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR018509 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR013679 BRAKE - REAR $216.99 To Order
LR013680 BRAKE - REAR $259.05 To Order
LR016365 BRAKE - REAR $216.99 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SXS500011 SCREW - ADJUSTING $18.88 IN STOCK
Photo Part No Description Price (each) Stock
LR031944 KIT - PARKING BRAKE SPRING REPAIR $27.19 To Order
Photo Part No Description Price (each) Stock
LR031947 KIT - BRAKE LINING $132.06 To Order
Photo Part No Description Price (each) Stock
LR048811 PLATE - BRAKE BACK $115.89 To Order
LR048813 PLATE - BRAKE BACK $102.41 To Order
LR025154 PLATE - BRAKE BACK $101.35 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031946 ROD - PARKING PAWL ACTUATING $22.08 To Order
Photo Part No Description Price (each) Stock
SMN500012 KIT $16.73 To Order
View All

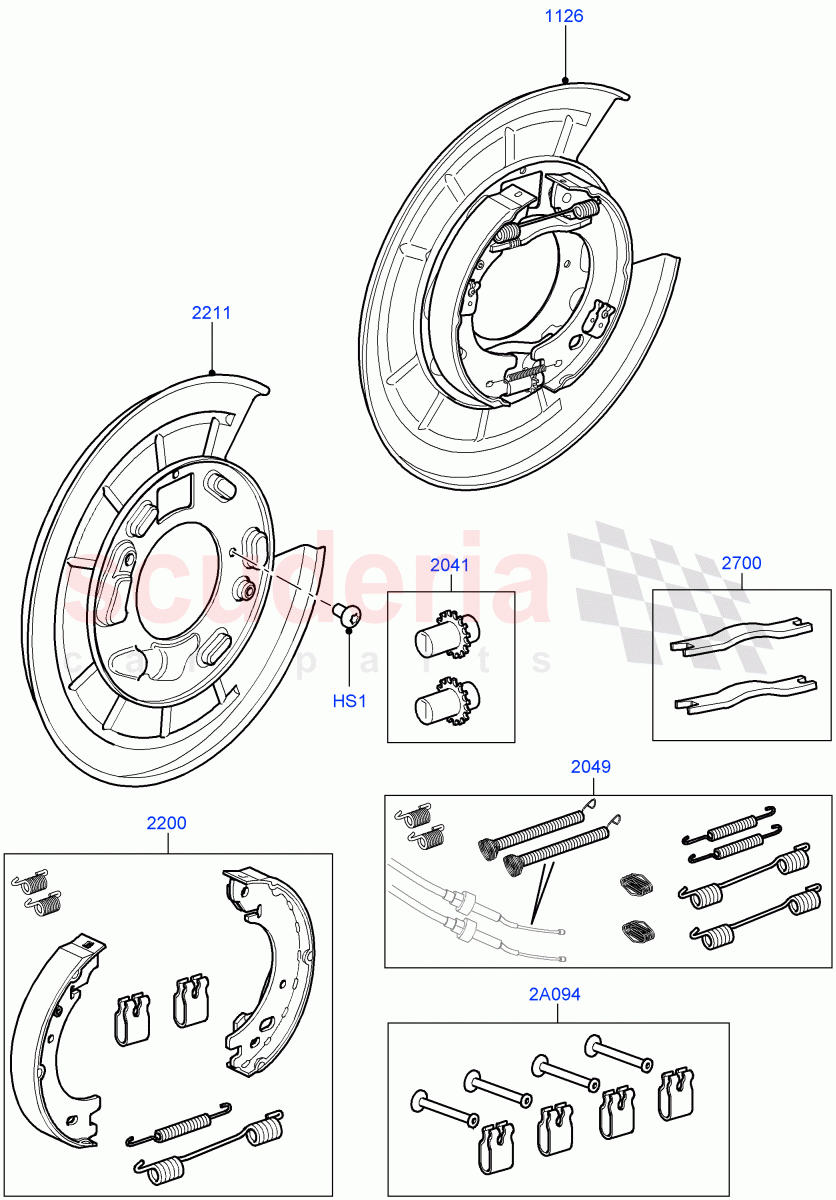

Parking Brake (Brake Shoes) ((V) FROMBA701292) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR018509
SCREW
M6 X 10MM, Shield, Torx / From: BA701292
IN STOCK 		$1.19 6
2A094 SMN500012
KIT
From: BA701292 		$16.73 2
1126 LR013679
BRAKE - REAR
5.0L OHC SGDI NA V8 Petrol - AJ133 / RH, Complete Assembly / From: BA701292 		$216.99 1
1126 LR013680
BRAKE - REAR
5.0L OHC SGDI NA V8 Petrol - AJ133 / LH, Complete Assembly / From: BA701292 		$259.05 1
1126 LR016365
BRAKE - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH, Complete Assembly / From: BA701292 		$216.99 1
1126 LR016366
BRAKE - REAR
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH, Complete Assembly / From: BA701292 		$259.05 1
2041 SXS500011
SCREW - ADJUSTING
From: BA701292
IN STOCK 		$18.88 1
2049 LR031944
KIT - PARKING BRAKE SPRING REPAIR
From: BA701292 		$27.19 1
2200 LR031947
KIT - BRAKE LINING
From: BA701292 		$132.06 2
2211 LR048811
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: DA796536 		$115.89 1
2211 LR048813
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: DA796536 		$102.41 1
2211 LR025154
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / LH / From: BA701292 / To: DA796535 		$101.35 1
2211 LR025152
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: BA701292 / To: DA796535 		$110.61 1
2211 LR025155
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / LH / From: BA701292 / To: DA796535 		$102.41 1
2211 LR025153
PLATE - BRAKE BACK
5.0L OHC SGDI SC V8 Petrol - AJ133 / RH / From: BA701292 / To: DA796535 		$109.20 1
2211 LR048810
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / RH / From: DA796536 		$115.28 1
2211 LR048812
PLATE - BRAKE BACK
3.0L 24V DOHC V6 TC Diesel / LH / From: DA796536 		$115.28 1
2700 LR031946
ROD - PARKING PAWL ACTUATING
From: BA701292 		$22.08 1
