Front Brake Pipes (LHD) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Front Brake Pipes (LHD) ((V) FROMAA000001)

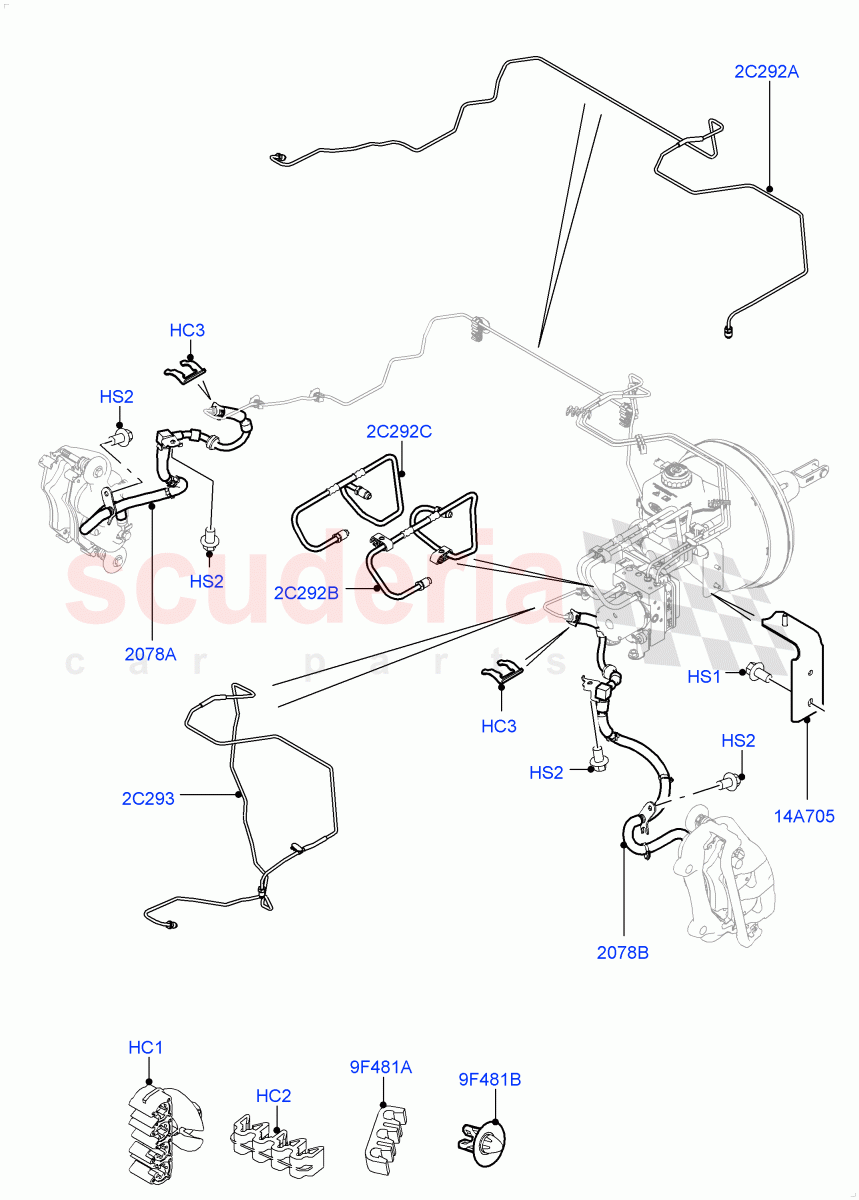

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013757	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYC500040	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106127L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108147	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018106	HOSE - BRAKE	Enquire	To Order
	LR044355	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019329	HOSE - BRAKE	Enquire	To Order
	LR044354	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013749	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU780051	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013747	TUBE - BRAKE	Enquire	To Order
	LR048449	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014217	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014219	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ADU8846	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013734	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR013757	CLIP - SPECIAL	LR013757 CLIP - SPECIAL 4 Way / From: AA000001	-	3	Enquire
HC2	SYC500040	CLIP	SYC500040 CLIP 4 Way / From: AA000001	-	1	Enquire
HC3	EJP7813	CLIP - HOSE	EJP7813 CLIP - HOSE Brake Hose / From: AA000001	-	2	Enquire
HS1	FS106127L	SCREW	FS106127L SCREW Bracket, M6 x 12MM / From: AA000001	-	2	Enquire
HS2	FS108147	SCREW	FS108147 SCREW M8 X 14MM / From: AA000001	-	4	Enquire
2C292A	LR013747	TUBE - BRAKE	LR013747 TUBE - BRAKE LHD / Modulator To Front Hose (RH) / From: AA000001 / To: DA804166	-	1	Enquire
2C292A	LR048449	TUBE - BRAKE	LR048449 TUBE - BRAKE LHD / Modulator To Front Hose (RH) / From: DA804167	-	1	Enquire
2C292B	LR014217	TUBE - BRAKE	LR014217 TUBE - BRAKE LHD / Master Cylinder Primary / From: AA000001	-	1	Enquire
2C292C	LR014219	TUBE - BRAKE	LR014219 TUBE - BRAKE LHD / Master Cylinder Secondary / From: AA000001	-	1	Enquire
2C293	LR013749	TUBE	LR013749 TUBE LHD / Modulator To LH Front / From: AA000001	-	1	Enquire
9F481A	ADU8846	Clip	ADU8846 Clip 3 way / From: AA000001	-	1	Enquire
9F481B	LR013734	CLIP	LR013734 CLIP Clip, Single / From: AA000001	-	4	Enquire
14A705	ADU780051	BRACKET	ADU780051 BRACKET From: AA000001	-	1	Enquire
2078A	LR018106	HOSE - BRAKE	LR018106 HOSE - BRAKE RH / From: AA000001 / To: DA786525	-	1	Enquire
2078A	LR044355	HOSE - BRAKE	LR044355 HOSE - BRAKE RH / From: DA786526 / To: DA814631	-	1	Enquire
2078B	LR019329	HOSE - BRAKE	LR019329 HOSE - BRAKE LH / From: AA000001 / To: DA786525	-	1	Enquire
2078B	LR044354	HOSE - BRAKE	LR044354 HOSE - BRAKE LH / From: DA786526 / To: DA814631	-	1	Enquire
