Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Fuses, Holders And Circuit Breakers (Engine Compartment) ((V) FROMAA000001)

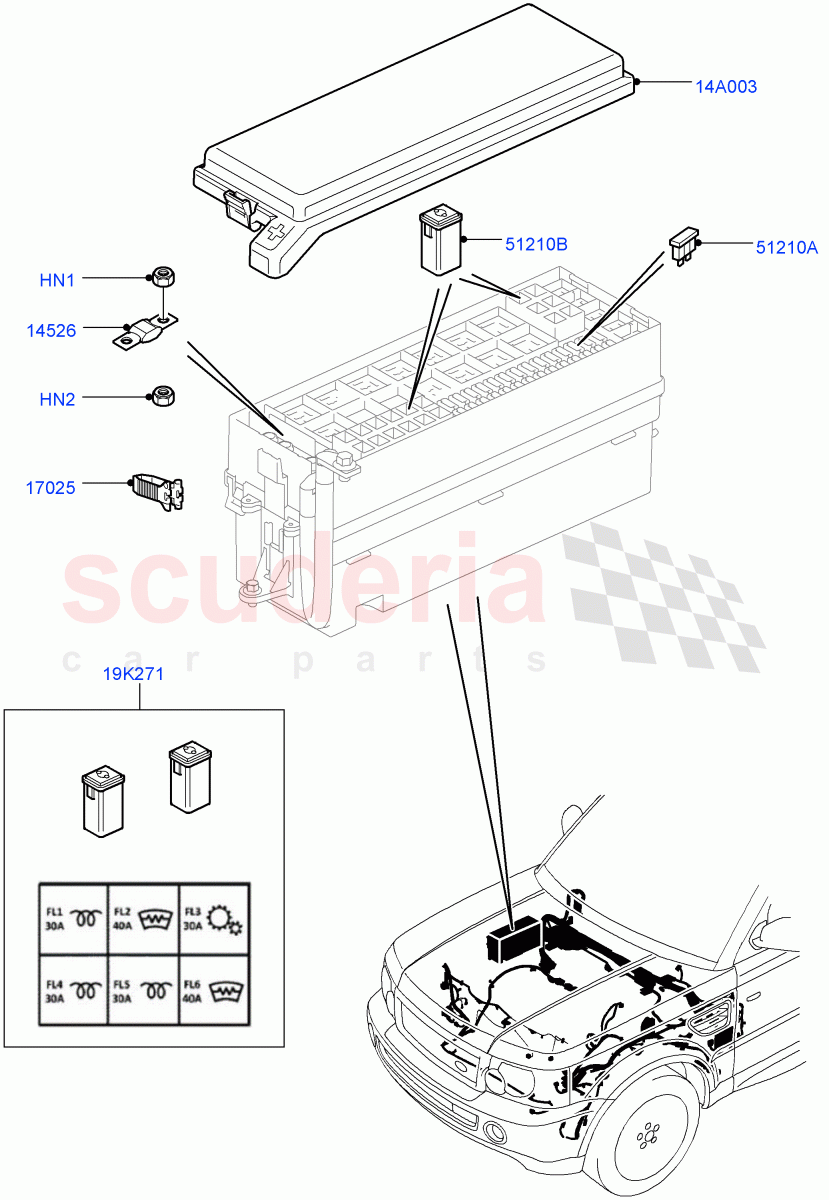

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YYH000320	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YYH000220	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003744	CIRCUIT BREAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQT500010	PLIERS - FUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014265	COVER - ADDITIONAL FUSE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047627	KIT - FUSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQF100490	FUSE	Enquire	To Order
	YQF100510	FUSE	Enquire	To Order
	YQF100520	FUSE	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YQG100420L	FUSE	Enquire	To Order
	YQG100410L	FUSE	Enquire	To Order
	YQG100430	FUSE	Enquire	To Order

...and 6 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	YYH000320	NUT	YYH000320 NUT M5 / From: AA000001	-	1	Enquire
HN2	YYH000220	NUT - LOCKING	YYH000220 NUT - LOCKING M8 / From: AA000001	-	1	Enquire
14A003	LR014265	COVER - ADDITIONAL FUSE BOX	LR014265 COVER - ADDITIONAL FUSE BOX From: AA000001	-	1	Enquire
19K271	LR047627	KIT - FUSES	LR047627 KIT - FUSES From: CA000001	-	1	Enquire
14526	LR003744	CIRCUIT BREAKER	LR003744 CIRCUIT BREAKER 60 AMP, Midi Fuse, Yellow / From: AA000001	-	1	Enquire
17025	YQT500010	PLIERS - FUSE	YQT500010 PLIERS - FUSE From: AA000001	-	1	Enquire
51210A	YQF100490	FUSE	YQF100490 FUSE Mini 5 Amp, Tan Minifuse / From: AA000001 / To: AA262641	-	1	Enquire
51210A	YQF100510	FUSE	YQF100510 FUSE MINI 10 AMP, Red Minifuse / From: AA000001 / To: AA262641	-	1	Enquire
51210A	YQF100520	FUSE	YQF100520 FUSE Blue Minifuse, MINI 15 AMP / From: AA000001 / To: AA262641	-	1	Enquire
51210A	YQF100530	FUSE	YQF100530 FUSE 20 AMP, Yellow Minifuse / From: AA000001 / To: AA262641	-	1	Enquire
51210A	YQF100540	FUSE	YQF100540 FUSE 25 AMP, Natural Minifuse / From: AA000001 / To: AA262641	-	1	Enquire
51210A	YQF100550	FUSE	YQF100550 FUSE Green Minifuse, MINI 30 AMP / From: AA000001 / To: AA262641	-	1	Enquire
51210A	LR003737	FUSE	LR003737 FUSE 5 AMP, Tan Minifuse / From: BA000001	-	1	Enquire
51210A	LR003739	FUSE	LR003739 FUSE 10 AMP, Red Minifuse / From: BA000001	-	1	Enquire
51210A	LR003740	FUSE	LR003740 FUSE 15 AMP, Blue Minifuse / From: BA000001	-	1	Enquire
51210A	LR003741	FUSE	LR003741 FUSE 20 AMP, Yellow Minifuse / From: BA000001	-	1	Enquire
51210A	LR003742	FUSE	LR003742 FUSE 25 AMP, Natural Minifuse / From: BA000001	-	1	Enquire
51210A	LR003743	FUSE	LR003743 FUSE 30 AMP, Green Minifuse / From: BA000001	-	1	Enquire
51210B	YQG100420L	FUSE	YQG100420L FUSE 40 AMP, Female, Green, Square / From: AA000001 / To: AA262641	-	1	Enquire
51210B	YQG100410L	FUSE	YQG100410L FUSE 30 AMP, Female, Pink, Square / From: AA000001 / To: AA262641	-	1	Enquire
51210B	YQG100430	FUSE	YQG100430 FUSE 50 AMP, Female, Square / From: AA000001 / To: AA262641	-	1	Enquire
51210B	YQG100440	FUSE	YQG100440 FUSE 60 AMP, Fuseable Link / From: AA000001	-	1	Enquire
51210B	LR019937	FUSE	LR019937 FUSE 50 AMP, Female, Square / From: BA262642	-	1	Enquire
51210B	LR003735	FUSE	LR003735 FUSE 30 AMP, High Profile, Pink J-Case Fuse / From: BA262642	-	1	Enquire
51210B	LR003736	FUSE	LR003736 FUSE 40 AMP, Green J-Case Fuse / From: BA262642	-	1	Enquire
51210B	LR030045	FUSE	LR030045 FUSE 30 AMP, Low Profile, Pink J-Case Fuse / From: BA262642	-	-	Enquire
51210B	LR075976	CIRCUIT BREAKER	LR075976 CIRCUIT BREAKER 60 AMP, Low Profile, Yellow J-Case Fuse / From: AA000001	-	1	Enquire
