Electrical Wiring - Engine And Dash (Engine) (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Electrical Wiring - Engine And Dash (Engine) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010904 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4556037 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR011500 HEAT SHIELD - CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR014009 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR011950 WIRE - KNOCK SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR014007 WIRE Enquire To Order
LR020224 WIRE Enquire To Order
LR044092 WIRING - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR018461 WIRE Enquire To Order
LR020129 WIRE Enquire To Order
Photo Part No Description Price (each) Stock
LR018462 WIRE Enquire To Order
Photo Part No Description Price (each) Stock
LR012054 BRACKET - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR012055 BRACKET - CABLE MOUNTING Enquire To Order
View All

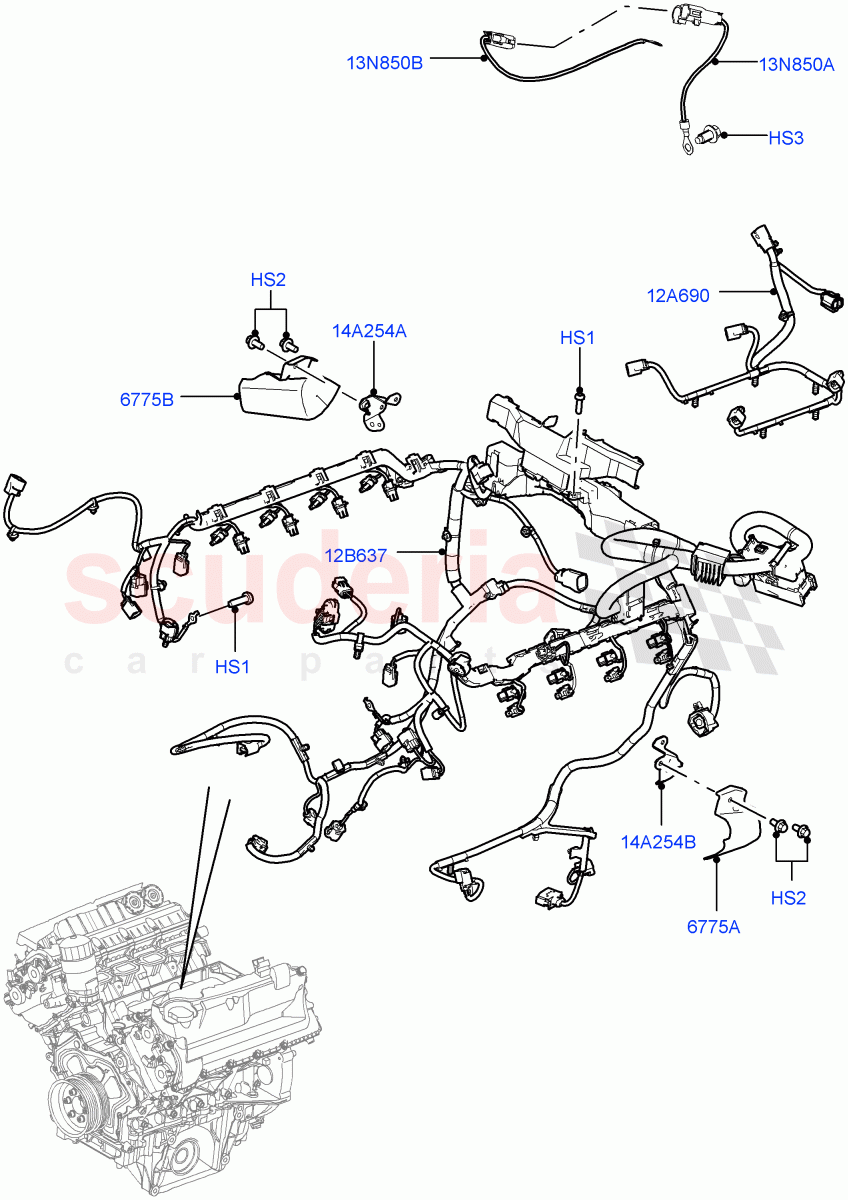

Electrical Wiring - Engine And Dash (Engine) (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR010904
SCREW
M6 X 20MM / From: AA000001 		- 1 Enquire
HS2 FA106126
SCREW
Heat Shield, Hexagonal Head, M6 x 12MM / From: AA000001 		- 2 Enquire
HS3 4556037
SCREW
Hexagonal Head, M10 x 16MM / From: AA000001 		- 1 Enquire
12A690 LR011950
WIRE - KNOCK SENSOR
knock sensor / From: AA000001 		- 1 Enquire
12B637 LR014007
WIRE
Engine / From: AA000001 / To: AA226007 		- 1 Enquire
12B637 LR020224
WIRE
Engine / From: AA226008 / To: DA771217 		- 1 Enquire
12B637 LR044092
WIRING - ENGINE
Engine / From: DA771218 		- 1 Enquire
13N850A LR018461
WIRE
Earth Lead To Body, To Cylinder Head / From: AA000001 / To: AA227813 		- 1 Enquire
13N850A LR020129
WIRE
Earth Lead To Body, To Cylinder Head / From: AA227814 		- 1 Enquire
13N850B LR018462
WIRE
Earth Lead To Body / From: AA000001 		- 1 Enquire
14A254A LR012054
BRACKET - WIRING
RH, Connector / From: AA000001 		- 1 Enquire
14A254B LR012055
BRACKET - CABLE MOUNTING
LH, Connector / From: AA000001 		- 1 Enquire
6775A LR011500
HEAT SHIELD - CONNECTOR
LH, Connector / From: AA000001 		- 1 Enquire
6775B LR014009
HEAT SHIELD
RH, Connector / From: AA000001 		- 1 Enquire
