Rear Window Wiper And Washer ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] - Rear Window Wiper And Washer ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031753 CLIP - PIPE Enquire To Order
Photo Part No Description Price (each) Stock
DLP500010 NUT - WIPER ARM PIVOT Enquire To Order
Photo Part No Description Price (each) Stock
DYH500140 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
DLB500014 MOTOR - WIPER Enquire To Order
LR029319 MOTOR - WIPER Enquire To Order
LR029777 MOTOR - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
DKB500720 ARM - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
DKB500680 BLADE - WIPER Enquire To Order
Photo Part No Description Price (each) Stock
LR020166 JET Enquire To Order
LR031754 JET - REAR WINDOW WASHER Enquire To Order
LR032197 JET - REAR WINDOW WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR015360 HOSE - WINDSHIELD WASHER Enquire To Order
LR023446 HOSE - WINDSHIELD WASHER Enquire To Order
LR029600 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR015361 HOSE - WINDSHIELD WASHER Enquire To Order
Photo Part No Description Price (each) Stock
DLD500034 SEAL Enquire To Order
LR030338 SEAL - WIPER MOTOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
DKG500011PMD CAP - WIPER ARM Enquire To Order
View All

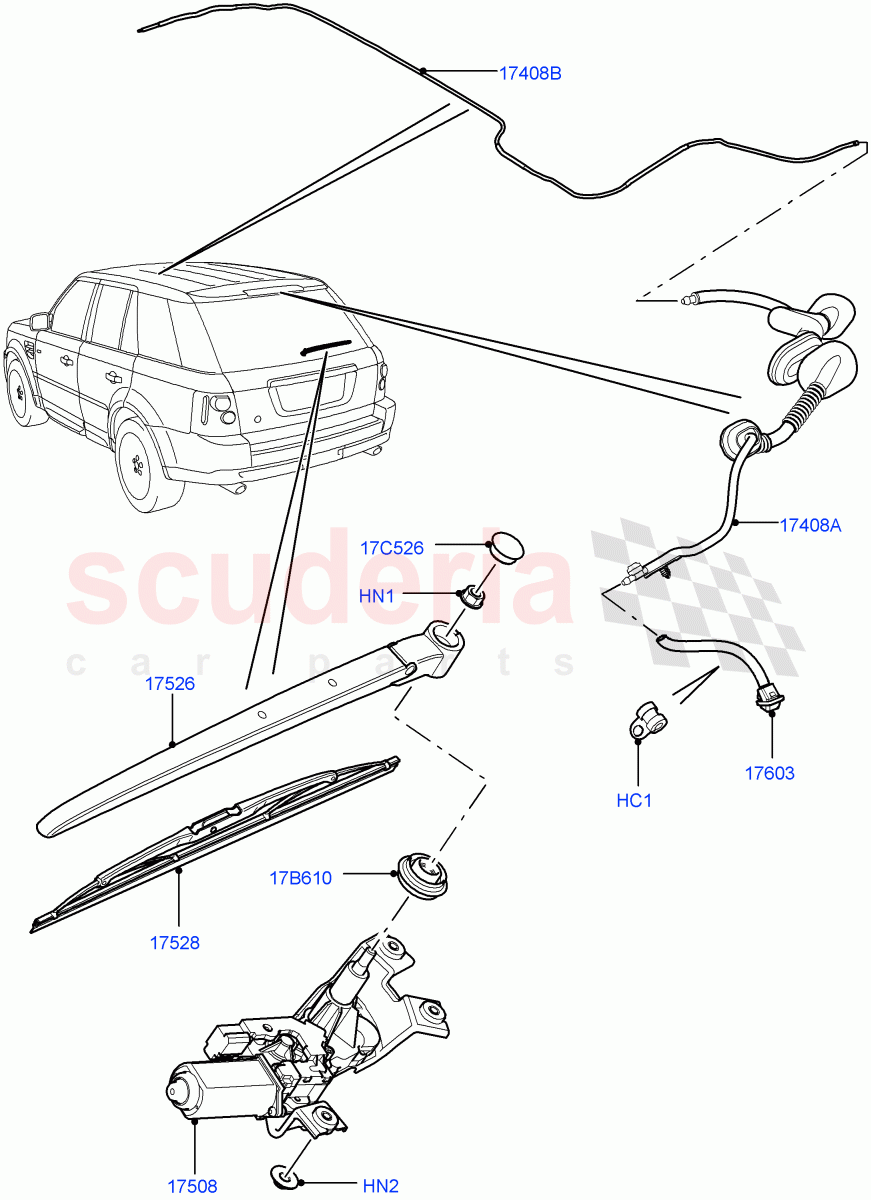

Rear Window Wiper And Washer ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR031753
CLIP - PIPE
10MM, Retains Washer Hose / From: CA000001 		- 1 Enquire
HN1 DLP500010
NUT - WIPER ARM PIVOT
M8, Wiper Arm / From: AA000001 		- 1 Enquire
HN2 DYH500140
NUT AND WASHER - HEX.
Attaches Wiper Motor, M6 / From: AA000001 		- 3 Enquire
17B610 DLD500034
SEAL
Motor - Rear Window Wiper / From: AA000001 / To: BA999999 		- 1 Enquire
17B610 LR030338
SEAL - WIPER MOTOR BRACKET
Motor - Rear Window Wiper / From: CA000001 		- 1 Enquire
17C526 DKG500011PMD
CAP - WIPER ARM
From: AA000001 		- 1 Enquire
17408A LR015360
HOSE - WINDSHIELD WASHER
From: AA000001 / To: AA247794 		- 1 Enquire
17408A LR023446
HOSE - WINDSHIELD WASHER
From: AA247795 / To: BA999999 		- 1 Enquire
17408A LR029600
HOSE - WINDSHIELD WASHER
From: CA000001 		- 1 Enquire
17408B LR015361
HOSE - WINDSHIELD WASHER
From: AA000001 		- 1 Enquire
17508 DLB500014
MOTOR - WIPER
Rear Window / From: AA000001 / To: BA701999 		- 1 Enquire
17508 LR029319
MOTOR - WIPER
Rear Window / From: BA702000 / To: BA999999 		- 1 Enquire
17508 LR029777
MOTOR - WIPER
Rear Window / From: CA000001 		- 1 Enquire
17526 DKB500720
ARM - WIPER
From: AA000001 		- 1 Enquire
17528 DKB500680
BLADE - WIPER
Rear Window / From: AA000001 		- 1 Enquire
17603 LR020166
JET
For Rear Window Washer, Includes Hose / From: AA000001 / To: BA703699 		- 1 Enquire
17603 LR031754
JET - REAR WINDOW WASHER
For Rear Window Washer, Includes Hose / From: BA703700 / To: BA999999 		- 1 Enquire
17603 LR032197
JET - REAR WINDOW WASHER
For Rear Window Washer, Includes Hose / From: CA000001 		- 1 Enquire
