Name: Side Panels - Inner (Front) ((V) FROMAA000001)
Rating: 4.5 (1 reviews)

View All

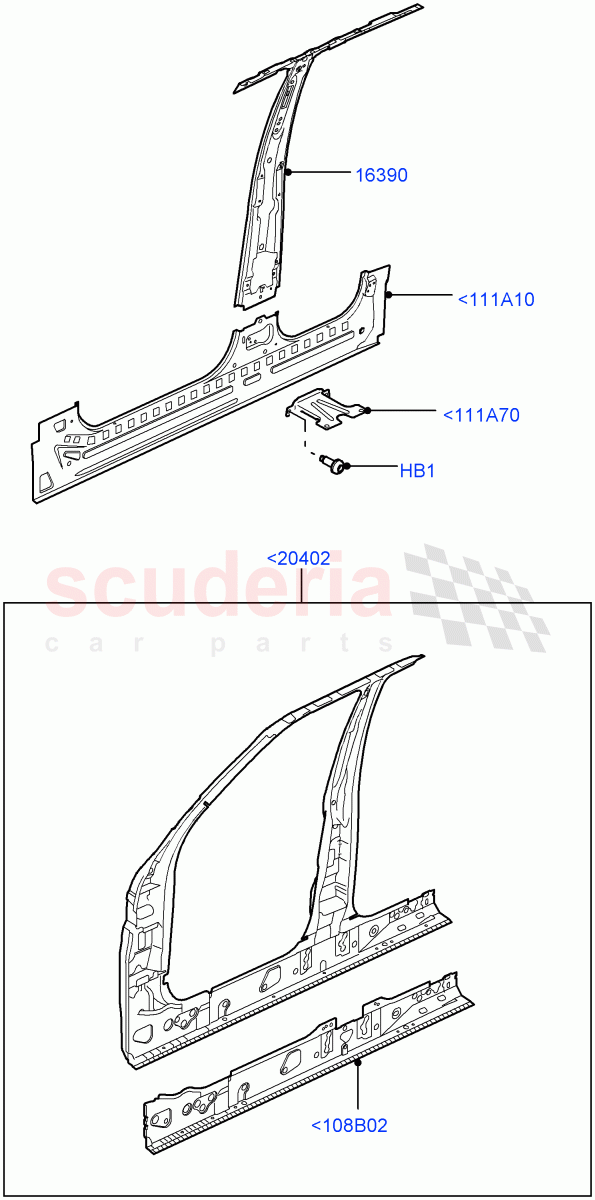

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2710	BOLT	$3.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ALR790540	REINFORCEMENT - BODY SIDE CENTRE	$701.54	To Order
	ALR790550	REINFORCEMENT - BODY SIDE CENTRE	$701.54	To Order

Photo	Part No	Description	Price (each)	Stock
	ADR780380	REINFORCEMENT - FLOOR	$8.37	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<108B02	ALR790520	REINFORCEMENT	ALR790520 REINFORCEMENT RH / From: AA000001	$36.89	1
<108B02	ALR790530	REINFORCEMENT	ALR790530 REINFORCEMENT LH / From: AA000001	$36.89	1
<111A10	LR017414	PANEL - SILL - INNER	LR017414 PANEL - SILL - INNER RH / From: AA000001	$82.09	1
<111A10	LR017413	PANEL - SILL - INNER	LR017413 PANEL - SILL - INNER LH / From: AA000001	$82.09	1
<111A70	ADR780380	REINFORCEMENT - FLOOR	ADR780380 REINFORCEMENT - FLOOR "B" Pillar, Located On Floor / From: AA000001	$8.37	2
<20402	ALR790540	REINFORCEMENT - BODY SIDE CENTRE	ALR790540 REINFORCEMENT - BODY SIDE CENTRE RH, Ringframe / From: AA000001	$701.54	1
<20402	ALR790550	REINFORCEMENT - BODY SIDE CENTRE	ALR790550 REINFORCEMENT - BODY SIDE CENTRE LH, Ringframe / From: AA000001	$701.54	1
HB1	BTR2710	BOLT IN STOCK	BTR2710 BOLT M10 X 1.5, Torx / From: AA000001 IN STOCK	$3.44	3
16390	AME790320	REINFORCEMENT - "B" PILLAR	AME790320 REINFORCEMENT - "B" PILLAR RH, "B" Pillar / From: AA000001	$586.34	1
16390	AME790330	REINFORCEMENT - "B" PILLAR	AME790330 REINFORCEMENT - "B" PILLAR LH, "B" Pillar / From: AA000001	$586.34	1

Side Panels - Inner (Front) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [5.0 OHC SGDI NA V8 Petrol]
