Air Vents, Louvres And Ducts (Internal Components) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]

Find Your Part

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] - Air Vents, Louvres And Ducts (Internal Components) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FYP500260 SCREW $0.74 To Order
Photo Part No Description Price (each) Stock
JKV500020 DUCT - AIR CONDITIONER $48.54 To Order
JKV500030 DUCT - AIR CONDITIONER $42.98 To Order
Photo Part No Description Price (each) Stock
JKB500300 DUCT - FOOT ROOM AIR $54.07 To Order
Photo Part No Description Price (each) Stock
JKB500310 DUCT - AIR CONDITIONER $56.03 To Order
JKB500460 DUCT - HEATER OUTLET $56.03 To Order
Photo Part No Description Price (each) Stock
LR013618 DUCT - AIR CONDITIONER $27.86 To Order
LR017551 DUCT - AIR CONDITIONER $31.63 To Order
Photo Part No Description Price (each) Stock
JKB500410 HOSE - AIR $54.03 To Order
JKB500450 DUCT - AIR $68.37 To Order
LR016906 DUCT - AIR $42.82 To Order
Photo Part No Description Price (each) Stock
JKB500420 HOSE - AIR $43.34 To Order
JKB000132 DUCT - AIR $68.37 To Order
LR016907 DUCT - AIR $42.82 To Order
Photo Part No Description Price (each) Stock
JKB500062 DUCT - AIR $55.15 To Order
Photo Part No Description Price (each) Stock
JKB500072 DUCT - AIR $55.15 To Order
Photo Part No Description Price (each) Stock
JBB500022 DUCT - AIR $56.96 To Order
View All

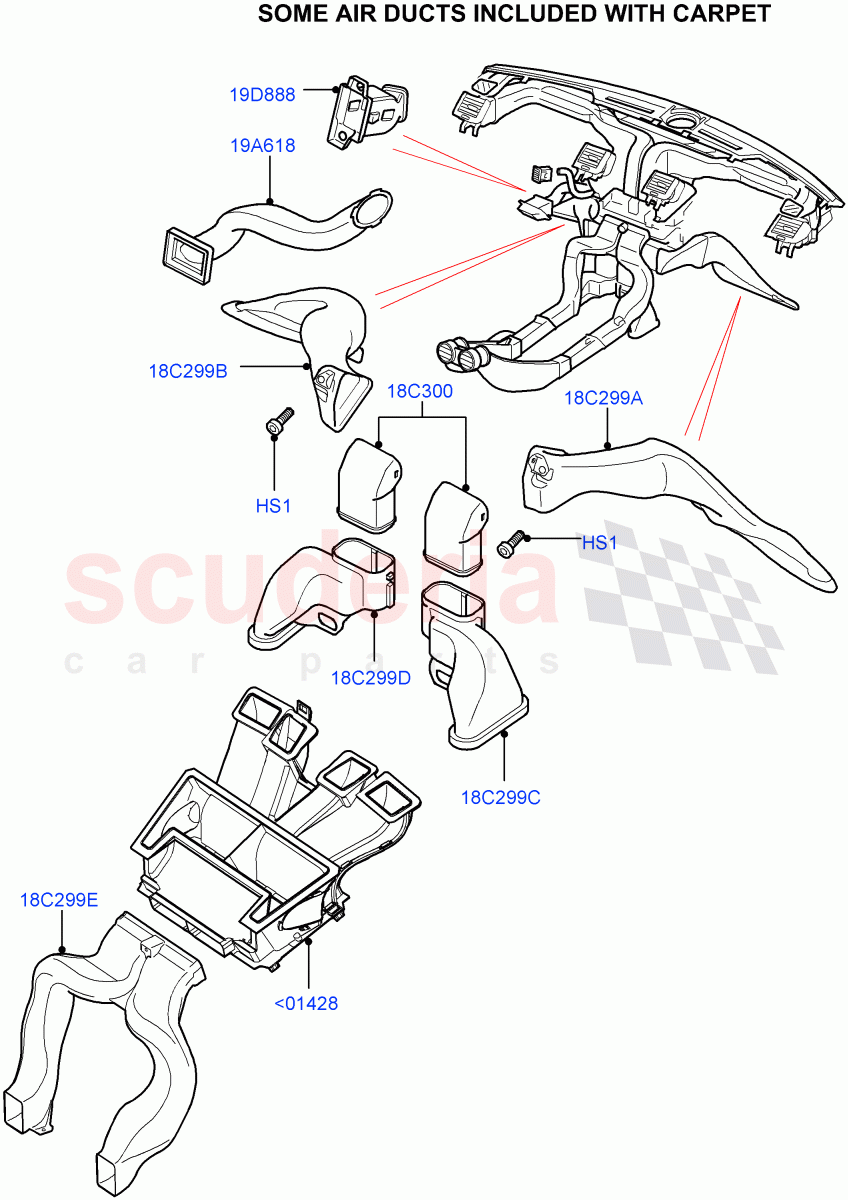

Air Vents, Louvres And Ducts (Internal Components) ((V) FROMAA000001) of Land Rover Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428 JKV500020
DUCT - AIR CONDITIONER
LHD / Heater and air conditioner air outlet, Upper / From: AA000001 		$48.54 1
<01428 JKV500030
DUCT - AIR CONDITIONER
RHD / Heater and air conditioner air outlet, Upper / From: AA000001 		$42.98 1
HS1 FYP500260
SCREW
Screw 4X14.5MM / From: AA000001 		$0.74 2
18C299A JKB500410
HOSE - AIR
LHD / RH / From: AA000001 		$54.03 1
18C299A JKB500450
DUCT - AIR
RHD / RH / From: AA000001 / To: AA230487 		$68.37 1
18C299A LR016906
DUCT - AIR
RHD / RH / From: AA230488 		$42.82 1
18C299B JKB500420
HOSE - AIR
RHD / LH / From: AA000001 		$43.34 1
18C299B JKB000132
DUCT - AIR
LHD / LH / From: AA000001 / To: AA230487 		$68.37 1
18C299B LR016907
DUCT - AIR
LHD / LH / From: AA230488 		$42.82 1
18C299C JKB500062
DUCT - AIR
RH / From: AA000001 		$55.15 1
18C299D JKB500072
DUCT - AIR
LH / From: AA000001 		$55.15 1
18C299E JBB500022
DUCT - AIR
From: AA000001 		$56.96 1
18C300 JKB500300
DUCT - FOOT ROOM AIR
From: AA000001 		$54.07 2
19A618 JKB500310
DUCT - AIR CONDITIONER
RHD / From: AA000001 		$56.03 1
19A618 JKB500460
DUCT - HEATER OUTLET
LHD / From: AA000001 		$56.03 1
19D888 LR013618
DUCT - AIR CONDITIONER
LHD / From: AA000001 		$27.86 1
19D888 LR017551
DUCT - AIR CONDITIONER
RHD / From: AA000001 		$31.63 1
