Find Your Part

View All

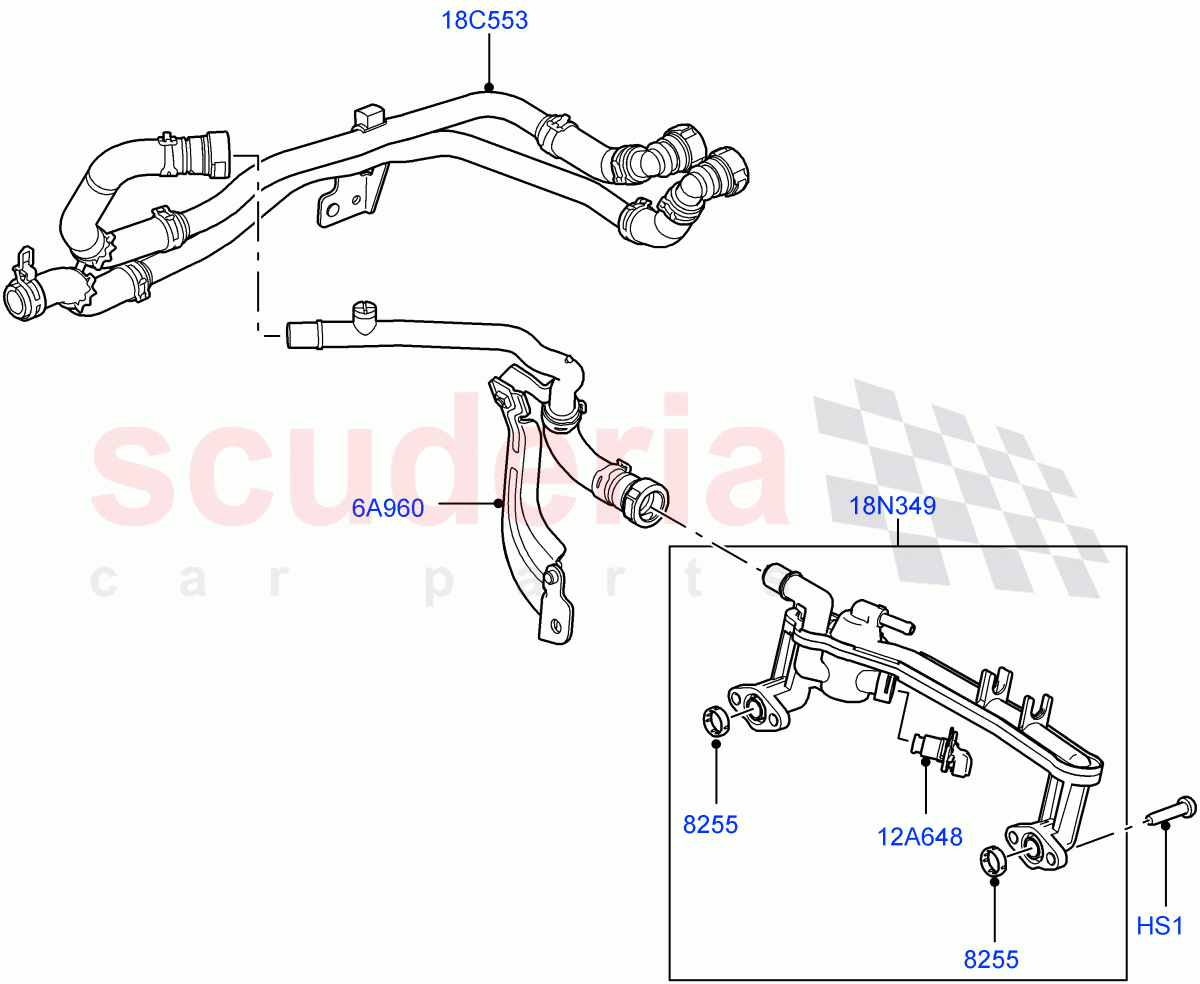

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013670	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122709	MANIFOLD - HEATER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, To Engine, Torx / From: AA000001	-	4	Enquire
6A960	LR017802	HOSE AND BRACKET	LR017802 HOSE AND BRACKET Includes Hose, To Engine, To Heater Hoses / From: AA000001 / To: CA737803	-	1	Enquire
6A960	LR031393	HOSE AND BRACKET	LR031393 HOSE AND BRACKET Includes Hose, To Engine, To Heater Hoses / From: CA737804	-	1	Enquire
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001 / To: CA999999	-	1	Enquire
18C553	LR013670	HOSE	LR013670 HOSE To Heater Hoses, To Heater Matrix / From: AA000001	-	1	Enquire
18N349	LR122709	MANIFOLD - HEATER	LR122709 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: AA000001	-	1	Enquire
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD To Engine / From: AA000001	-	2	Enquire
