View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1255708	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003602	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003341	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003520	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004318	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003339	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004320	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003521	KIT - EGR SYSTEM MODIFICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003335	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000241	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order
	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003336	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003338	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003337	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004319	O-RING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	1255708	SCREW	1255708 SCREW M6 X 20MM / From: AA000001	-	4	Enquire
HX1	LR003602	RETAINER	LR003602 RETAINER Clip, Coolant Temperature Sensor / From: AA000001	-	1	Enquire
8A586	LR004318	CONNECTION - WATER OUTLET	LR004318 CONNECTION - WATER OUTLET From: AA000001	-	1	Enquire
8B574A	LR003336	SEAL	LR003336 SEAL Cover, Thermostat Assy / From: AA000001	-	1	Enquire
8B574B	LR003338	SEAL	LR003338 SEAL Thermostat Assy / From: AA000001	-	1	Enquire
8B574C	LR003337	SEAL	LR003337 SEAL Coolant Temperature Sensor / From: AA000001	-	1	Enquire
8B574D	LR004319	O-RING	LR004319 O-RING Thermostat Housing / From: AA000001	-	1	Enquire
8B575	LR003339	RETAINER	LR003339 RETAINER EGR Valve / From: AA000001	-	1	Enquire
8K507	LR004320	HOSE	LR004320 HOSE From: AA000001	-	1	Enquire
9J460	LR003521	KIT - EGR SYSTEM MODIFICATION	LR003521 KIT - EGR SYSTEM MODIFICATION EGR Valve, Service Kit / From: AA000001	-	1	Enquire
9U479	LR003335	VALVE	LR003335 VALVE EGR Valve / From: AA000001	-	1	Enquire
12A648	LR000241	SENSOR - ENGINE COOLANT TEMPERATURE	LR000241 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001 / To: CA999999	-	1	Enquire
12A648	LR044930	SENSOR - ENGINE COOLANT TEMPERATURE	LR044930 SENSOR - ENGINE COOLANT TEMPERATURE From: DA000001	-	1	Enquire
8575A	LR003341	THERMOSTAT	LR003341 THERMOSTAT From: AA000001	-	1	Enquire
8575B	LR003520	THERMOSTAT	LR003520 THERMOSTAT Service Kit / From: AA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

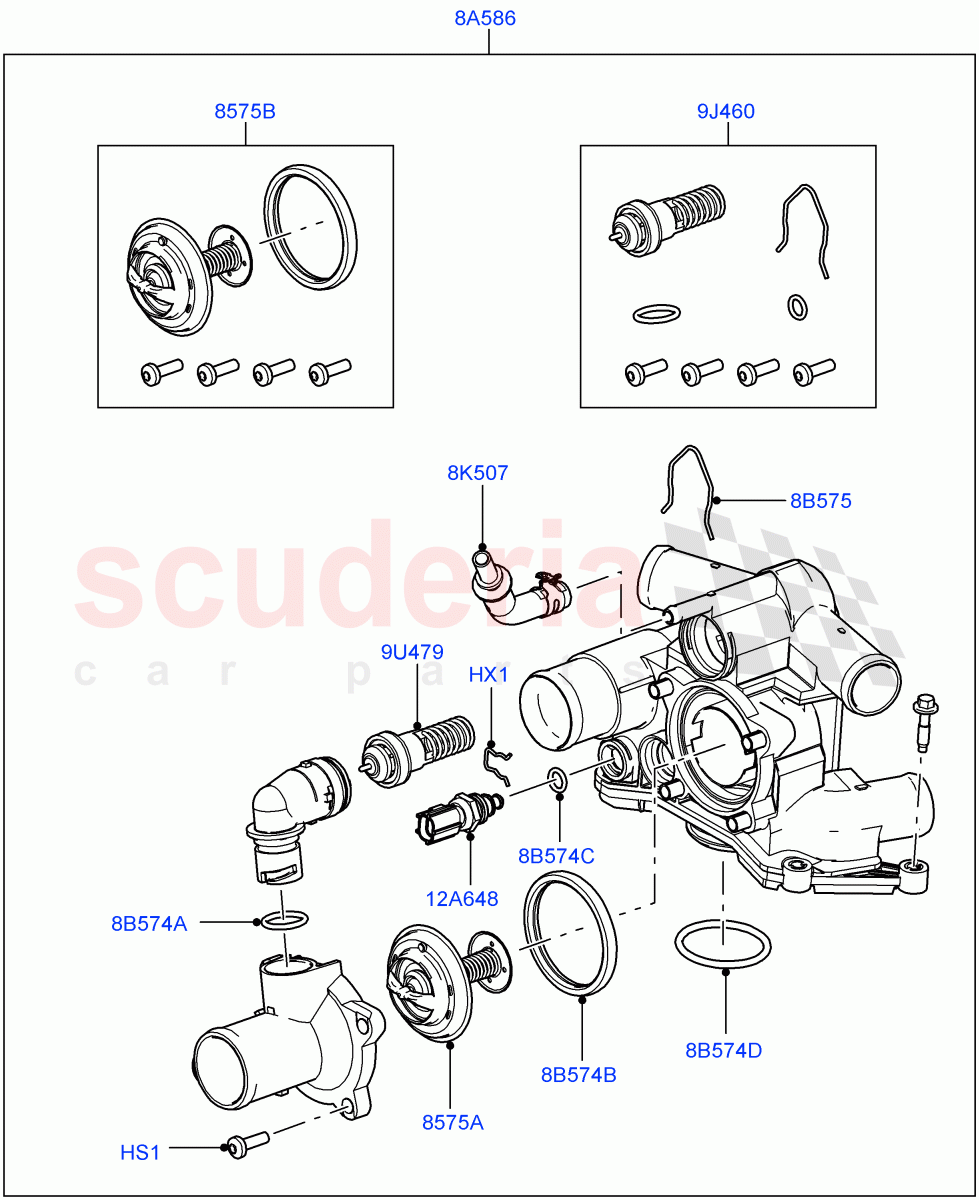

Thermostat/Housing & Related Parts (3.6L V8 32V Dohc Efi Diesel Lion) ((V) Fromaa000001)

Land Rover Range Rover Sport (2010-2013) [3.6 V8 32V DOHC EFI Diesel]
